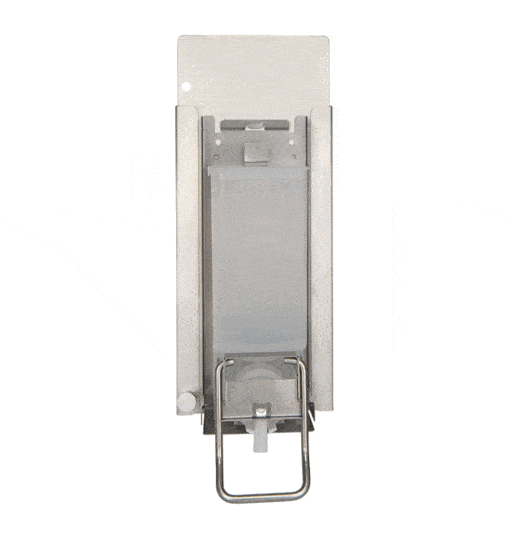

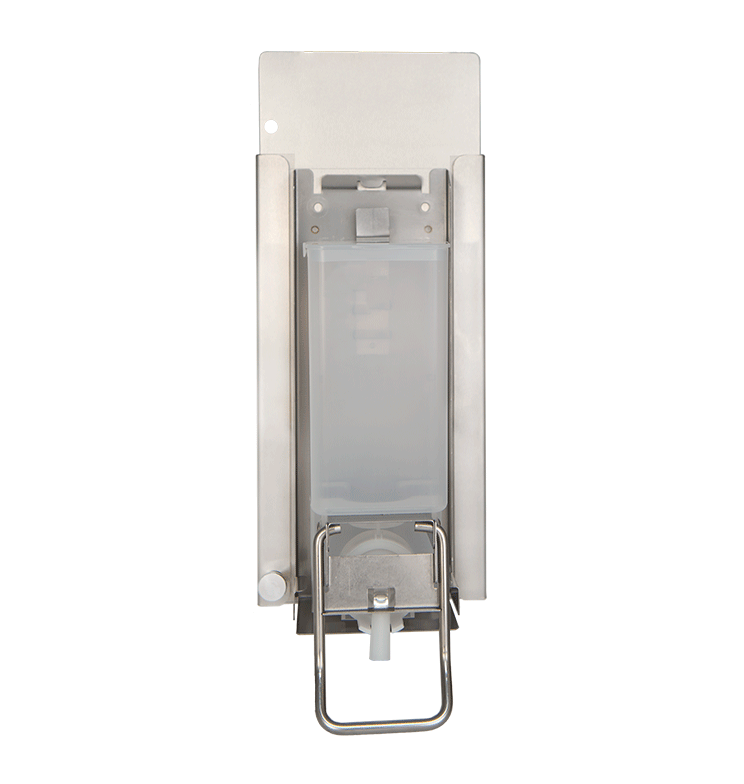

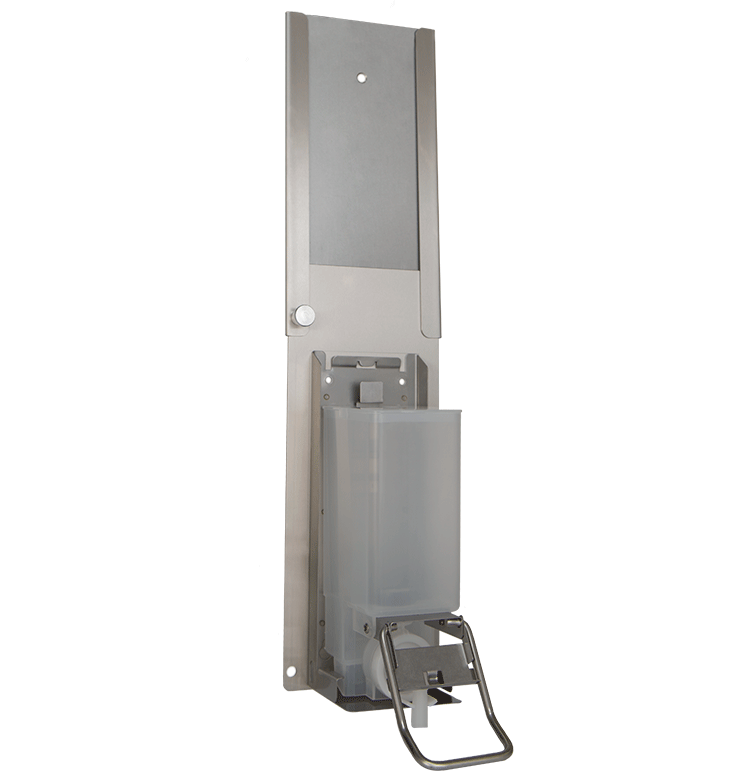

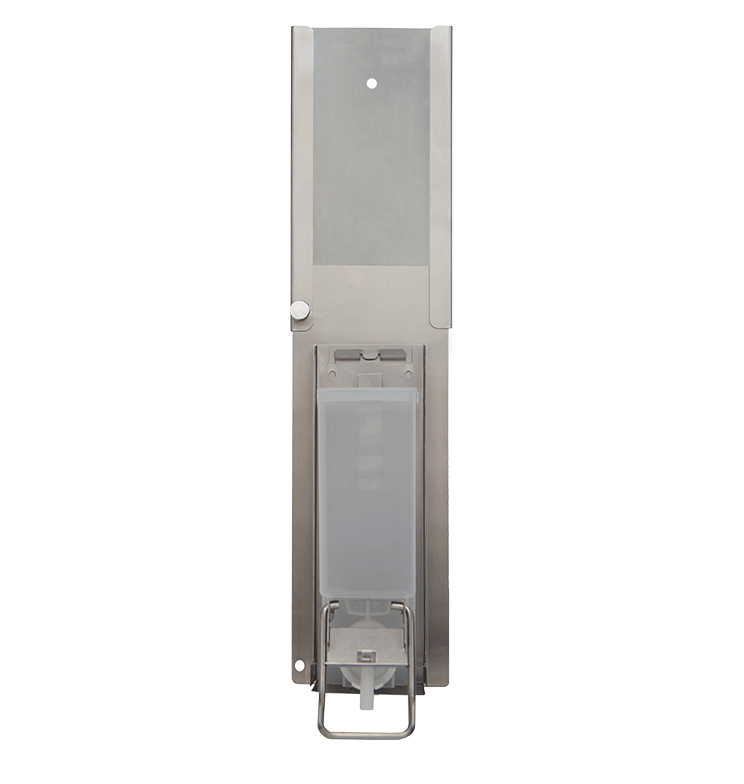

Disinfectant dispenser for rear mirror mounting, with lift module, A-295-114D-05

Disinfectant dispenser for rear mirror mounting with extra flat lift module:

• Soap, foam or disinfectant dispenser for installation behind a fixed mirror
• Extra thin mounting rail enables space-saving installation.
• the mounting plate is placed behind the mirror and fixed with 2 SK screws.
• In the end position, the locking mechanism engages and holds the dispenser in position.
• To refill, pull the locking button forwards and guide the soap dispenser downwards until it locks into place again.
• The soap tank can be filled freely (common cartridges/Eurobottles or canister filling)
• Inner container removable for filling or cleaning
• Dosing quantity approx. 1.0 ml/stroke
• Soap tank: 0.6 litre

• Top edge of washbasin to lower edge of mirror = min. 340 mm
• Installation depth min. 120 mm

Advantages at a glance:

	invisible behind the mirror
	Extra flat lift module for minimum space requirement

Files and downloads:
