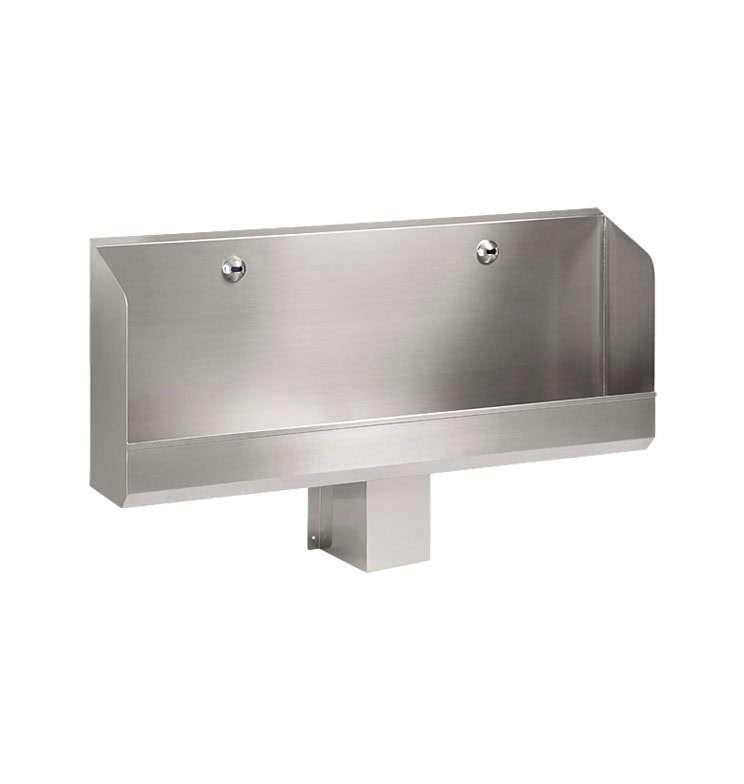

Wall-mounted urinal trough with integrated infrared control, 24 V

With 1-4 flushing heads
Vandal-proof construction
Touchless flush activation
Automatic hygienic flush after 24 hours of inactivity

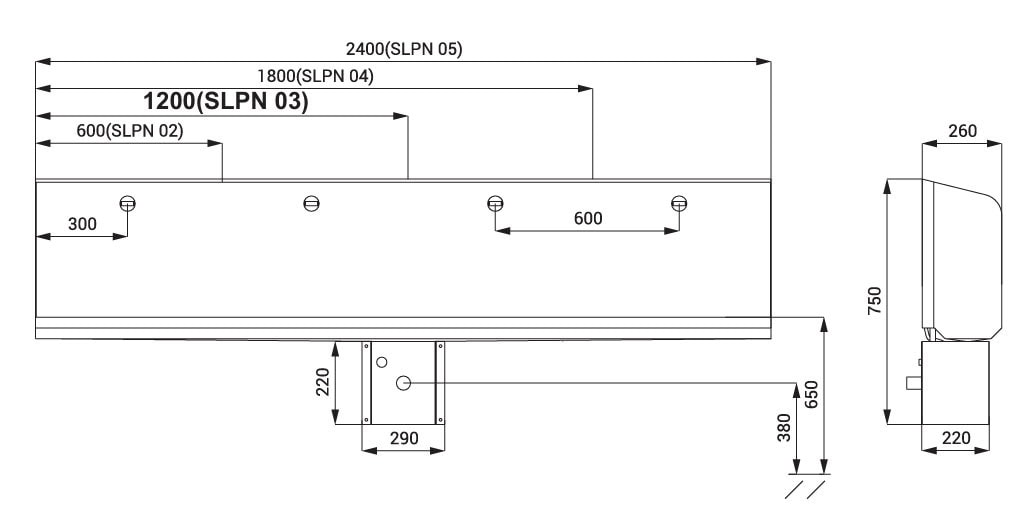

Dimensions: Standard length 600 / 1200 / 1800 / 2400 mm (custom lengths available upon request)
Each flushing head detects a user within a maximum range of 70 cm and a dwell time of at least 7.5 seconds
Flush time individually adjustable from 0.5 to 15.5 seconds
Usage parameters can be adjusted with the SLD03 remote control (optional)
Material: Stainless steel AISI 304
Material thickness: 1.5 mm (side walls 2.0 mm)
Surface: Satin-finished
Operating voltage: 24 V
Power supply: Electro-transformer (24V DC)
Water outlet: Ø 40 mm
Flow rate: 12l/min per flushing head
Water inlet: External thread G 1/2"

Height: 800 mm
Depth: 260 mm

Scope of delivery:
Urinal trough with integrated flushing head and electronics, electromagnetic valve, corner valve with filter, connection hose, mounting kit, siphon cover, siphon
