Urinal flushing system with PIEZO activation (vandal-proof), 24V

Technical Specifications:
- Product Type: Piezo urinal flushing system
- Material: Stainless steel AISI 304
- Surface: Matt brushed
- Power supply: 24 V DC
- Power consumption: 7 W
- Recommended flow pressure: 0.1 - 0.6 MPa
- Flow rate: 18 l/min
- Water inlet: External thread G 3/4"
- Water outlet: External thread G 3/4"
- Flushing time: Adjustable from 0.5 to 15.5 seconds (standard 4 s)

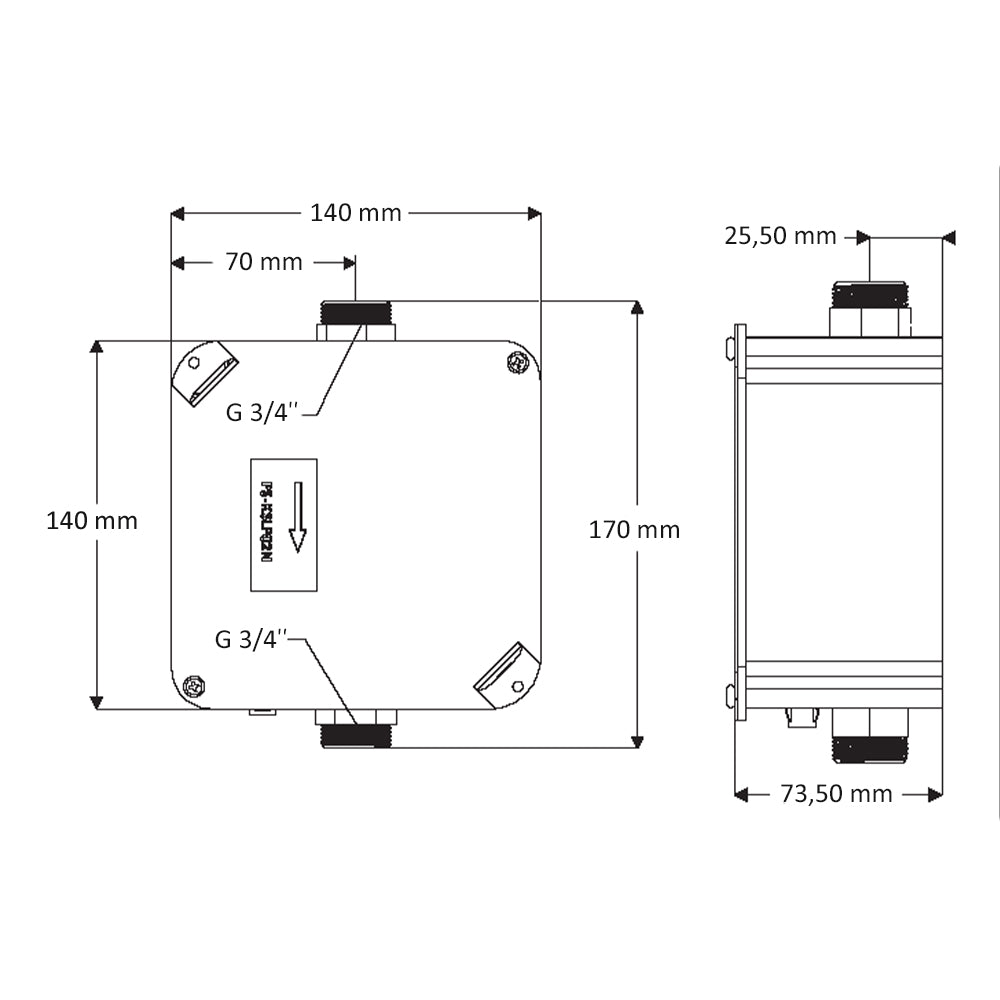

Dimensions:
- Stainless steel cover plate: 160 x 170 x 3 mm
- Concealed mounting box: 140 x 140 x 75 mm

Vandal-proof urinal flushing system in a robust design, specially developed for use in correctional facilities and public sanitary areas
High-quality stainless steel cover plate with a material thickness of 3 mm for maximum protection against mechanical impacts
Hygienic activation of water flow by light pressure on the integrated piezo button with no moving mechanical parts
Flexible adjustment of flushing time between 0.5 and 15.5 seconds to optimize water consumption
Integrated automatic hygienic flush after 24 hours of non-use to prevent stagnant water and odor formation
Easy regulation of water flow directly on the device via the integrated ball valve
Secure fastening of the cover plate with four special TORX security screws to prevent unauthorized removal
Individual adjustment of operating parameters conveniently possible via the optional remote control SLD 04 (optional)
Durable construction made of high-quality AISI 304 stainless steel with an easy-to-clean matt brushed surface
Complete set including concealed mounting box with brass fittings and solenoid valve for reliable installation

Scope of delivery:
- Stainless steel cover plate with integrated piezo electronics
- Plastic concealed mounting box with brass fittings
- Solenoid valve and integrated ball valve
- Set of TORX security screws (4 pieces)
