• ASA-SLU 57B

SANELA | ASA-SLU 57B

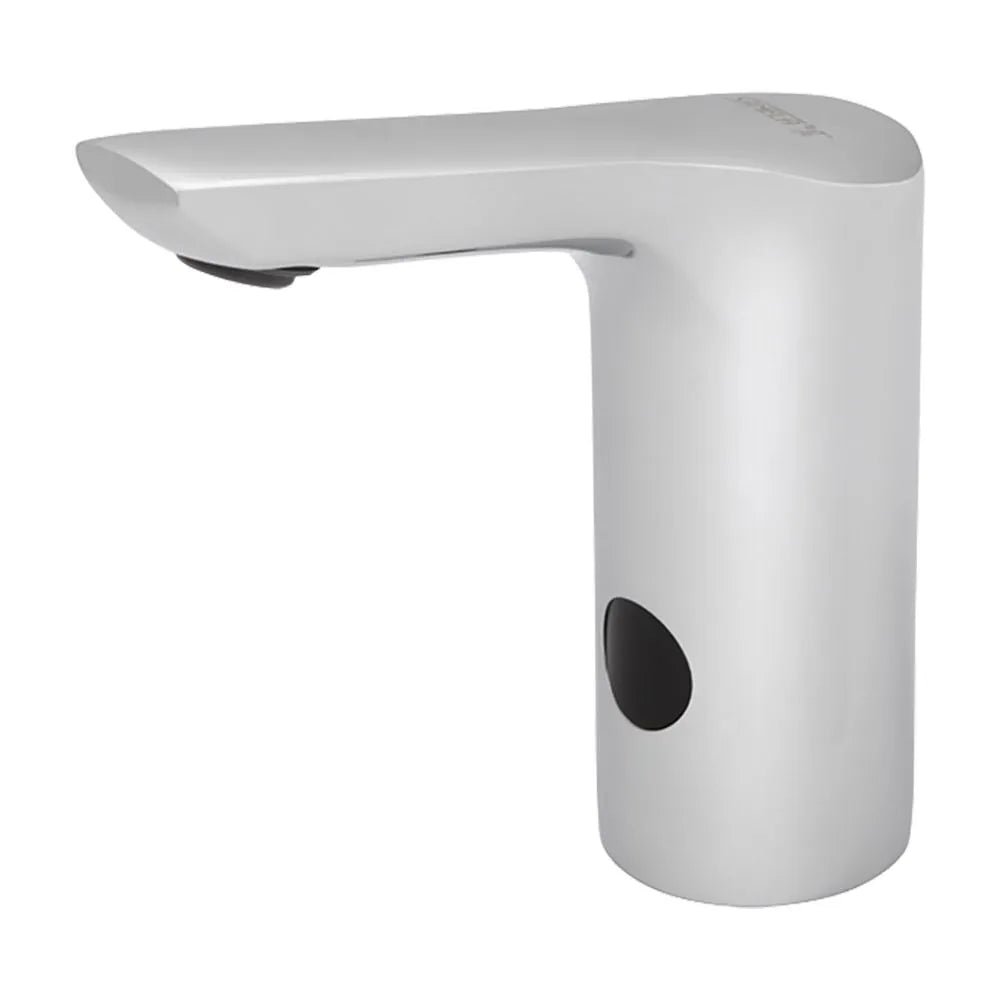

Countertop tap for cold or premixed water, 6V

Countertop tap for cold or premixed water, 6V

Awaiting stock, shipping soon
CHF 388.00
CHF 388.00
plus VAT | Shipping calculated at checkout.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ASA-SLU 57B

Downloads

Datasheet

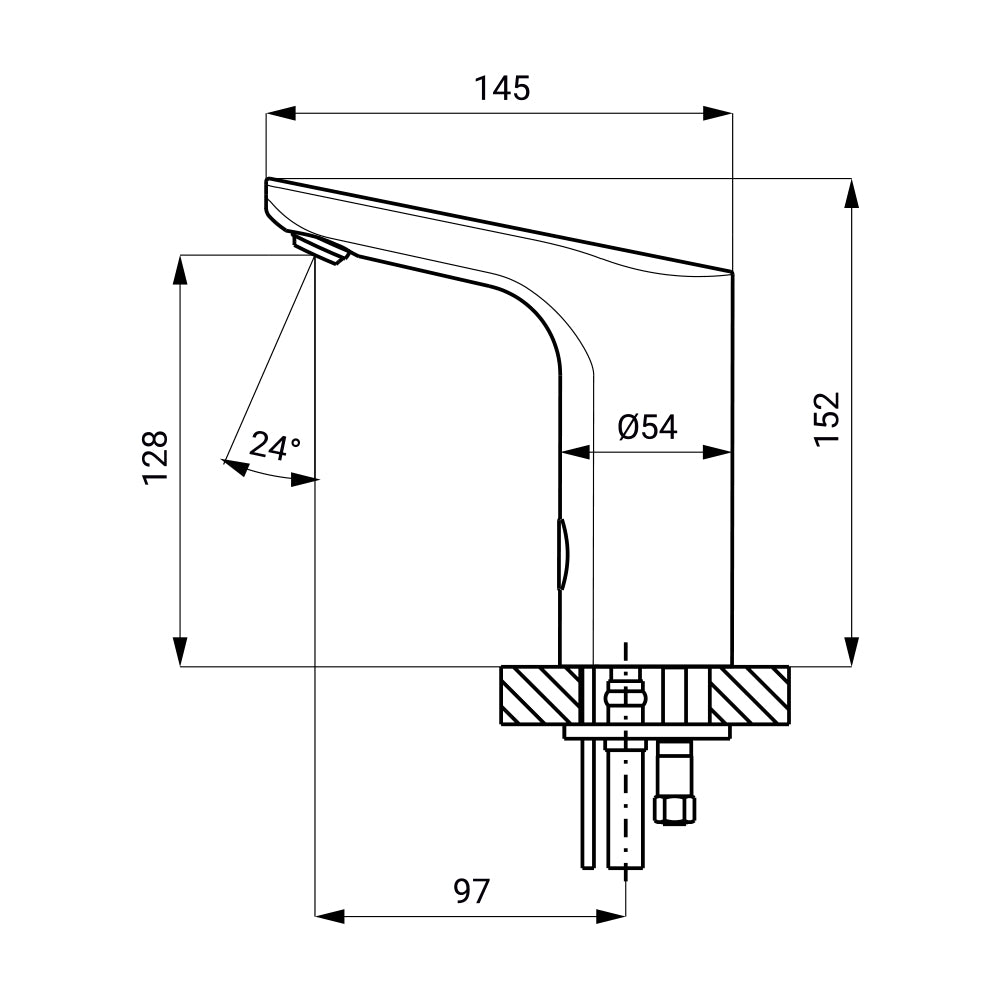

Technical Drawing
Assembly Instructions

Description

- Including Bluetooth control (Sanela Control App available for download - fee applies)
- Flow restrictor, flow rate 6 l/min.
- Hygiene flush
- Basin faucet with hot and cold water connection, temperature regulation via angle valves
- Water flows as long as hands are within the active sensor range
- Water flow stops after hands are removed from the active sensor range (run-on time adjustable from 0.25 sec. to 7.75 sec.)
- Forced shut-off of water flow after approx. 5 minutes
- Battery status indicator
- START/STOP program activatable
- Parameterization and communication with the electronics via the Sanela Control App (Bluetooth) or the SLD 03 remote control

Technical details:
- Dimensions: 152 x 145 mm
- Weight: 1.86 kg
- Operating voltage: 6 V
- Power consumption: 3 W
- Battery life: alkaline battery (4 pcs.) AA type 1.5 V/2700 mAh (approx. 2 years with 100 uses daily)
- Active range: Standard 0.13 - 0.19 m, START/STOP, Program 0.05 - 0.15 m
- Recommended water pressure: 0.1 - 0.6 MPa
- Flow rate: 6 l/min. (with data)
- Water inlet: External thread G 1/2"

Scope of delivery: Basin faucet with electronics including Bluetooth module, solenoid valve (1 pc.), Y-piece, connection hose, angle valve with filter and backflow preventer (2 pcs.), 4 pcs. alkaline battery AA type 1.5 V/2700 mAh with battery holder
