Product Description
The Mediclinics DJ0037A is a high-quality, automatic liquid soap dispenser designed for wall mounting – hygienic, robust, and engineered for high-traffic washroom facilities. Thanks to its touch-free infrared sensor, it dispenses precisely 1.5 ml of soap per use, without any contact with the device. The AISI 304 stainless steel housing (0.8 mm) is durable, corrosion-resistant, and easy to clean – available in four finishes that harmoniously integrate into any room concept.
With a capacity of 1 liter and a clearly visible fill level indicator on the front, the DJ0037A is ideal for office buildings, hotels, restaurants, hospitals, shopping centers, and public institutions. The hinged cover allows for quick, easy top-refilling during operation, without special tools.
Product Features at a Glance
Touch-free soap dispensing via infrared sensor, hand detection range 5 cm
1.5 ml of soap per activation – metered and economical
Capacity 1 liter, fill level indicator visible on the front
Drip-proof, corrosion-resistant valve
AISI 304 stainless steel housing, 0.8 mm – robust and easy to clean
Removable plastic inner tank (2.5 mm) for easy cleaning and disinfection
Hinged cover, top-refilling with included Mediclinics key
Power supply: 6 AA alkaline batteries (not included) or optional power adapter (order no. DJ0037A/C/CS-TRAFO)
Mounting screws stainless steel Ø 4 mm and plastic anchors Ø 6 mm included
Suitable for liquid soaps with neutral pH, chlorine-free, density 0.9–1.35 kg/dm³, max. 80% alcohol

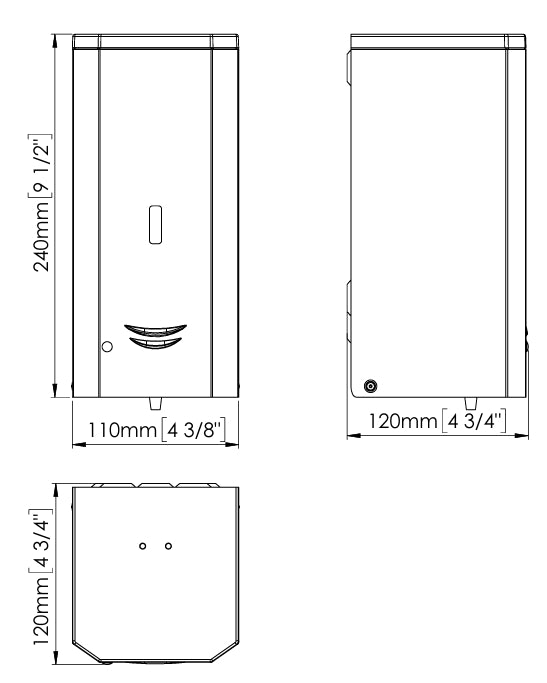

Dimensions: 240 × 110 × 120 mm | Net weight: 1.25 kg
The Mediclinics DJ0037Ais an automatic liquid soap dispenser made of AISI 304 stainless steel, 0.8 mm thick, 1.0 liter capacity, infrared sensor – touch-free operation, for high-traffic public areas.
Advantages
Touch-free infrared sensor – reduces germ transmission during hand washing.
1.5 ml per dose – economical, controlled consumption.
Replaceable inner container – removable for cleaning, also refillable directly from the top.
Sight glass on the front – fill level visible without opening.
Pin tumbler lock with pin key – secured access.
Operates with 6 × AA batteries or optional power adapter (DJ0037A-TRAFO) – flexible installation without power connection.
Suitable for liquid soap, disinfectant gel, lotion, and cream (max. 80% alcohol, viscosity 500–2500 cP).
Dimensions: H 240 × W 110 × D 120 mm – slim format, identical to manual DJ0031.
