MediClinics

New Soap dispenser,foam, automatic, 1L, AISI 304 stainless steel, black epoxy

New Soap dispenser,foam, automatic, 1L, AISI 304 stainless steel, black epoxy

Awaiting stock, shipping soon
CHF 238.00
CHF 238.00
plus VAT | Shipping calculated at checkout.
surface

Pay securely with

Twint PayPal Visa Maestro American Express Apple Pay Generic

AME-DJF0038AB

Downloads

Datasheet

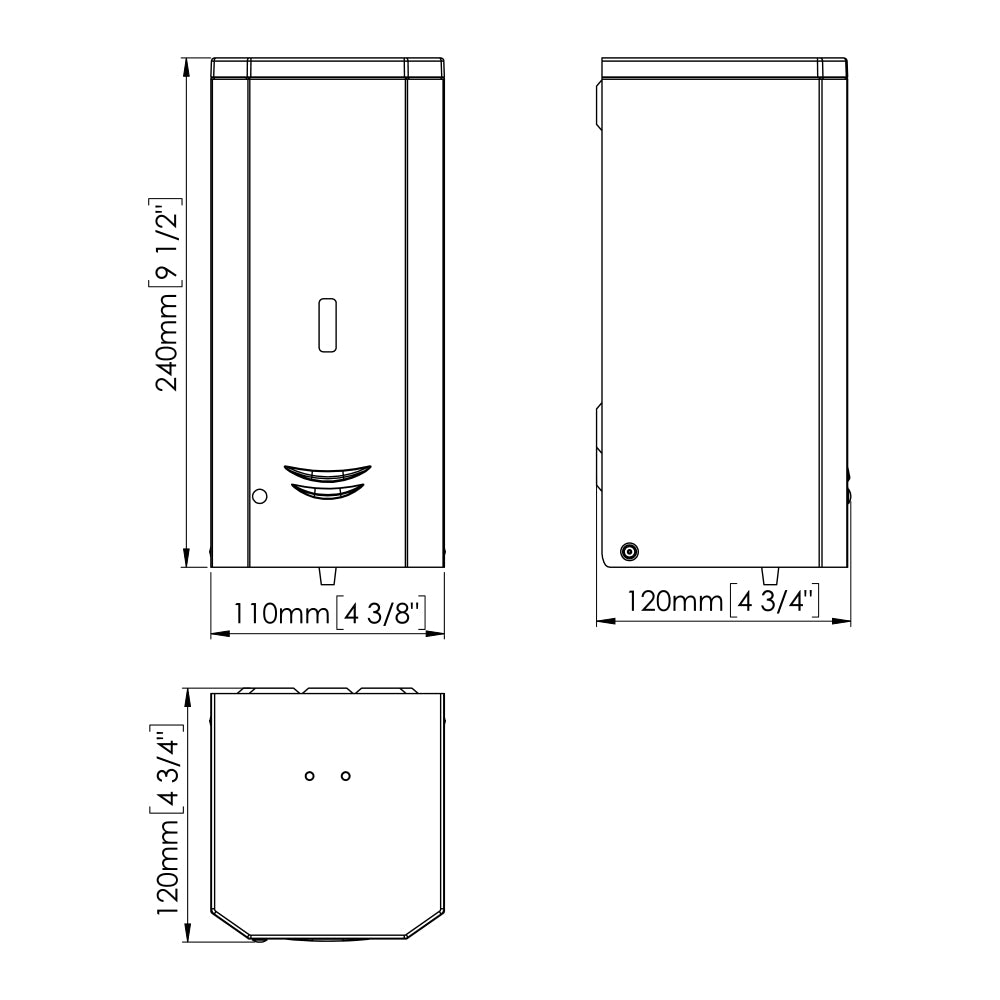

Technical drawing
spare parts

Product features

How it works
  • electronic

power supply
  • Battery operated

Mounting type
  • Wall mounting / Surface mounting

Tank contents
  • 0.5 - 1 liter

material
  • Stainless steel
  • Steel

Soap type
  • Foaming soap

Color
  • Stainless Steel, high-gloss polished
  • Stainless Steel, matt/satin
  • Black
  • White

Description

• Automatic wall-mounted foam soap dispenser made of AISI 304 stainless steel, 0.8 mm thick and with a total capacity of 1 liter. Available in four different finishes (white, black, glossy and satin).
• Its functional, robust, and modern design perfectly complements Mediclinics' new range of washroom and bathroom accessories. This soap dispenser blends seamlessly into any room.
• The soap dispensers are suitable for high-traffic facilities and public use.
• Operates on 6 AA alkaline batteries (not included) or optionally with an AC adapter. The automatic soap dispenser, which can be connected to the mains power supply, is available under order number DJF0038A/B/C/CS-TRAFO.
• It is recommended to use foaming soaps with the following properties:
- Maximum alcohol content of 80%
- Density between 0.95 and 1.05 kg/dm3
- Use special foam products
Not suitable for foaming soaps containing methanol, chlorine, or solid or abrasive particles.
• The screws and plastic dowels required for mounting to a wall are included in the scope of delivery.


Components and materials

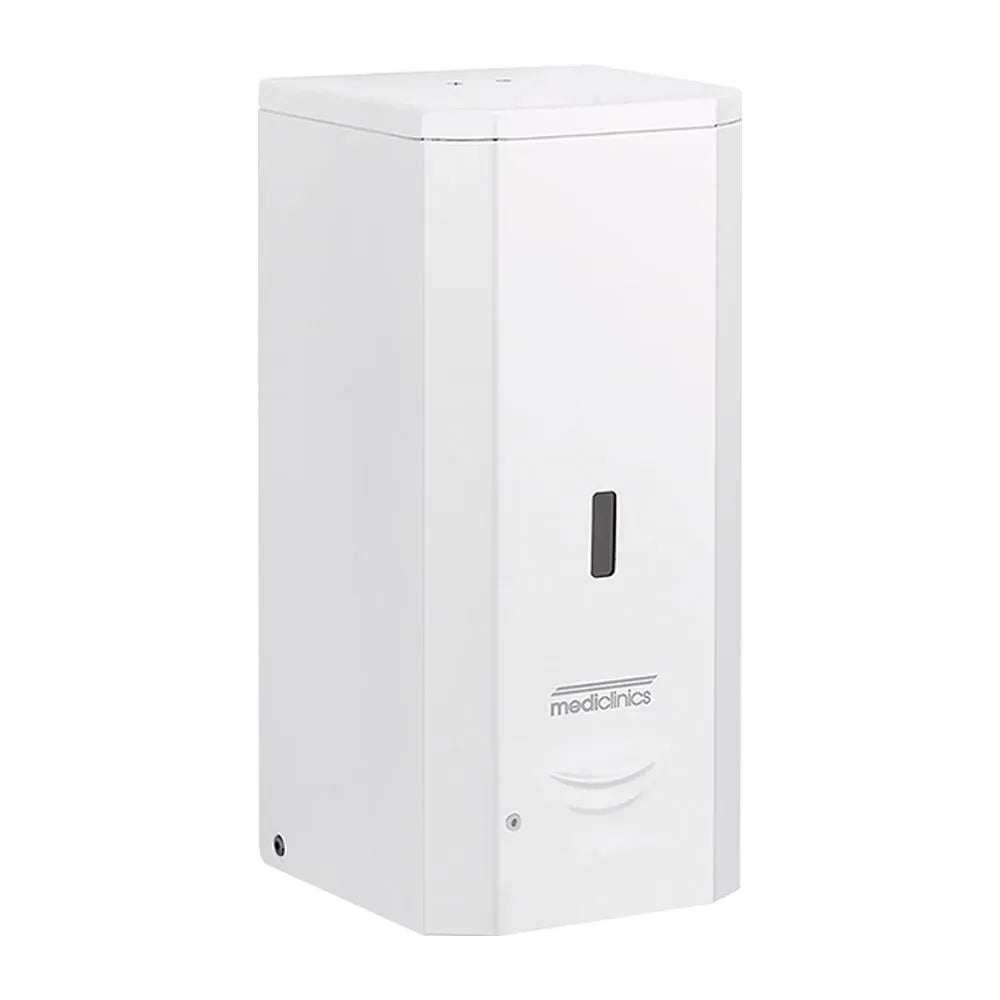

• DJF0038A: Stainless steel AISI 304, white epoxy.

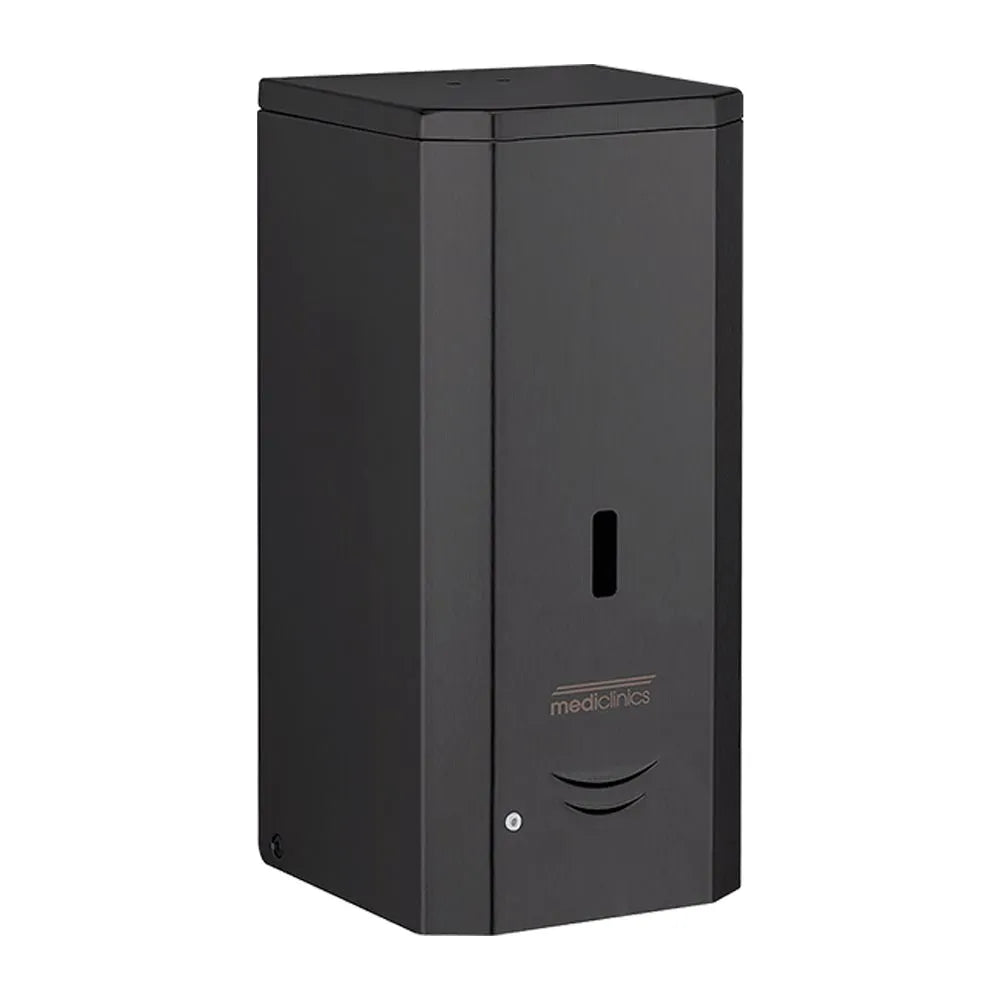

• DJF0038AB: Stainless steel AISI 304, matte black epoxy.

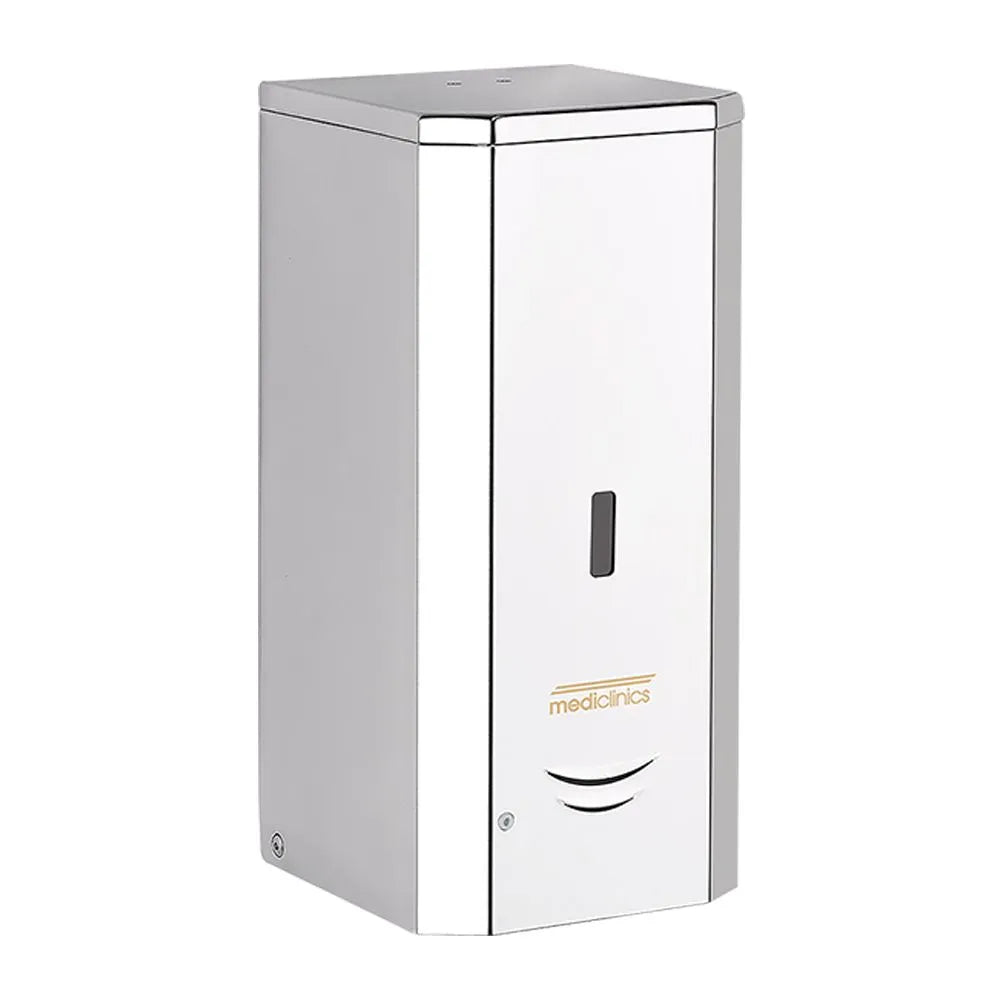

• DJF0038AC: Stainless steel AISI 304, polished.

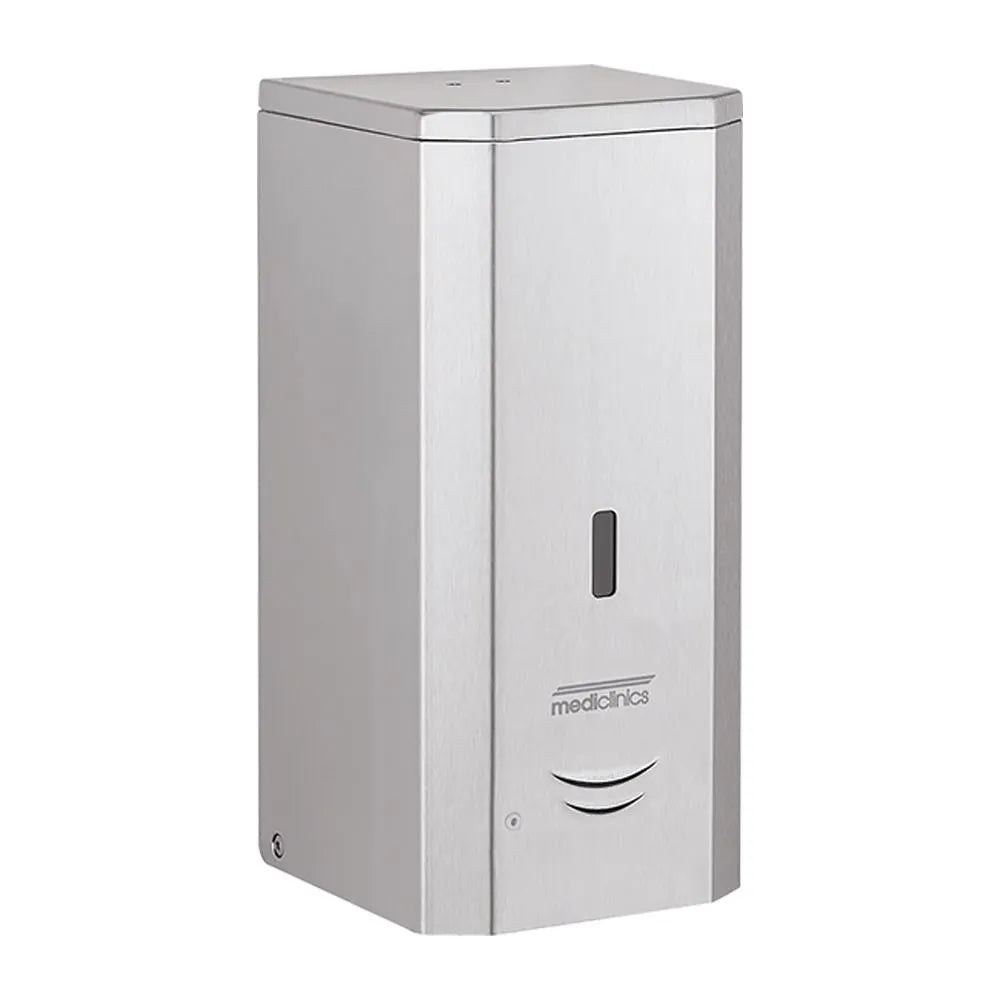

• DJF0038ACS: Stainless steel AISI 304, satin finish.
• COVER: made of AISI 304 stainless steel, 0.8 mm thick.
• WALL PLATE: made of AISI 304 stainless steel, 0.8 mm thick. The
Wall mounting is achieved using four stainless steel screws with a diameter of 4 mm (included in the scope of delivery) and the corresponding mounting hardware.
Plastic dowels with a diameter of 6 mm (also included in the scope of delivery).
• INTERNAL PLASTIC TANK: prevents oxidation and can be easily removed for cleaning and disinfection.
• INFRARED DETECTION: with a hand detection range of 5 cm.
• VALVE: Drip-proof and corrosion-resistant valve that dispenses 1.0 ml of soap per actuation. This anti-drip valve for dispensing foam soap is easily interchangeable with the valves of other soap dispensers in the same series.
• FOLDABLE COVER: for ease of use and speed of servicing. Opening on the top with included Mediclinics key for refilling soap.
• POWER: 6 AA alkaline batteries (not included) or optional AC adapter. The automatic soap dispenser, which is compatible with the electric version, is available under order number DJF0038A/B/C/CS-TRAFO.


Der Mediclinics DJF0038A ist ein automatischer Schaumseifenspender aus Edelstahl AISI 304 mit Infrarotsensor, 1000 ml Kapazität, berührungsloser Betrieb – hygienisch, sparsam im Verbrauch und zu einem sehr guten Preis-Leistungs-Verhältnis.

Vorteile

  • Schaumseife statt Flüssigseife: pro Dosierung nur ca. 0,4 g Seife (gegenüber 1–1,5 g bei Flüssigseifenspendern) – deutlich wirtschaftlicher im Verbrauch.
  • Berührungsloser Infrarotsensor (Erkennungsbereich 5 cm) – reduziert Kreuzkontamination beim Händewaschen.
  • Anti-Tropf-Ventil, 1,0 ml pro Dosierung – kein Tropfen, kein Verschmutzen der Ablage.
  • Herausnehmbarer Kunststoff-Innentank (Polypropylen) – einfach zu reinigen und zu desinfizieren.
  • Nachfüllbar von oben oder Tank austauschbar – schnelles Auffüllen ohne Werkzeug.
  • Frontales Sichtfenster für Füllstandskontrolle.
  • Betrieb mit 6 AA-Batterien oder optional mit Netzadapter (Bestellnummer DJF0038A-TRAFO).
  • Stiftschloss mit Stiftschlüssel – gesicherter Zugang.
  • 4 Oberflächen ab Lager: Weiss matt, Schwarz matt, Edelstahl satiniert, Edelstahl poliert.

Einschränkungen

  • Batterien nicht im Lieferumfang (6 × AA).
  • Netzadapter separat zu bestellen (DJF0038A-TRAFO).
  • Stiftschloss: weniger vandalismusresistent als Zylinderschloss – für Hochrisiko-Standorte weniger geeignet.
  • Nur für Schaumseifen geeignet (max. 80 % Alkohol, Dichte 0,95–1,05 kg/dm³) – kein Gel oder Flüssigseife ohne Ventiltausch.

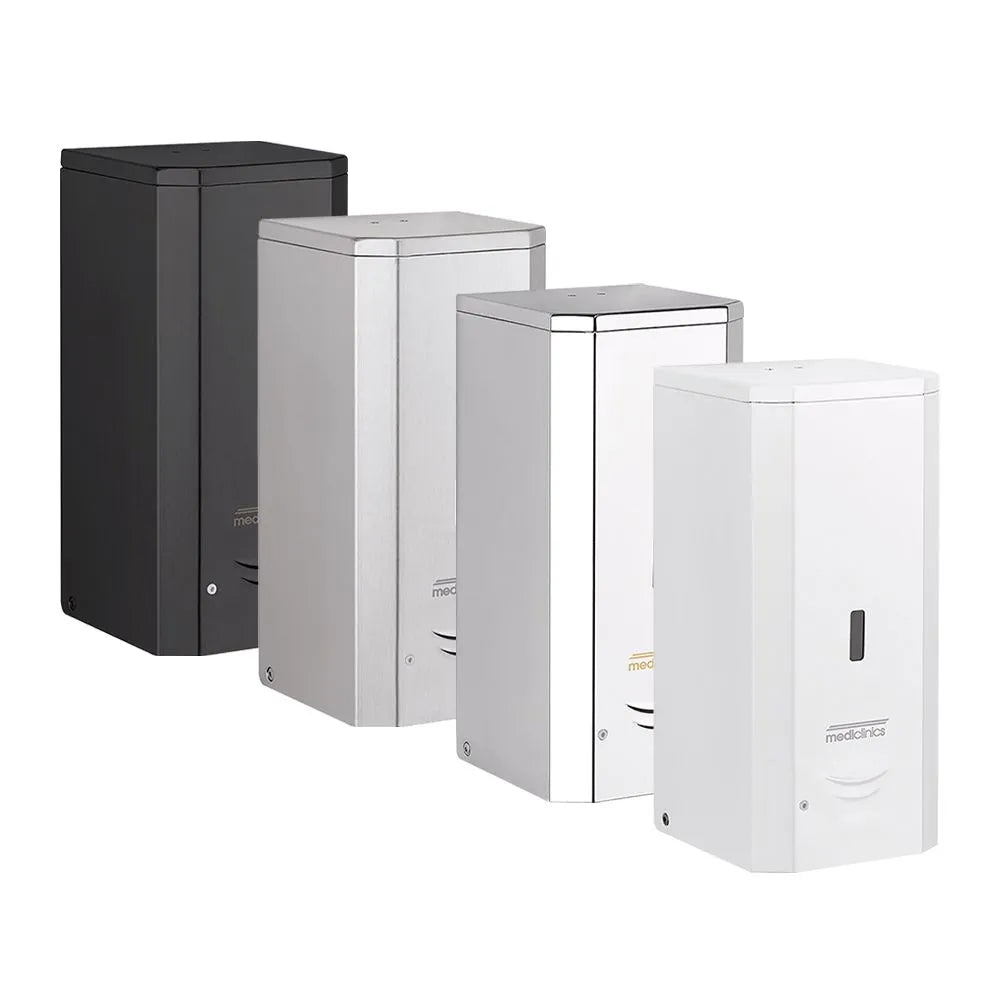

Variantenvergleich

  • AME-DJF0038A – Weiss matt.
  • AME-DJF0038AB – Schwarz matt.
  • AME-DJF0038ACS – Edelstahl satiniert.
  • AME-DJF0038AC – Edelstahl poliert. Hochglänzend, zeigt Fingerabdrücke deutlicher.

Verbrauchsmaterial

Schaumseife ECO FRESH (Seife 5) – passend für diesen Spender, bei Armatron erhältlich.
