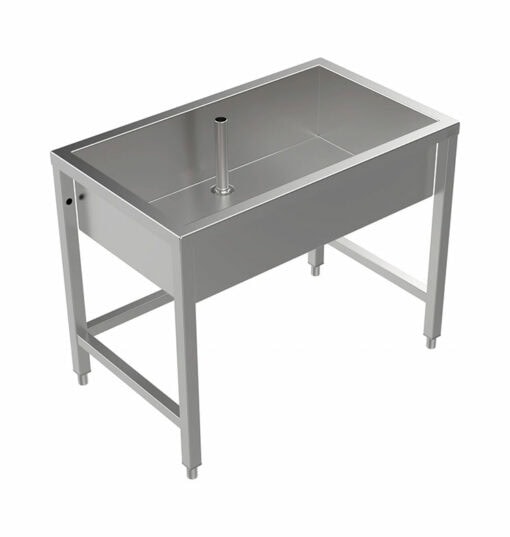

For floor mounting with a stand
made of stainless steel material no. 1.4301, material thickness 1.5 mm,
folded and welded construction,
consisting of:
1 basin with an all-around rim of 45mm and a 40mm downward fold
Basin bottom with integrated slope towards the drain at the rear center,
1 self-sealing standpipe valve 1 ½“ made of stainless steel
1 substructure as a welded stainless steel construction
consisting of 4 feet made of square tube 40/40/1.5
with leveling feet, leveling range +/-15 mm
as well as a brace running around under the basin rim and a lower 3-sided brace made of
square tube 35/35/1.5mm,
with wall distance protection

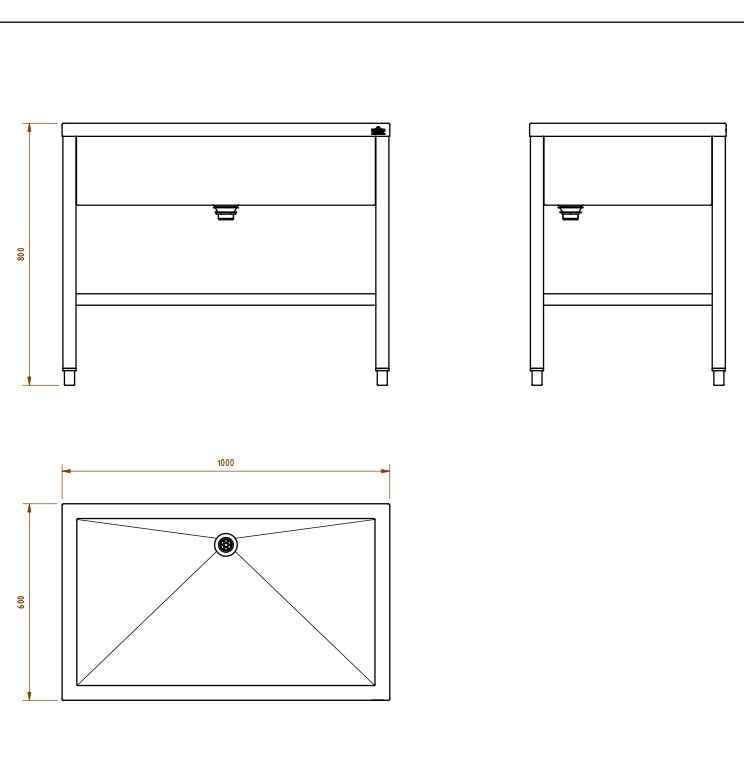

Total height: 800 mm
Dimensions: 910 x 250 x 510 mm basin interior (WxHxD)
Dimensions: 1000 x 250 x 600 mm basin exterior (WxHxD)
