Armatron AG | ADR-3504180053

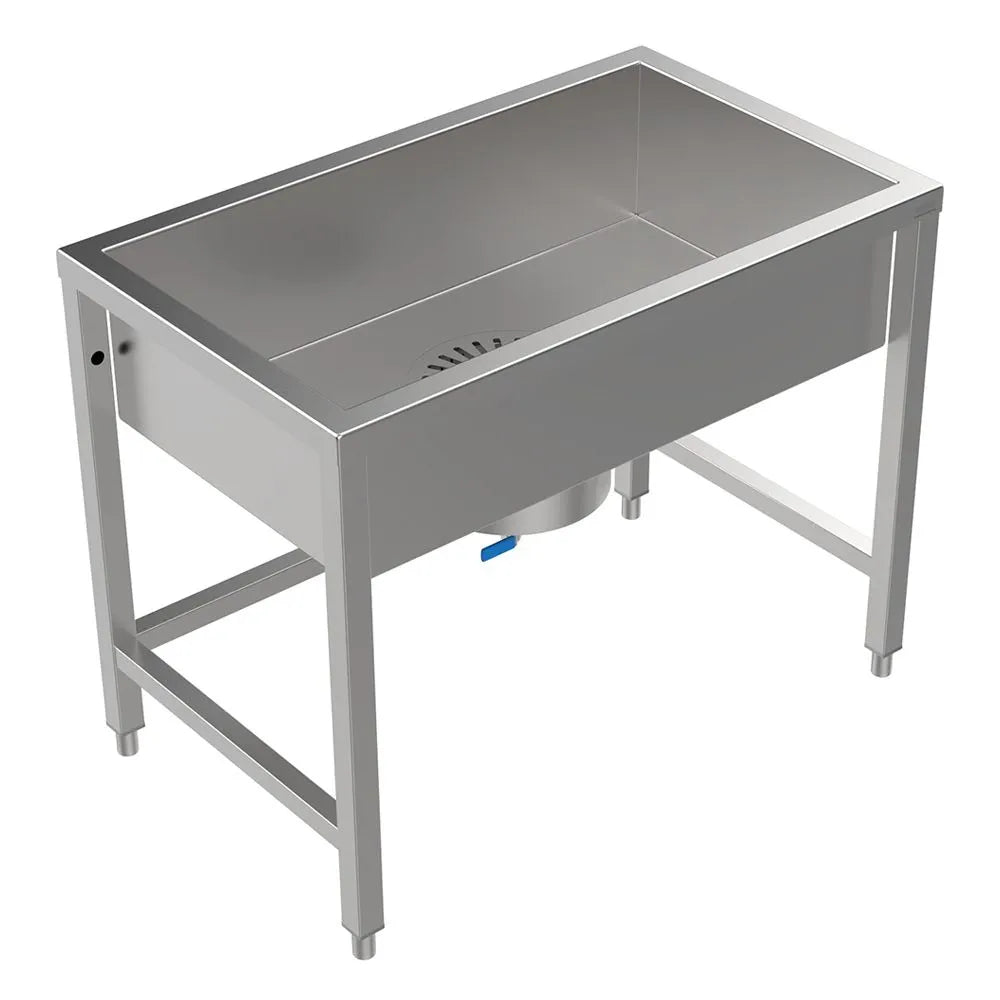

Floor-standing stainless steel work/multi-purpose sink with silt trap, various

Floor-standing stainless steel work/multi-purpose sink with silt trap, various

Awaiting stock, shipping soon
CHF 6,005.00
CHF 6,005.00
plus VAT | Shipping calculated at checkout.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ADR-3504180053

Downloads

Datasheet

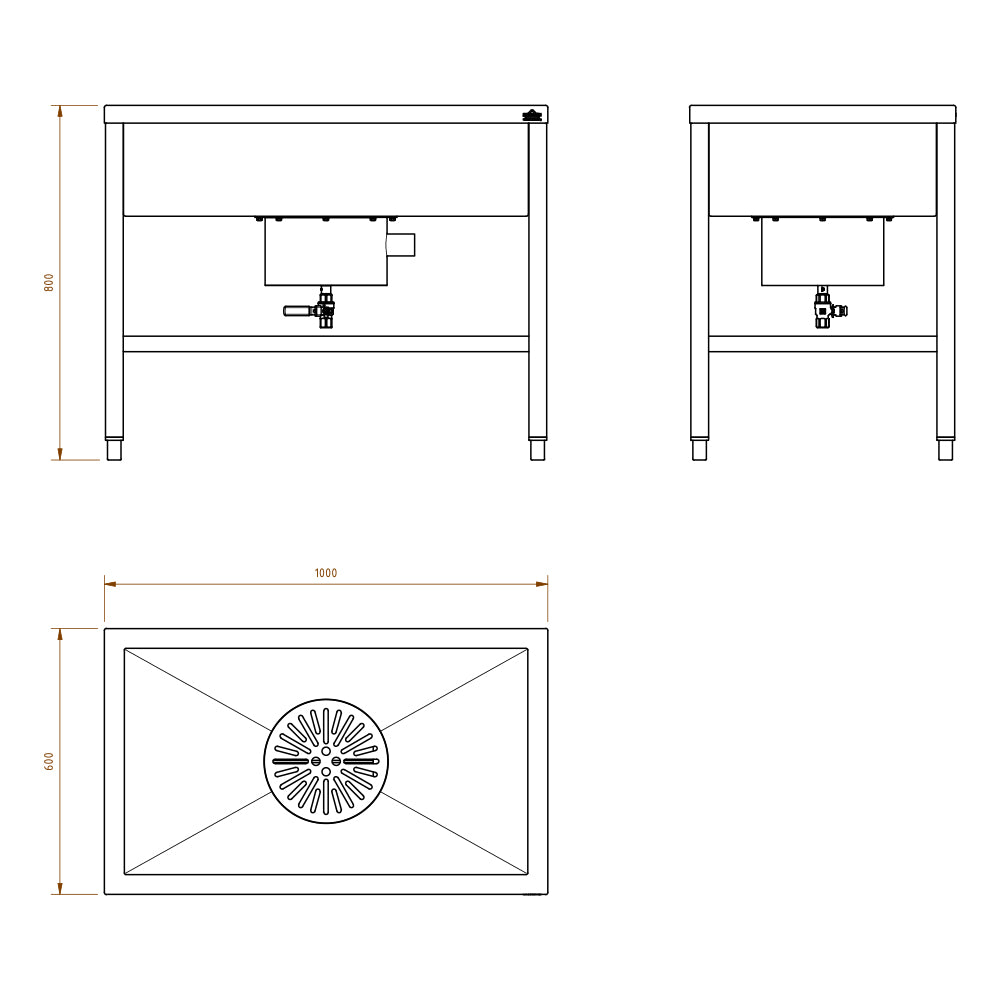

Technical Drawing

Description

For floor mounting with a base frame
made of stainless steel material no. 1.4301, material thickness 1.5 mm,
folded and welded construction,
consisting of:
1 basin with a continuous 45mm rim and a 40mm downward fold
basin bottom with integrated slope towards the central drain,

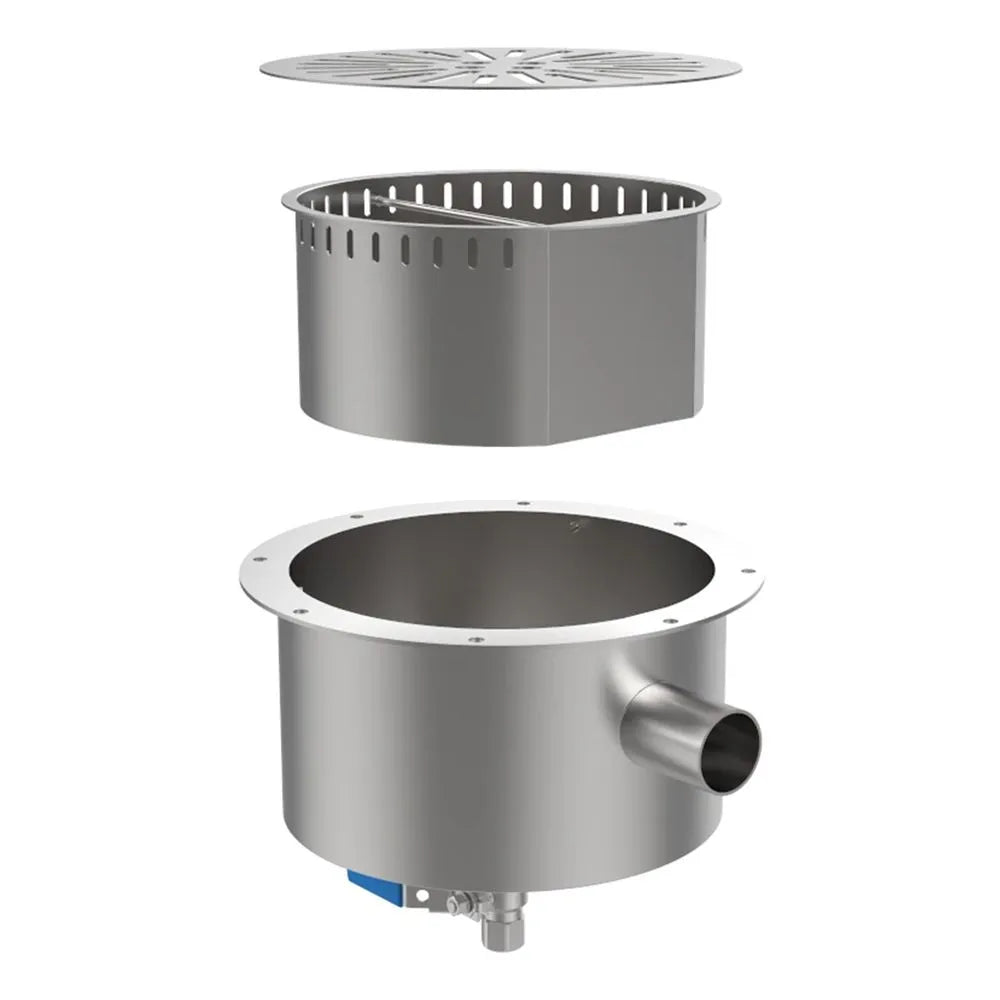

1 stainless steel sludge trap container
bolted and sealed to the basin from below
with a removable sieve bucket as a sludge trap,
with integrated odor trap,
horizontal outlet DN 50 to the right
(other outlet directions possible upon request and please specify when ordering!)
with a ball valve at the bottom of the sludge trap container for cleaning purposes
1 base unit as a welded stainless steel construction
consisting of 4 legs made of square tubing 40/40/1.5
with leveling feet, leveling range +/-15 mm
as well as a bracing running under the basin rim and a lower 3-sided bracing made of square tubing 35/35/1.5mm,
with wall distance protection
Total height: 800 mm
Dimensions: 910 x 250 x 510 mm basin interior (WxHxD)
Dimensions: 1000 x 250 x 600 mm basin exterior (WxHxD)

Options:
Other dimensions, see variants or upon request
With tap ledge
With standpipe valve
Drain also arranged right or left
With wall brackets for wall-mounted installation
With angled support feet for front support on the floor
With splash guard
With insert basin
With drip tray
