• ASA-SLSN 02P

SANELA | ASA-SLSN 02PB

Shower panel with piezo electronics, battery operated

Shower panel with piezo electronics, battery operated

Awaiting stock, shipping soon
CHF 1,395.00
CHF 1,395.00
plus VAT | Shipping calculated at checkout.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ASA-SLSN 02PB

Downloads

Datasheet
Technical Drawing
Assembly Instructions

Description

Stainless steel shower panel with integrated piezo electronics
Hygienic flush
Vandal-proof design
6 V battery
Wall mounting
Vandal-proof shower head
with connection to cold and hot water, temperature regulation via mixer
Water flows after light pressure on the piezo button and stops after repeated pressure or a set
running time of 10 - 310 sec. (factory preset 120 sec.)
Usage parameters adjustable with remote control SLD04 (optional)
Operating voltage 6 V
Connection: External thread G 1/2"

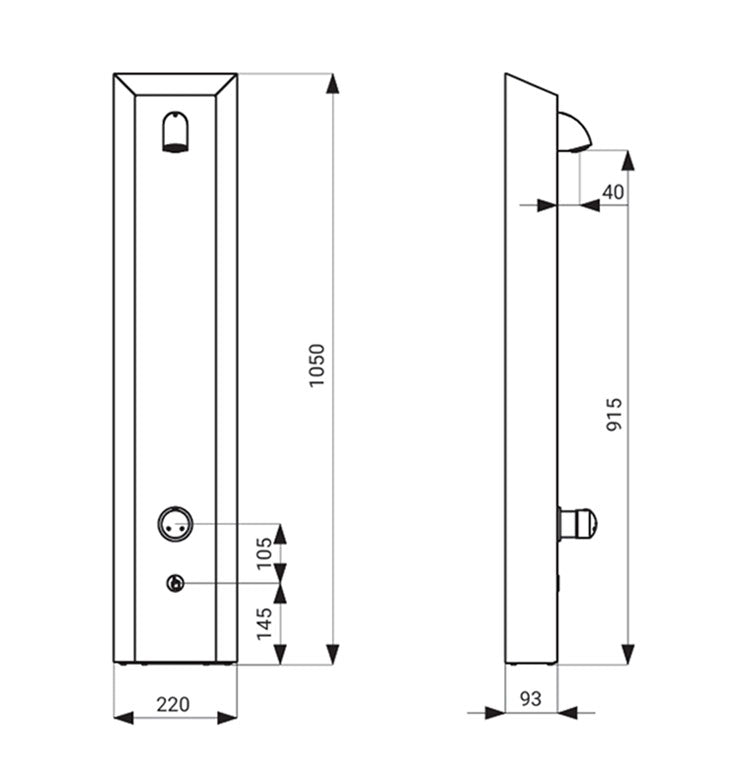

Dimensions: 1050 x 220 x 93 mm

Scope of delivery: Shower panel with electronics, solenoid valve (1 pc.), mixer, connection hose, angle valve with
filter and backflow preventer (2 pcs.), 4 pcs. alkaline batteries AA type 1.5 V/2700 mAh

The SANELA SLSN 02PBis a stainless steel shower panel with piezo control and integrated thermostatic mixer, battery-powered (6V) – for public washrooms with hot and cold water connection.

Advantages

  • Piezo push-button – mechanically robust, no moving parts, vandal-resistant.
  • Integrated thermostatic mixer – mixed water temperature pre-adjustable.
  • 6V battery operation – no mains voltage required.
  • Self-closing – flow time adjustable; water flow also stops by pressing the piezo button again.
  • Flow rate 6 l/min – stable even with pressure fluctuations.
  • Stainless steel AISI 304, satin finish – hygienic, corrosion-resistant, easy to clean.
  • Concealed, reinforced wall mounting – vandal-resistant.
  • Hygiene flush – flushes automatically after a defined period of inactivity, reduces legionella risk.
  • Battery accessible from below – without disassembling the panel.
  • Surface mounting – no concealed installation required.

Limitations

  • Hot and cold water connection required on-site.
  • Battery replacement required (6V).
