• ASA-SLSN-02PTB

SANELA | ASA-SLSN 02PTB

Stainless steel – Piezo – shower panel for hot and cold water with thermostatic mixer,

Stainless steel – Piezo – shower panel for hot and cold water with thermostatic mixer,

Awaiting stock, shipping soon
CHF 1,455.00
CHF 1,455.00
plus VAT | Shipping calculated at checkout.

Delivery in approx. 2–3 weeks.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ASA-SLSN 02PTB

Description

Hygiene flush
Vandal-resistant design

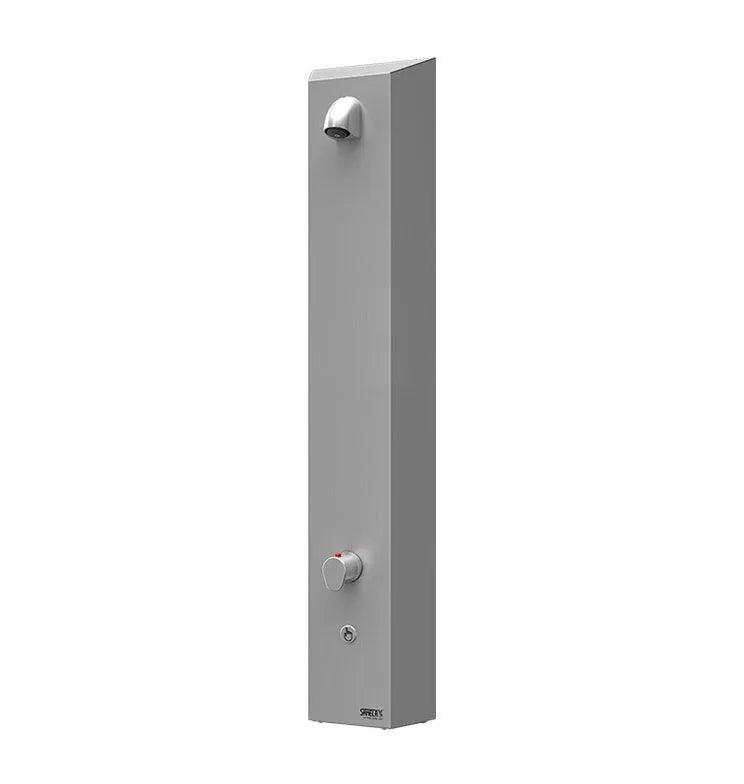

Wall-mounted stainless steel shower panel with integrated piezo electronics
Vandal-resistant, movable shower head with adjustable spray angle
SLSN 02PT with cold and hot water connection, temperature regulation via thermostatic mixer
Anti-scald protection
Water flows after slight pressure on the piezo button
Water flow ends automatically after the set running time (adjustable 10-310 seconds, factory preset 120 seconds)
Water flow ends with repeated slight pressure on the piezo button
Battery status indicator
Usage parameters adjustable with remote control SLD 04
Material: AISI-304
Surface: matte

The SANELA SLSN 02PTBis a stainless steel shower panel with piezo control and integrated thermostatic mixer, battery-powered (6V) – for public restrooms with hot and cold water connection.

Advantages

  • Piezo push-button – mechanically robust, no moving parts, vandal-resistant.
  • Integrated thermostatic mixer – mixed water temperature pre-settable, no external mixer needed.
  • Battery operation 6V – no mains voltage needed.
  • Self-closing – flow time adjustable; water flow also stops by pressing the piezo button again.
  • Flow rate 6 l/min – stable even with pressure fluctuations.
  • Stainless steel AISI 304, satin finish – hygienic, corrosion-resistant, easy to clean.
  • Concealed, reinforced wall mounting – vandal-resistant.
  • Hygienic flush – flushes automatically after a defined idle period, reduces Legionella risk.
  • Battery accessible from below – without disassembling the panel.
  • Surface mounting – no concealed installation necessary.

Limitations

  • Hot and cold water connection required on-site.
  • Battery replacement required (6V).
Share product on

Downloads

Datasheet

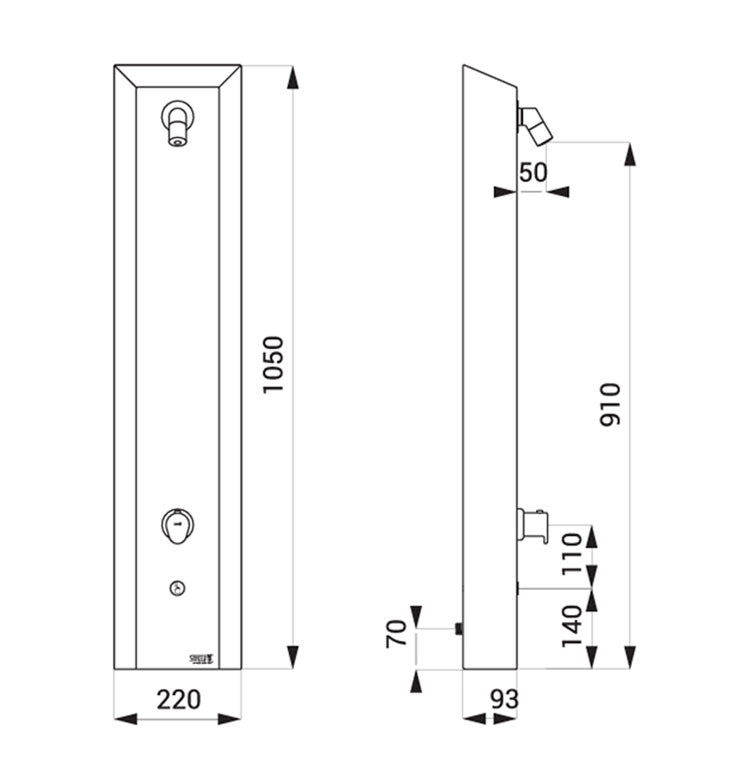

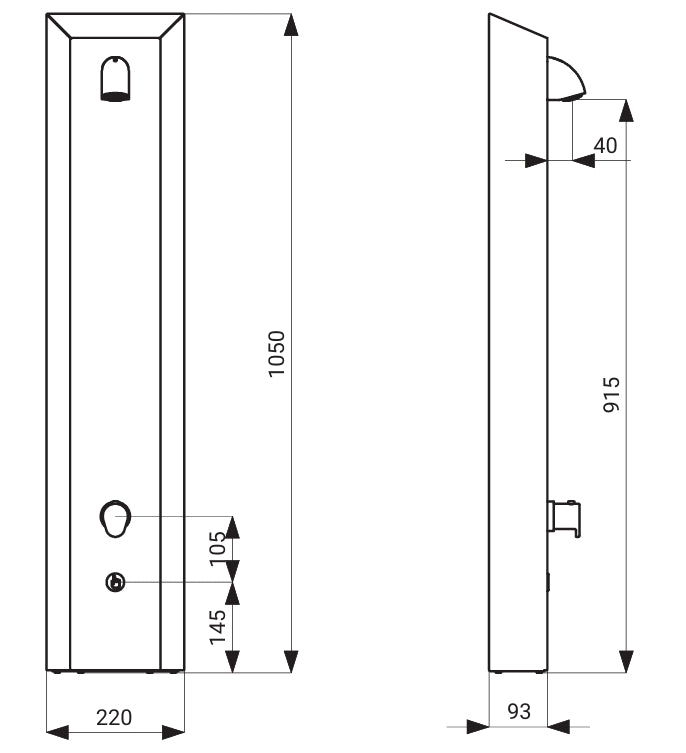

Technical Drawing
