MediClinics | AME-M09A

Machflow high speed hand dryer, AISI 304 stainless steel, satin, automati

Machflow high speed hand dryer, AISI 304 stainless steel, satin, automati

1 in stock
CHF 425.00
CHF 425.00
plus VAT | Shipping calculated at checkout.
surface

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

AME-M09A

Downloads

Datasheet

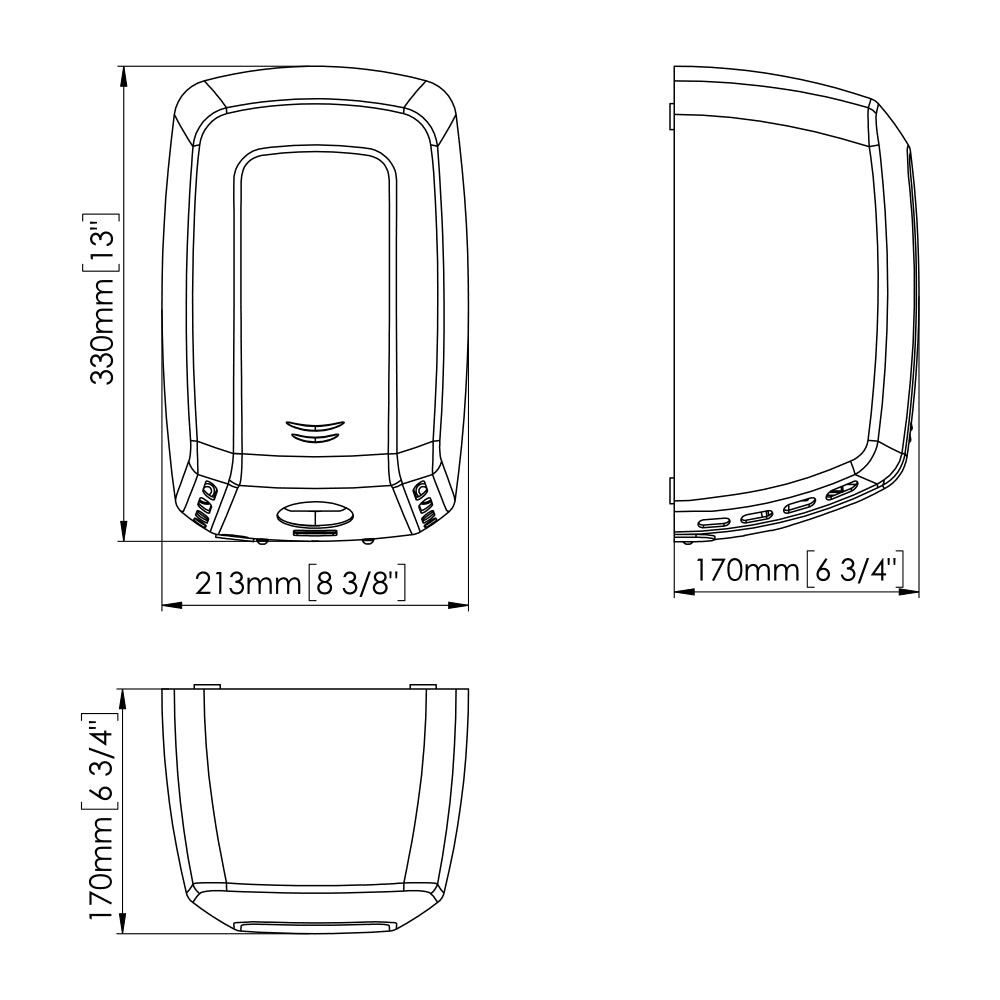

Technical Drawing
Assembly Instructions

Description

Sensor-controlled hand dryer Machflow Plus, available in steel with a white or black finish, as well as in AISI 304 stainless steel

Voltage 220 - 240 V
Frequency 50 / 60 Hz
Protection class Class I
Total power 420 - 1,500 W
Consumption 3.2 - 6.4 A
Motor power 420 - 1,100 W
RPM 19,000 - 30,000
Heating element power 400 W or 0 W (ON/OFF switch)
Version without HEPA filter

Housing material thickness 1.5 mm
Hand drying time 8 - 15 sec
Air velocity 191 - 325 km/h
Air temperature (10 cm distance / 21 °C) 45 °C
Noise level (at 2m) 67 - 74 dBA

The Mediclinics Machflow Plus M09is a high-speed hand dryer made of AISI 304 stainless steel, drying time 10–15 seconds, HEPA filter as standard – compact, very robust, for high-traffic facilities.

Advantages

  • Drying time 10–15 seconds at air speeds of up to 480 km/h.
  • HEPA filter as standard – filters pollen, dust mites, and fine dust from the blown air.
  • Very robust construction: 1.5 mm thick steel casing, tamper-proof cover screws, IR sensor behind polycarbonate viewing window – vandal-resistant.
  • 400 W heating element can be switched on separately – deactivated by default.
  • Optionally available with plug-in kit (code KTP009) – allows quick assembly and disassembly without tools, simplifies maintenance, and reduces service costs.
  • 60-second safety cut-off.
  • Protection class IP23 – splash-proof.
  • 4 surfaces from stock: Matte white, matte black, brushed stainless steel, polished stainless steel.

Limitations

  • Volume 67–74 dB – louder than warm air dryers.
  • Casing is steel, not stainless steel – in humid environments, ensure coating integrity (white/black) or choose the stainless steel variant.

Variant comparison

  • AME-M09A – Matte white.
  • AME-M09AB – Matte black.
  • AME-M09ACS – Brushed stainless steel.
  • AME-M09AC – Polished stainless steel. High-gloss, shows fingerprints more clearly.
