NEO series automatic hand dryer with compact design
Meets ADA requirements for accessible design
Housing made of one-piece ABS thermoplastic (3.0 mm) or stainless steel AISI 304 (1.5 mm)
Vandal-proof mounting of the housing with security screws
Integrated HEPA H13 air filter for the removal of 99.95% of particles
Contactless activation via infrared sensor
Adjustable sensor range between 6 and 15 cm
Automatic shutdown after 30 seconds of continuous operation (vandalism protection)
Drying time of approximately 20 seconds
Quiet operation with QuietDry™ technology
Motor and heating element housing made of flame-retardant thermoplastic (PA6 UL94 V0)
Base plate made of robust thermoplastic with three mounting points
Technical details:
- Voltage: 220-240 V
- Frequency: 50/60 Hz
- Total power: 800 W
- Motor/heating element power: 400 W / 400 W
- Air speed: 250 km/h
- Air temperature: 48 °C
- Drying time: approx. 20 s
- Noise level (at 2 m): 75 dBA
- Protection rating / protection class: IP24 / Class II
- Filter type: HEPA H13 (99.95% efficiency)

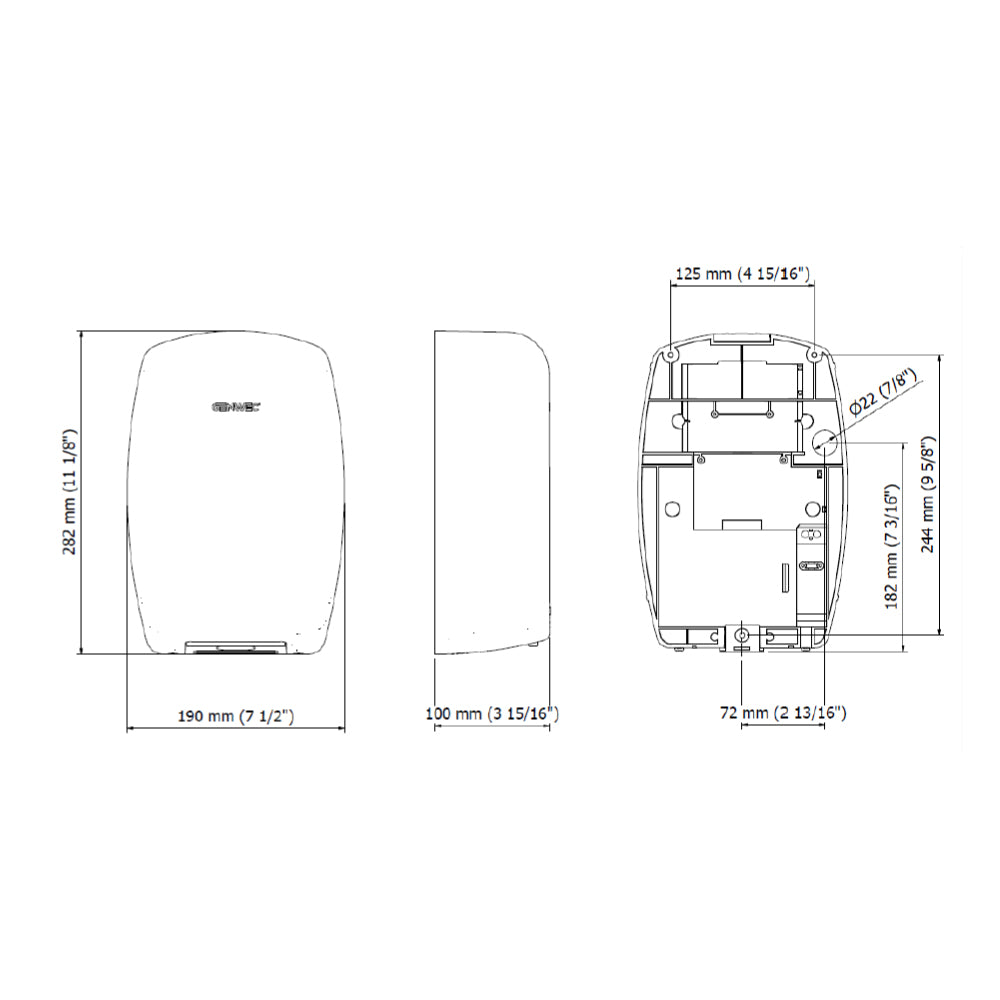

Dimensions:
- Height: 282 mm
- Width: 190 mm
- Depth: 100 mm
- Cable entry (diameter): 22 mm
The Genwec NEOis a compact warm air hand dryer with a HEPA filter, 800 watts, and an infrared sensor – space-saving, quiet compared to high-speed models, and offers excellent value for money.
Advantages
HEPA filter as standard – filters particles from the blown air.
800 watts – energy-saving operation, significantly more economical than 2000 W models.
Very compact dimensions (190 × 100 × 282 mm) – fits even in very confined washrooms.
Infrared sensor, adjustable detection range (6–15 cm) – touchless operation.
Thermal safety limiter – overheating protection.
Robust stainless steel casing for the stainless steel versions – vandal-proof.
Very attractive entry-level price from CHF 135 (White) – good value for money.
4 surfaces available from stock: Matte white (ABS), Matte black (coated stainless steel), Brushed stainless steel, Polished stainless steel.
Limitations
Drying time approx. 20 seconds – longer than high-speed dryers, less suitable for highly frequented facilities.
Volume 75 dB – noticeable in small, quiet rooms.
White version made of ABS plastic – less robust than the stainless steel versions.
