Saniflow hand dryer, AISI 304 stainless steel, satin, automatic

Name: Saniflow hand dryer, AISI 304 stainless steel, satin, automatic
Brand: MediClinics
SKU: AME-E05ACS
Price: 569.0 CHF
Availability: InStock

4 in stock

CHF 569.00

plus VAT | Shipping calculated at checkout.

surface

Satin-finished stainless steel Polished stainless steel matte black Matte white

Pay securely with

AME-E05ACS

SANITAS TROESCH:

SGVSB:

111812 562 000

Downloads

Datasheet

Technical drawing

Assembly instructions

Product features

How it works	electronic
material	Stainless steel Steel
Color	Stainless Steel, high-gloss polished Stainless Steel, matt/satin Black White

Description

• The Saniflow® automatic hand dryer with a rotating nozzle is the most widely used hand dryer in the world, regardless of the installation site.
• These devices are also characterized by easy maintenance, low noise, and very high user safety. The accurate design of its components contributes to SANIFLOW dryers having the most powerful airflow in the world, which, in combination with a comfortable drying temperature, reduces drying time to a minimum.
• Available with a 1.5 mm thick steel cover in white or black, or with a 1.5 mm thick stainless steel cover in glossy or satin finish, this hand dryer is ideal for high-traffic washrooms.
• These are, all in all, very proven models that are durable and absolutely reliable, feature vandal-proof protection, and are designed to be installed in high-traffic areas such as airports, large hotels, sports facilities, extensive recreational facilities, and large government buildings, etc.

Components and materials
• E05A: 1.5 mm thick steel cover, white lacquered.
• E05AB: 1.5 mm thick steel cover, black lacquered.
• E05AC: 1.5 mm thick stainless steel cover, glossy finish.
• E05ACS: 1.5 mm thick stainless steel cover, satin finish.
• COVER: one-piece, fastened to the base plate with 2 vandal-proof carriage bolts and secured with a special Saniflow® key.
• BASE PLATE: made of aluminum, 3 mm thick, with 4 Ø 8 mm holes for wall mounting.
• FAN HOUSING: made of fire-resistant plastic UL 94-VO.
• IMPELLER: Centrifugal, symmetrical impeller made of aluminum with double inlet.
• HEATING ELEMENT: made of corrugated NiCr wire on a mica frame with thermal cut-off.
• NOZZLE: 360º nozzle made of chrome-plated Zamak.
• HAND DETECTION: Adjustable detection via a potentiometer.

Voltage 220 - 240V
Frequency 50/60 Hz
Galvanic Isolation Class I
Total Power 2,250 W
Consumption 10 A
Motor Power 250 W
RPM 5,500
Heating Element Power 2,000 W

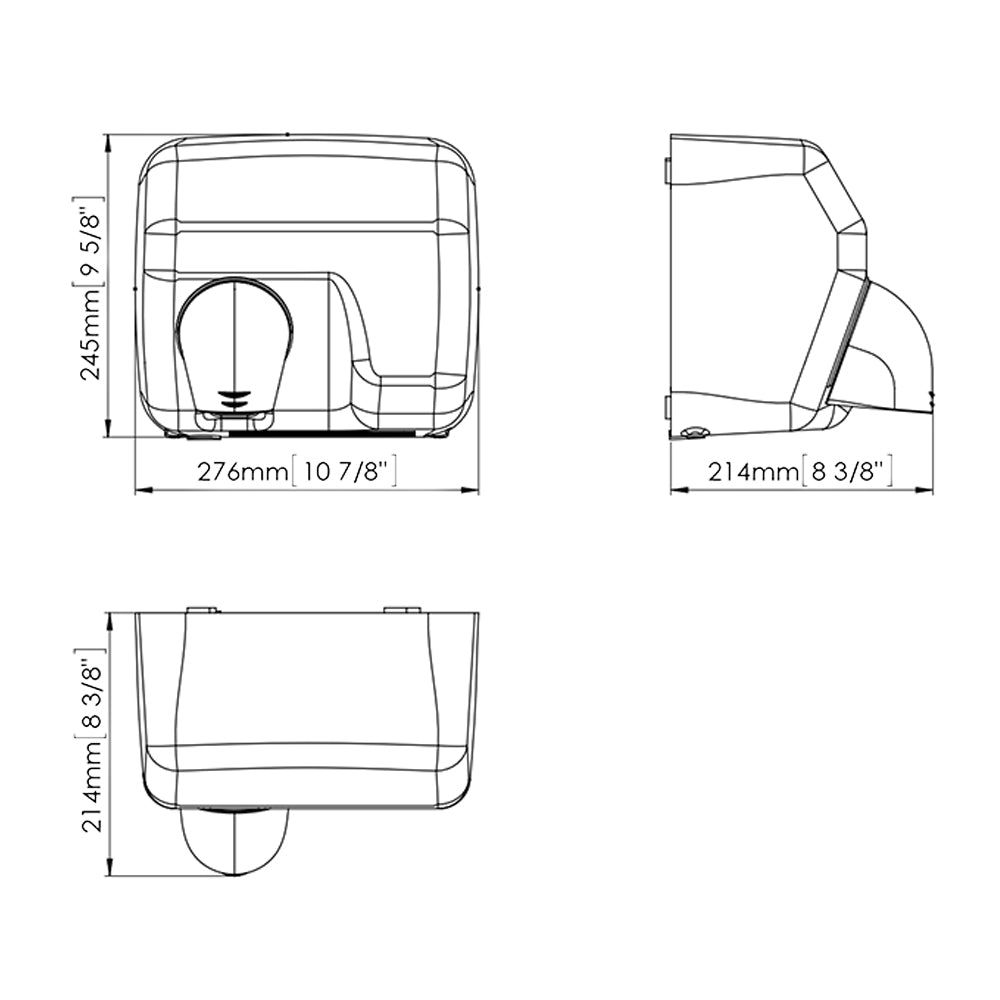

Dimensions 245x276x214 mm
Weight 4.65 kg
Cover Material Thickness 1.5 mm
Drying Time 29 Sec.
Air Speed 100 km/h
Sound Pressure (at 2m) 68 dBA
Protection Class IP21

The Mediclinics Saniflow E05Ais one of the world's best-selling hand dryer models. 2250 watts, automatic infrared sensor, 360° rotating nozzle – robust, low-maintenance, and offering excellent value for money.

Advantages

2250 watts of power – drying time approx. 29 seconds at 100 km/h air speed and 50 °C air temperature.
360° rotating nozzle made of chromed Zamak – air outlet freely swiveling, adaptable to wall height or user position.
Automatic infrared sensor with adjustable detection distance (15–25 cm) – touch-free operation.
Very robust construction: 3 mm thick aluminum base plate, 1.5 mm steel casing, vandal-resistant design – proven in airports, sports centers, and high-traffic public facilities.
Thermal safety cut-out on heating element and motor – built-in overheating protection.
Four silent blocks reduce vibration and operating noise.
Automatic shut-off 2 seconds after hands are removed.
4 finishes available from stock: Matte white, Matte black, Brushed stainless steel, Polished stainless steel.

Limitations

Volume 68 dB – suitable for high-traffic facilities, noticeable in small or quiet rooms.
Warm air dryer: higher energy consumption than high-speed dryers (e.g., jet-air systems), but significantly cheaper to purchase.
Drying time 29 seconds – longer than high-speed models.

Variant comparison

AME-E05A – Matte white.
AME-E05AB – Matte black.
AME-E05ACS – Brushed stainless steel.
AME-E05AC – Polished stainless steel. High-gloss, shows fingerprints more clearly.
