Armatron AG | A-LVR-GUARDIAN

Washbasin, vandal-resistant, stainless steel AISI304, wall-mounted, brushed

Washbasin, vandal-resistant, stainless steel AISI304, wall-mounted, brushed

Awaiting stock, shipping soon
CHF 787.00
CHF 787.00
plus VAT | Shipping calculated at checkout.

Delivery in approx. 2–3 weeks.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

A-LVR-GUARDIAN

Description

– Wall-mounted, made entirely of brushed AISI 304 (1.4301) stainless steel, closed at the bottom
– Material thickness 1.2–1.5 mm, seamlessly welded, rounded edges – maximum vandal resistance
– One-piece deep-drawn basin Ø 320 mm, 140 mm deep
– Flush-mounted push button on the side (right), solid stainless steel spout with concealed flow regulator
– Mechanically self-closing after 10 seconds at 3 bar (± 2 sec.)
– Front service access via service flap, secured with TORX+PIN screws
– 1½" trap (siphon) and mounting material included
– Integrated wall brackets, load capacity min. 150 kg
– CE compliant: EN 14688 / EN 816 / EN 1112, manufactured in Spain
– Width × Depth × Height: 360 × 360 × 250 mm
– Basin diameter: Ø 320 mm, depth 140 mm
– Weight (net/gross): 4.5 kg / 6.5 kg

The A-LVR-GUARDIAN Washbasinis a vandal-resistant, single-bowl washbasin made of AISI 304 stainless steel – seamlessly deep-drawn, closed at the bottom, with an integrated self-closing push button. CE compliant, manufactured in Spain, designed for correctional facilities, psychiatric hospitals, and high-security areas.

Advantages

  • Completely made of AISI 304 stainless steel, seamlessly welded, rounded edges – maximum vandal protection.
  • Material thickness 1.2–1.5 mm – very robust for high-security applications.
  • Flush-mounted side push button with concealed flow regulator – no protruding parts, tamper-proof.
  • Mechanically self-closing after 10 seconds (± 2 sec.) at 3 bar – water-saving, no electrical connection required.
  • Front maintenance access via service hatch with TORX+PIN screws – easy maintenance, yet tamper-proof.
  • Includes odor trap (1½″ siphon) and mounting material – ready for connection.
  • Integrated wall brackets, load capacity min. 150 kg – very stable mounting.
  • CE compliant according to EN 14688 / EN 816 / EN 1112.

Limitations

  • Compact bowl (Ø 320 mm) – for single washing stations, not for group washing.
  • No mixed water function (cold water only or pre-mixed on-site).
Share product on

Downloads

Datasheet

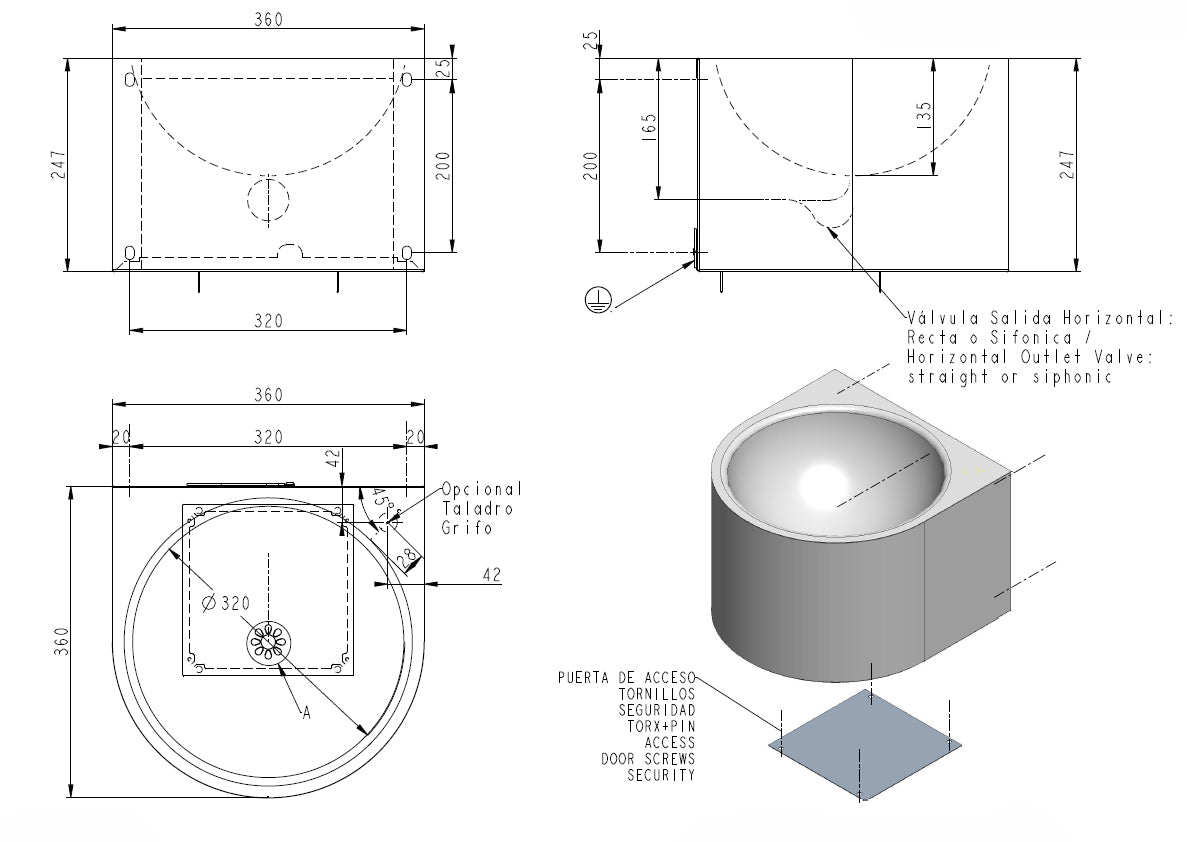

Technical Drawing
