VIKING hand basin with splash guard, 1 push button

Heavy-duty wall-mounted washbasin with integrated splash guard
Fully enclosed construction for maximum safety and optimal hygiene
Made from high-quality, 1.2 mm thick stainless steel AISI 304 (1.4301)
Surface with an elegant satin finish for long-lasting durability and easy care.
Integrated splash guard with a height of 140 mm for wall mounting
Equipped with a twist-proof, rounded stainless steel drinking fountain (bubbler)
One or two concealed mechanical push buttons for precise water control.
Mechanically self-closing
Vandal-proof fittings, delivered fully pre-installed and ready for connection
Embossed round basin with dimensions Ø 320 mm
Quick and easy front mounting via an access panel
Inspection hatch securely screwed in place with special TORX security screws
All pipe connections are securely concealed within the stainless steel cladding.
Seamlessly welded construction with rounded edges for increased user safety
Includes all necessary mounting hardware for secure wall mounting.
CE marked and fully compliant with the European standard EN 14688

Technical data:
- Material: Stainless steel AISI 304 (1.4301)
- Material thickness: 1.2 mm
- Surface: Satin (Matte)
- Basin shape: Round, Ø 320 mm
- Basin depth: 120 mm
- Control: 2 mechanical push buttons
- Outlet: 1 twist-proof bubbler
- Drain connection: 1 1/2" (concealed siphon)
- Certification: CE, EN 14688
- Vandalism protection: Fully enclosed, TORX security screws

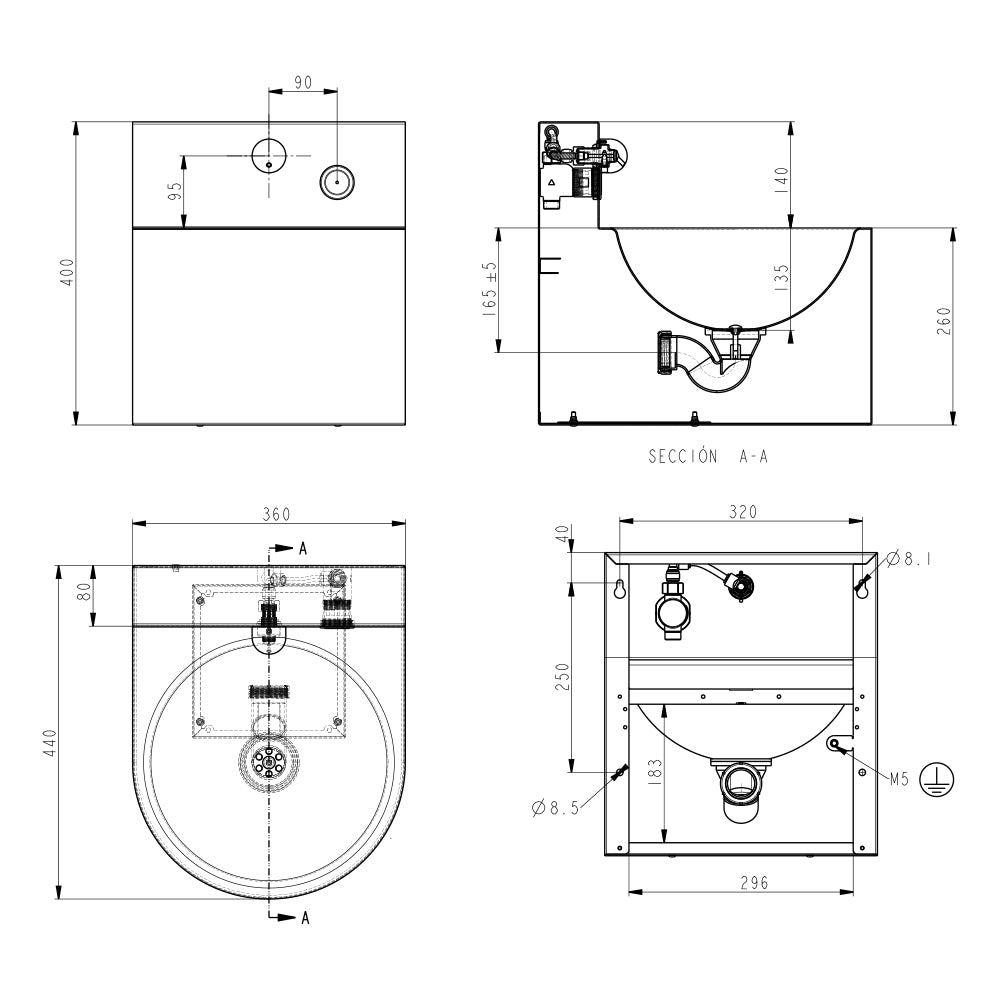

Dimensions:
- Total width: 360 mm
- Total depth: 440 mm
- Total height (including splash guard): 400 mm
- Splash guard height: 140 mm
- Splash guard depth: 80 mm
