• B4998
  • B-4998_SL

BOBRICK

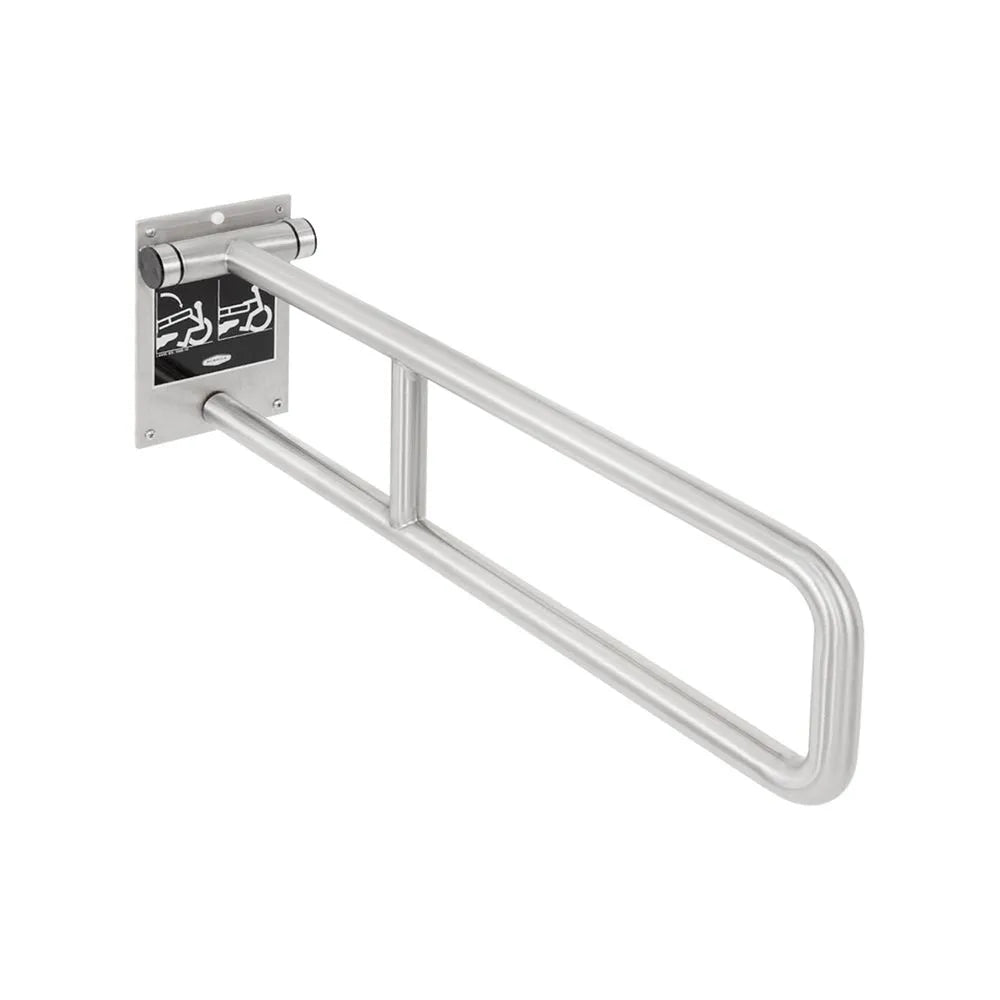

Swing up grab bar

Swing up grab bar

3 in stock
CHF 895.00
CHF 895.00
plus VAT | Shipping calculated at checkout.

Pay securely with

Twint PayPal Visa Maestro American Express Apple Pay Generic

B4998

SANITAS TROESCH:
SGVSB:

573366 000 000

Downloads

Datasheet
Datasheet

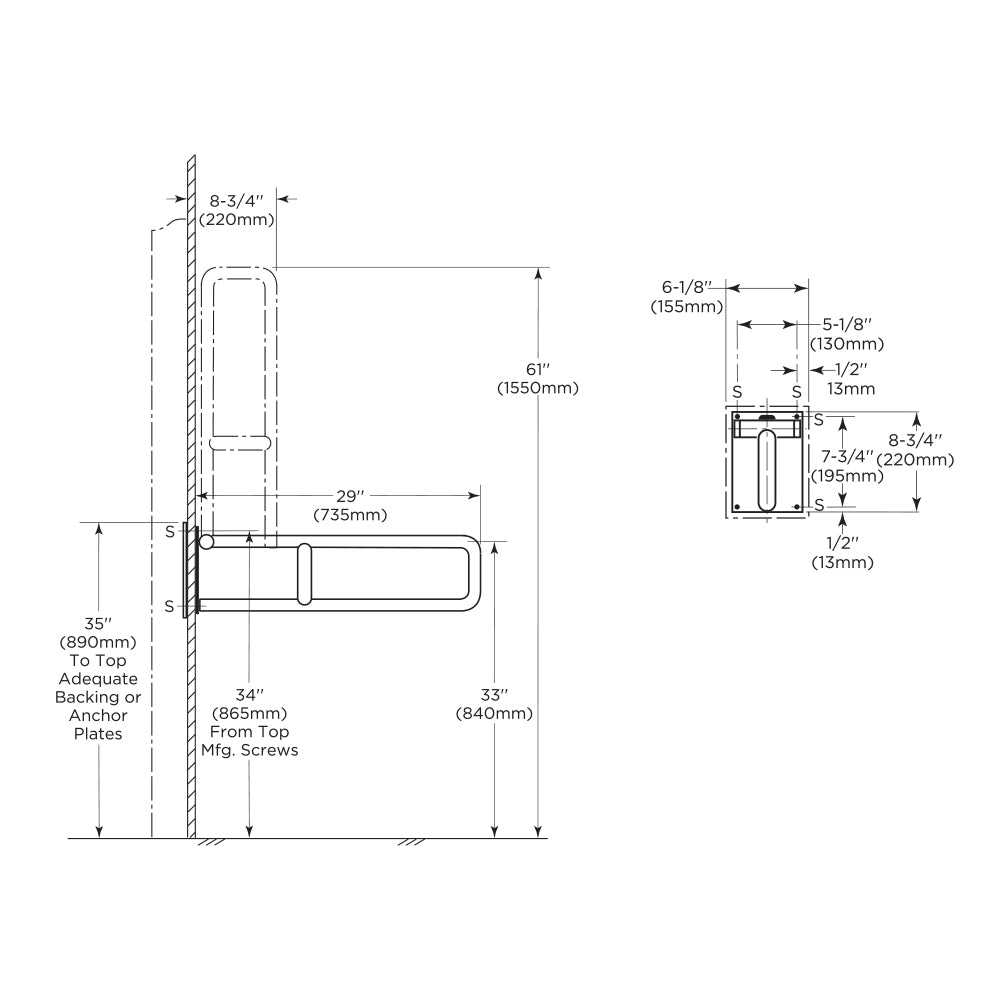

Technical drawing

Product features

Handle projection
  • 735 mm

type
  • Folding support arm

material
  • stainless steel

Color
  • Stainless steel, matte/satin finish

Description

- Grab bar: Stainless steel AISI 304, tube wall thickness 1.2 mm, outer diameter 32 mm
- Surface: Matt (satin finish), non-slip
- Wall plate: Stainless steel AISI 304, material thickness 5 mm, matt, with four mounting holes
- Projection: 735 mm (unfolded)

Technical data:
- Material: Stainless steel AISI 304 (1.4301)
- Tube diameter: 32 mm
- Tube wall thickness: 1.2 mm
- Wall plate thickness: 5 mm
- Load capacity: Up to 227 kg (500 lbs) with proper installation

Der Bobrick B4998 Swing-Up ist ein hochklappbarer Haltegriff aus Edelstahl AISI 304, satiniert, Ø 32 mm – für barrierefreie WC-Anlagen, Duschen und Badezimmer nach DIN 18040. Klappt nach oben an die Wand und gibt den Raum frei.

Vorteile

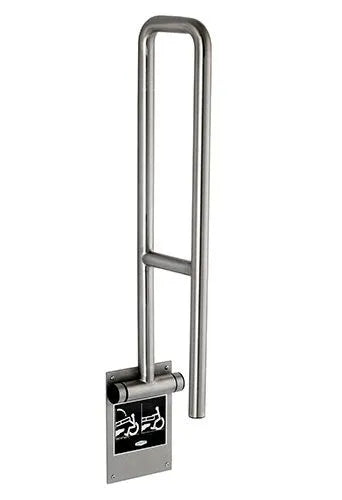

  • Swing-Up Mechanismus – klappt nach oben an die Wand, gibt den Raum vollständig frei.
  • Rutschhemmende Oberfläche – zusätzliche Griffsicherheit.
  • Edelstahl AISI 304, satiniert – robust, hygienisch, korrosionsbeständig.
  • Rohr Ø 32 mm – solide Konstruktion für den öffentlichen Einsatz.
  • Aufputzmontage – einfache Installation, Montagematerial inbegriffen.

Einschränkungen

  • Nur für Massivwand – Hohlwand erfordert Vorbereitung.
