• ASA-SLR-21

SANELA | ASA-SLR 21

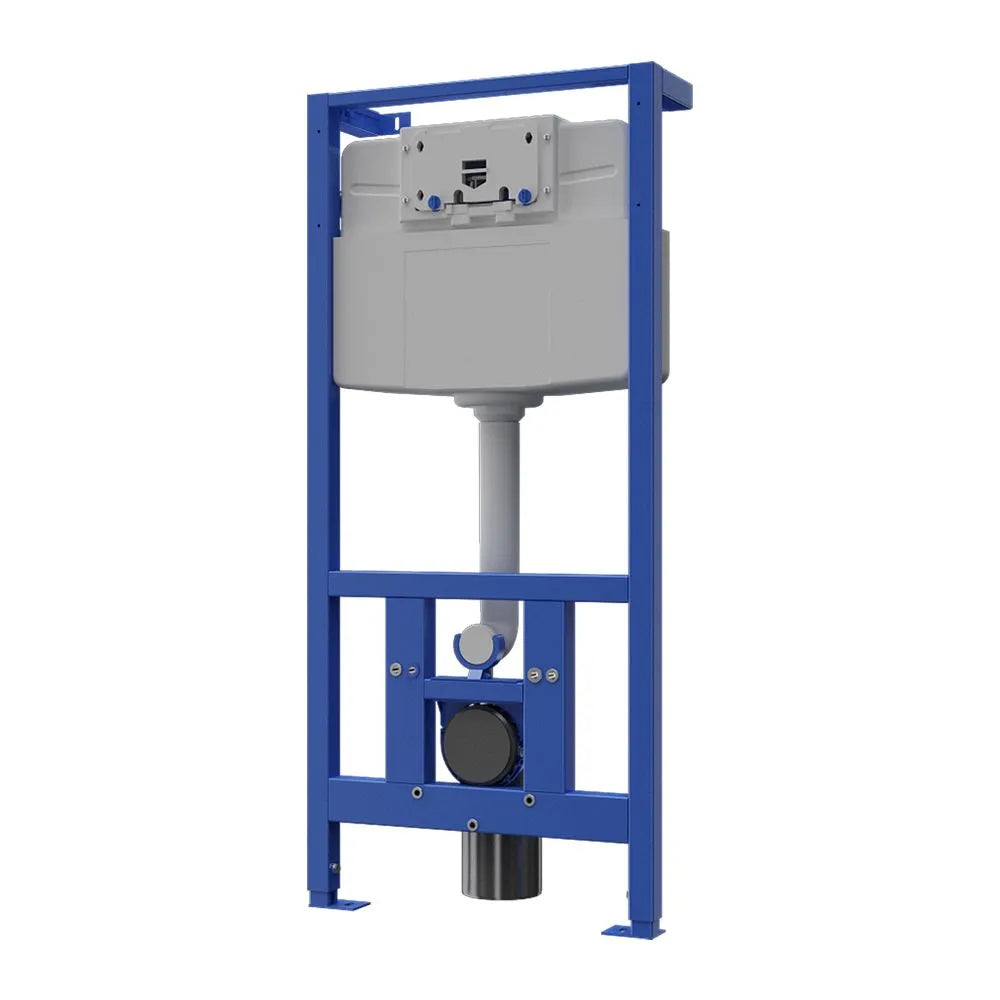

Mounting frame with cistern for wall-hung toilets

Mounting frame with cistern for wall-hung toilets

Awaiting stock, shipping soon
CHF 311.00
CHF 311.00
plus VAT | Shipping calculated at checkout.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ASA-SLR 21

Downloads

Datasheet

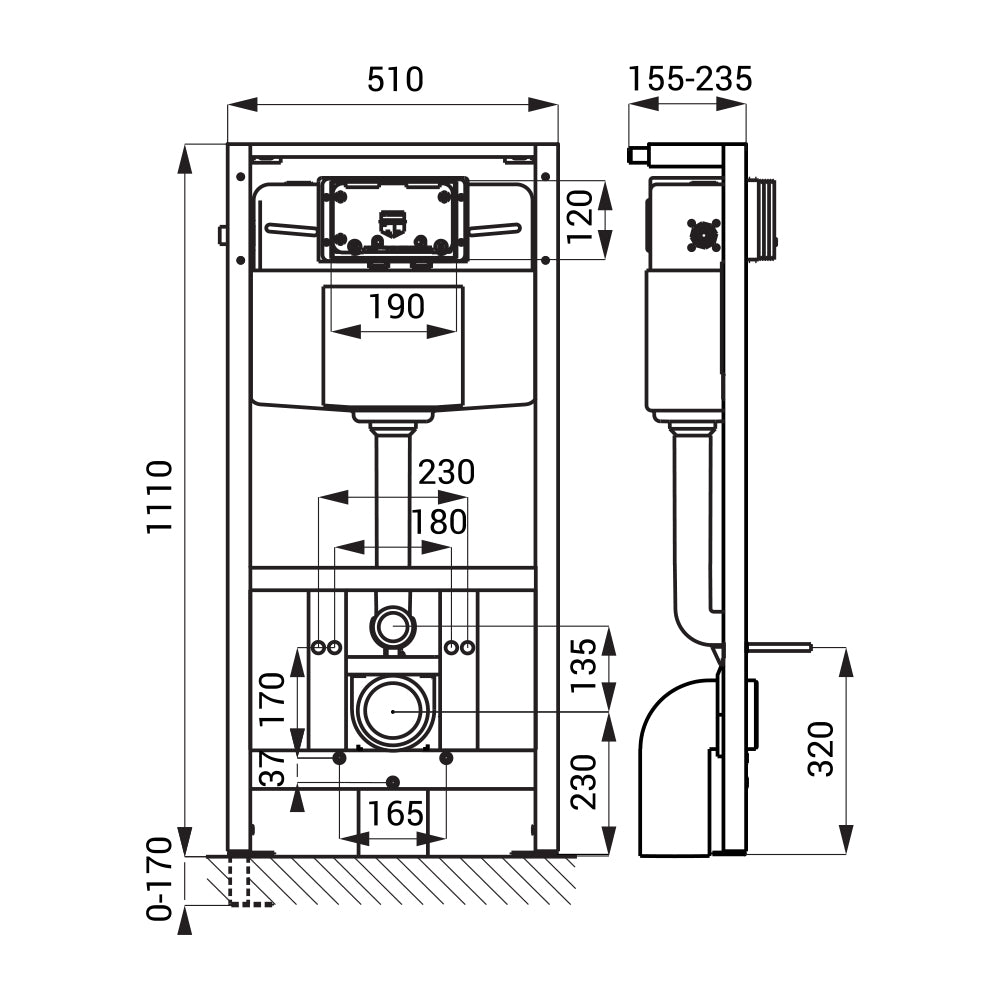

Technical Drawing
Assembly Instructions

Description

- Installation frame for installation in a brick or plastered partition wall in front of a solid wall
- Anchoring to the floor and back wall
- Mounting frames are for toilets and WC flushing units (mechanical, infrared, and electronic)
- A five-point system for fastening stainless steel toilets
- Metal frame, surface finished with blue powder coating
- Adjustable height 1120-1290 mm
- Adjustable depth 155-235 mm

Technical details:
- Adjustable height: 120-1290 mm
- Adjustable depth: 155-235 mm

Scope of delivery: Installation frame, cistern with filling and emptying valve, M10 screws for fastening the toilet, water inlet bracket with connection set Ø 50 mm, drain holder with bend Ø 110 mm, mounting material
