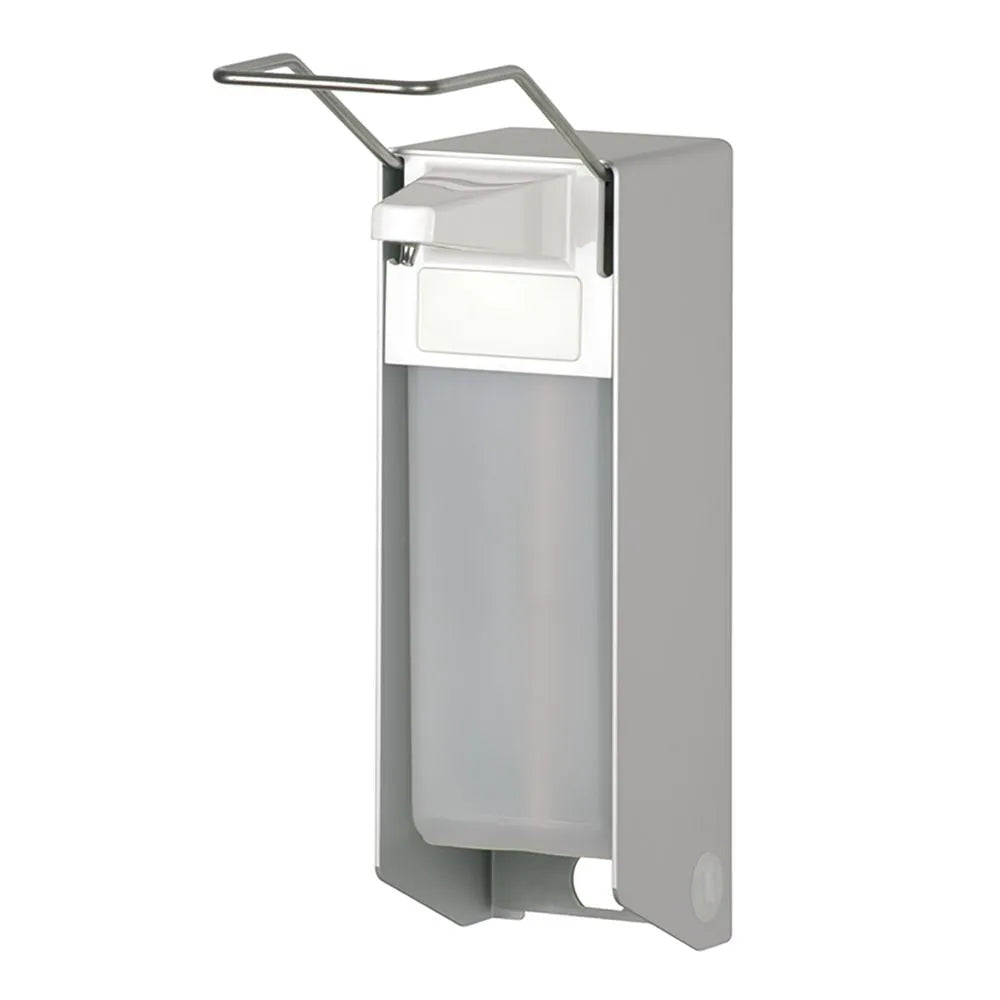

Ophardt ingo-man classic disinfectant dispenser, 500 ml, for Euro bottles

Soap and disinfectant dispenser 500 ml
With long lever and replaceable stainless steel pump.
straight suction pump
Comes standard with a refill container.
Autoclavable.

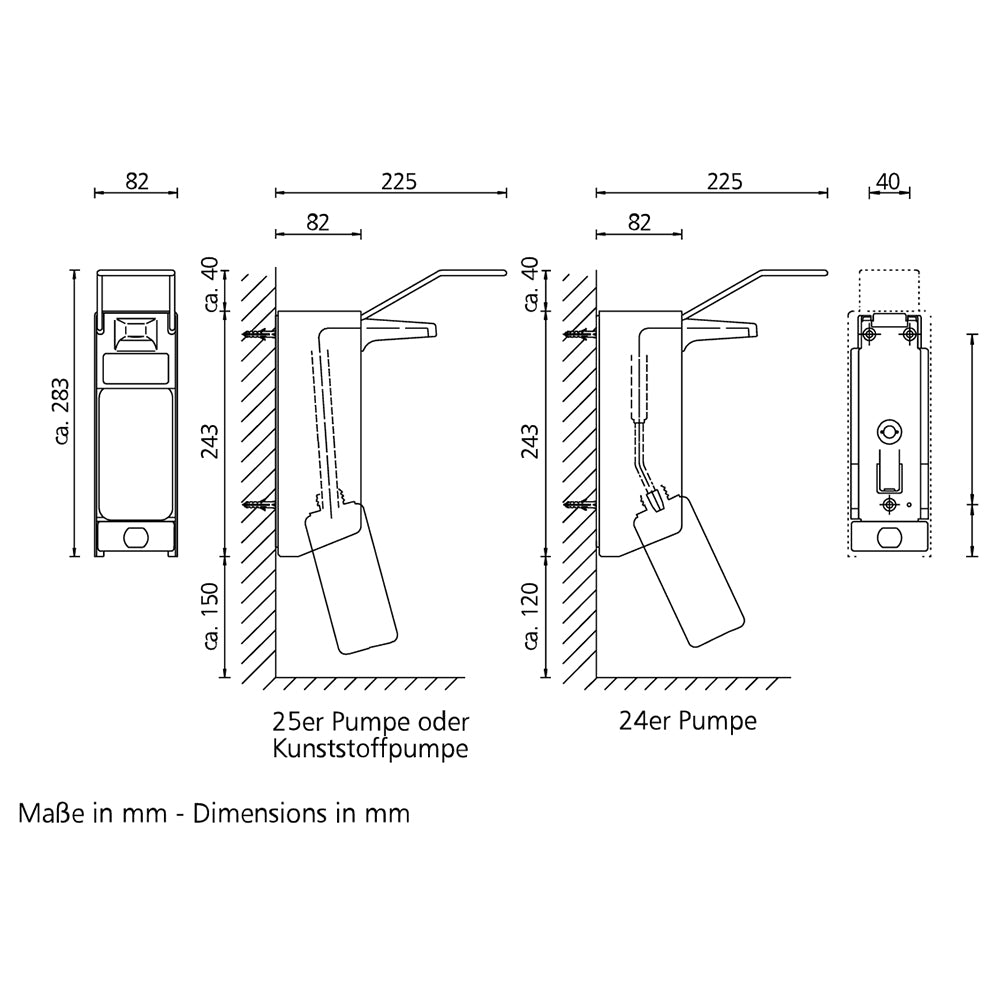

Dimensions: H 283 x W 82 x D 225 mm.
suitable for Euro bottles
with aluminum housing
Required space above the dispenser: approx. 40 mm
Required space below the dispenser: approx. 150 mm
Dispenser installation: Slightly lift the container and remove it from the dispenser. Press the locking tab and pull the wall bracket downwards from the housing. Attach the wall bracket using the included wall plugs and screws. Slide the dispenser onto the wall bracket until the locking tab clicks into place.
If necessary, the dosage can be gradually reduced from 1.5 ml/stroke to approximately 0.5 ml/stroke by turning the dosing wheel to the right and left.
Insert the filled container into the dispenser from below.
Only warm soapy water is recommended for cleaning.
