• ASA-SLU 09PTB

SANELA | ASA-SLU 09PTB

Piezo stainless steel wall-mounted faucet with thermostatic valve, 6 V

Piezo stainless steel wall-mounted faucet with thermostatic valve, 6 V

Awaiting stock, shipping soon
CHF 1,222.00
CHF 1,222.00
plus VAT | Shipping calculated at checkout.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ASA-SLU 09PTB

Downloads

Datasheet
Technical Drawing
Assembly Instructions

Description

- Aerator, flow rate 6 l/min.
- Hygienic flush
- Vandalism-proof design
- suitable for prisons
- Special anti-suicide spout
- Special vandal-proof stainless steel cover
- Basin mixer with hot and cold water connection, temperature regulation via thermostatic valve
- water flows after light pressure on the piezo button
- Water flow ends automatically after a set time (adjustable from 2 sec. - 62 sec.), factory set to 10 sec.
- Water flow ends with repeated light pressure on the piezo button
- Battery status indicator
- Usage parameters adjustable with remote control SLD 04

Technical details:
- Material: stainless steel
- Temperature regulation: with thermostat
- Operating voltage: battery
- Control: piezo

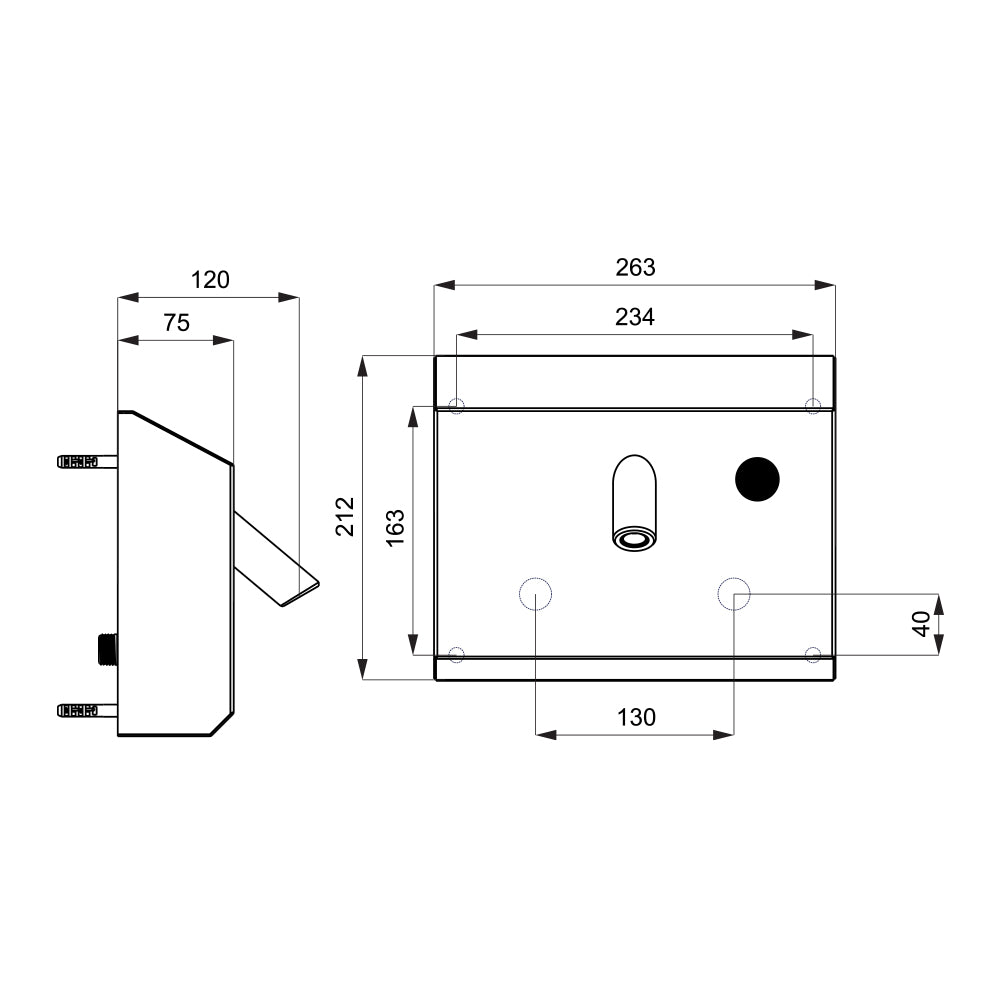

- Dimensions: 263 x 212 x 120 mm
- Weight: 3.44 kg
- Material thickness: 1.2 mm
- Operating voltage: 6 V
- Power consumption: 3 W
- Battery life: alkaline battery (4 pcs) AA type 1.5 V/2700 mAh (approx. 2 years (100 uses daily))
- Recommended water pressure: 0.1 - 0.6 MPa
- Flow rate: 6 l/min. (inf. Data)
- Water inlet: external thread G 1/2"

Scope of delivery: Stainless steel cover with spout, piezo electronics, solenoid valve (1 pc) and thermostatic valve (1 pc), angle valve with filter and backflow preventer (2 pcs), safety screw connection (2 pcs), 4 pcs. alkaline battery 1.5 V, 2700 mAh
