Piezo stainless steel basin tap (wall-mounted)

Technical Specifications:
- Product type: Piezo wall-mounted faucet for cold or mixed water
- Material: Stainless steel AISI 304
- Surface: Brushed (Index X)
- Power supply: 24 V DC
- Operating voltage: 24 V DC
- Recommended flow pressure: 0.1 - 0.6 MPa
- Flow rate: 6 l/min (with economy aerator)
- Water inlet: G 1/2“ external thread
- Flush time: Adjustable from 2 to 62 seconds (standard 10 s)

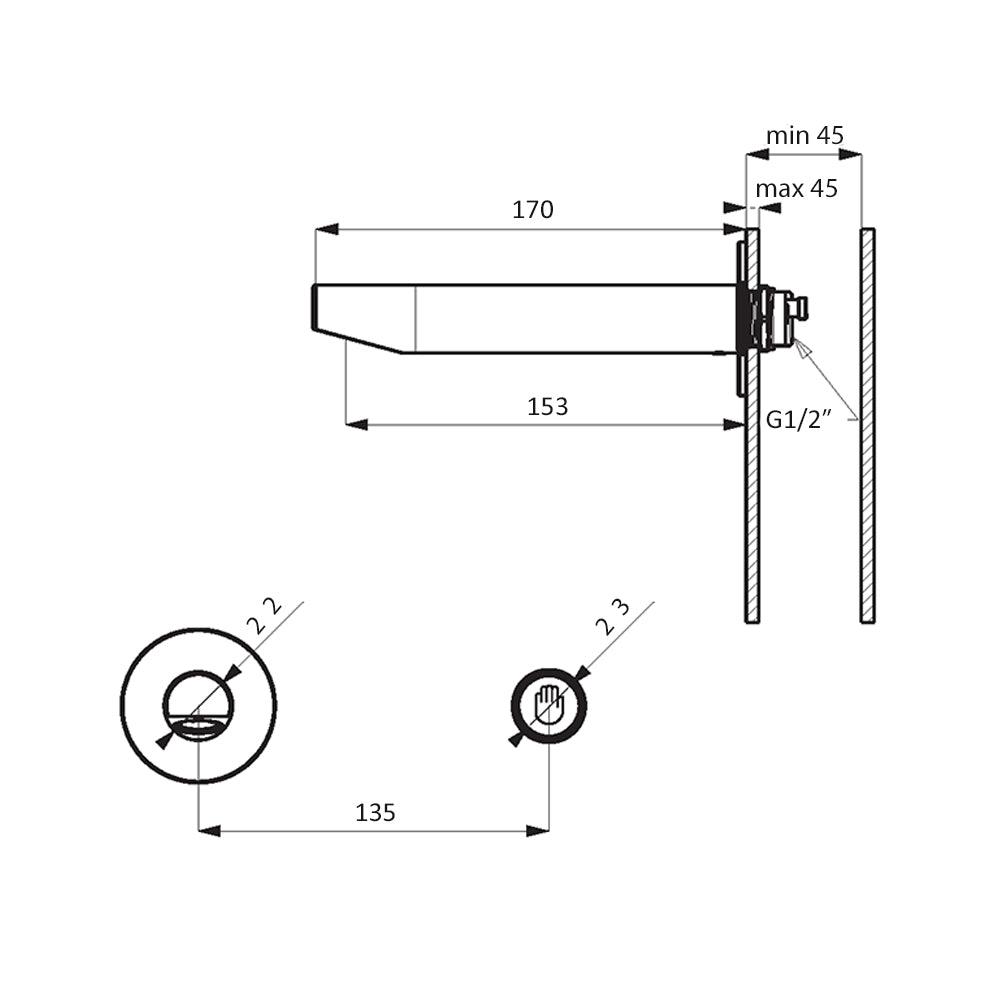

Dimensions:
- Projection (spout length): 170 mm
- Spout diameter: 22 mm
- Rosette diameter: 45 mm
- Maximum panel thickness for mounting: 5 mm
- Wall mounting: Requires mounting set ASA-SLA 52B (for wall thickness up to 300 mm)

Vandal-proof piezo wall-mounted faucet made of high-quality stainless steel AISI 304 for use in public and commercial washrooms
Hygienic and lead-free construction with an easy-to-clean brushed surface for the highest aesthetic demands
Easy activation of water flow by light pressure on the integrated piezo button without mechanical wear
Integrated start/stop function allows manual termination of water flow by pressing the button again
Automatic water stop after the individually adjustable flush time between 2 and 62 seconds to save water
Integrated automatic hygienic flush to prevent stagnant water and ensure drinking water quality
Efficient water consumption thanks to the standard economy aerator with a limited flow rate of 6 liters per minute
Flexible mounting options either directly in panels up to 5 mm thick or in the wall using the optional mounting set SLA 52B
Convenient adjustment of all operating parameters such as flush time and hygiene intervals via the optional remote control SLD 04
Robust system including solenoid valve and modern piezo electronics for reliable continuous operation

Scope of Delivery:
- Stainless steel faucet spout
- Integrated piezo electronics
- Solenoid valve (1 piece)
