• ASA-SLW 04PA

SANELA | ASA-SLW 04PA

Piezo WC flushing system with remote release (vandal-proof)

Piezo WC flushing system with remote release (vandal-proof)

Awaiting stock, shipping soon
CHF 1,019.00
CHF 1,019.00
plus VAT | Shipping calculated at checkout.

Delivery in approx. 2–3 weeks.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ASA-SLW 04PA

Description

Technical Specifications:
- Product type: Piezo WC flushing system with remote activation
- Material: Stainless steel AISI 304
- Surface: Matt brushed
- Power supply: 24 V DC
- Recommended flow pressure: 0.15 - 0.6 MPa
- Water inlet: External thread G 1/2"
- Water outlet: Inlet nozzle with rubber seal
- Flushing time: Adjustable from 0.5 to 15.5 seconds (standard 8 s)

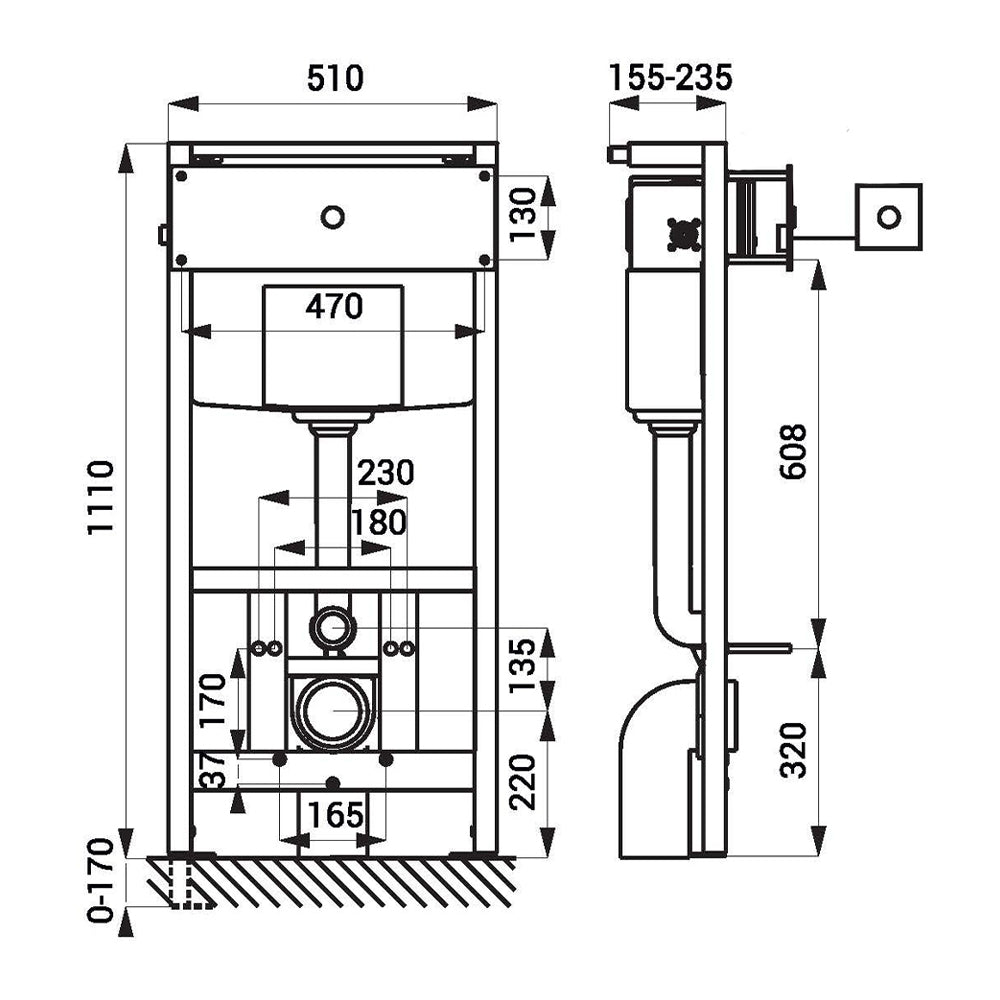

Dimensions:
- Main flush cover plate: 500 x 170 x 3 mm
- Remote activation cover plate: 85 x 90 x 3 mm
- Mounting frame width: 510 mm
- Mounting frame height: 1120 mm to 1290 mm (adjustable)
- Mounting frame depth: 155 mm to 235 mm (adjustable)
- Connection cable remote activation: 2500 mm

Vandal-resistant WC flushing system specially designed for use in correctional facilities and
high-traffic public areas
Equipped with an additional piezo button for remote activation for disabled-friendly use
Robust stainless steel cover plate with a material thickness of 3 mm for maximum protection against damage
Secure fastening with special Torx security screws to prevent unauthorized disassembly
Hygienic activation of water flow by light pressure on the piezo button
Integrated automatic hygienic flush after every eighth use or after 24 hours of non-use to
prevent stagnant water
Flexible adjustment of operating parameters such as flushing time and range via the optional remote control SLD 04 (optional)
Complete set including mounting frame SLR 21 with integrated cistern for easy installation
Durable construction made of high-quality stainless steel AISI 304 with an easy-care matt brushed surface
Reliable function due to modern piezo electronics with no moving mechanical wear parts

Scope of delivery:
- Stainless steel cover plate with integrated piezo electronics
- Stainless steel holder for electromagnet including electromagnet
- Set of Torx security screws (4 pieces) for the main cover
- Mounting frame SLR 21 with integrated cistern
- Additional stainless steel cover plate for remote activation with piezo electronics
- Matching plastic flush-mounted box for remote activation - Set of Torx security screws (2 pieces) for remote activation - Connection cable with a length of 2500 mm including connector

Share product on

Downloads

Datasheet
Technical Drawing
CAD drawing
Assembly Instructions
