ASA-SLZM 22

Description

General Information:
- Product type: Back support for individuals with limited mobility
- Intended use: Wall-mounted behind the toilet to support seating position
- Construction: Robust tubular construction with integrated polyurethane backrest
- Features: Ergonomic design, vandal-resistant, easy to clean, hygienic surfaces, concealed
fastening points
- Includes mounting hardware

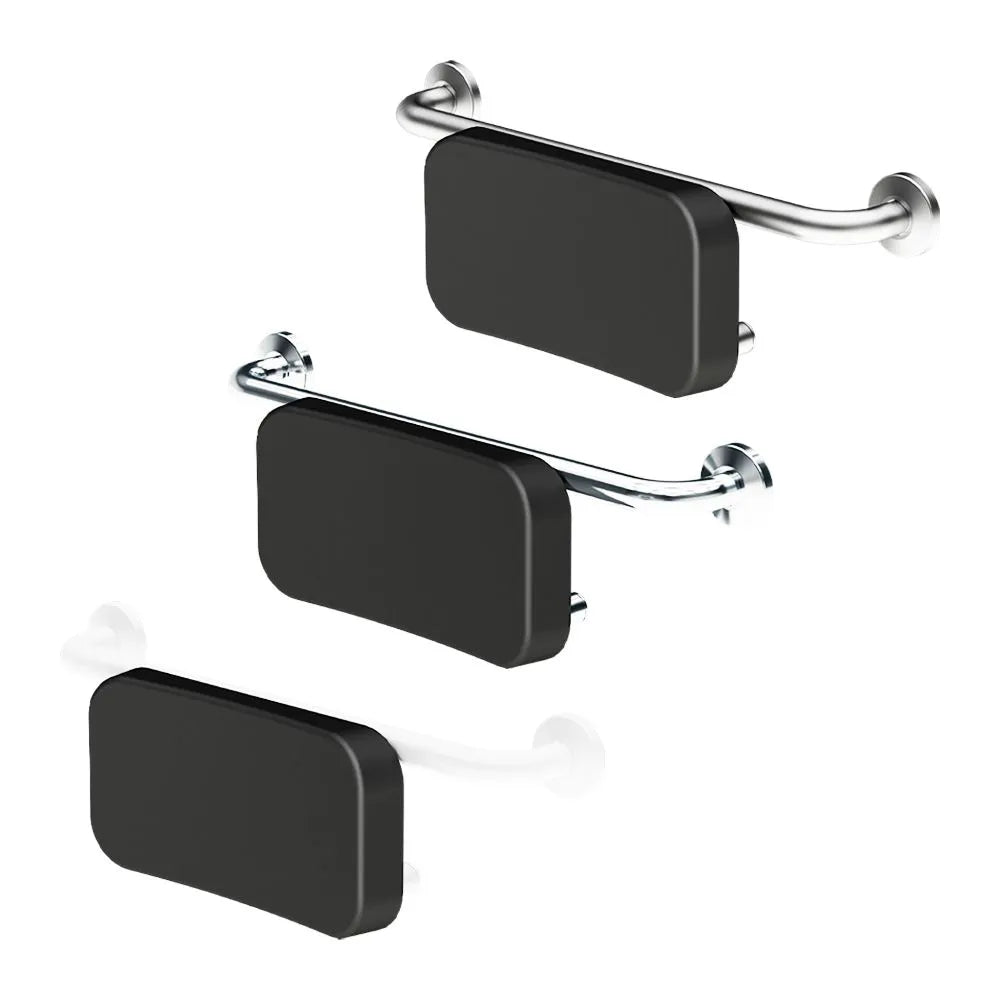

Model Variants and Finishes:

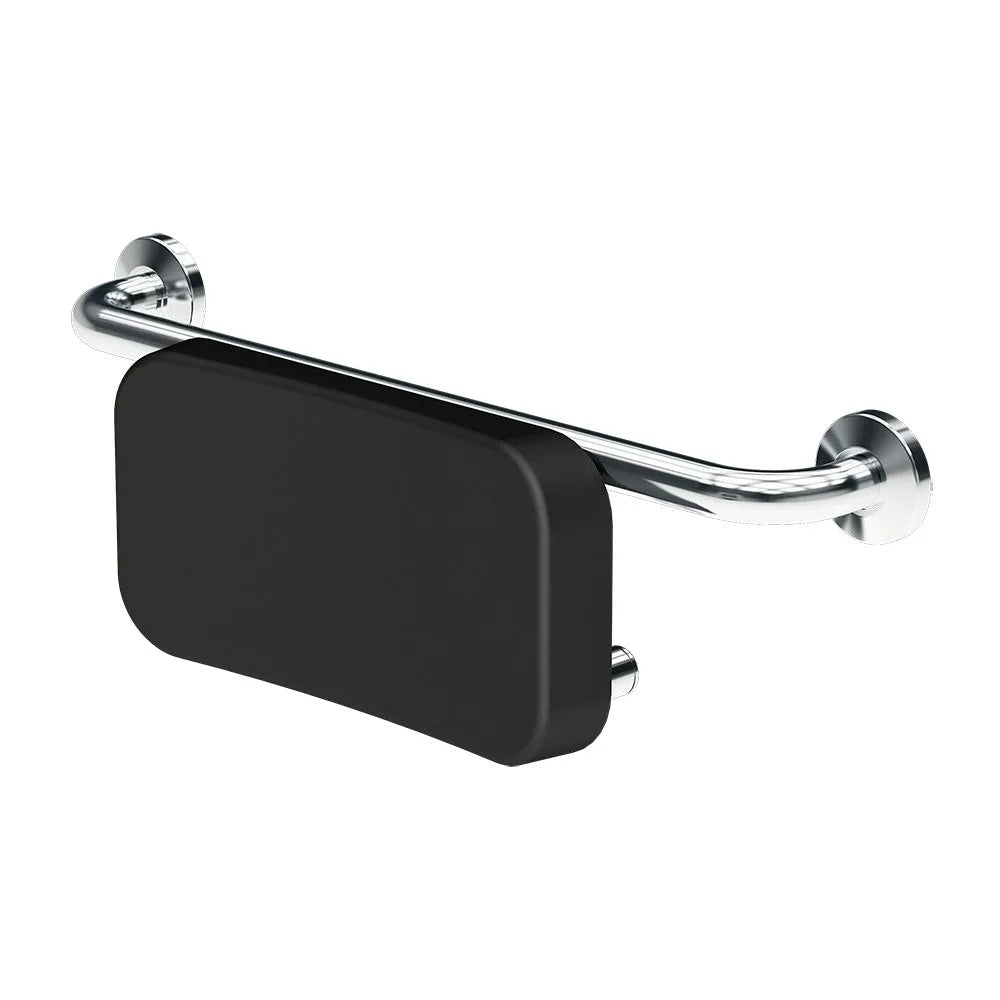

- ASA-SLZM 22: Stainless steel AISI 304, polished finish (glossy)

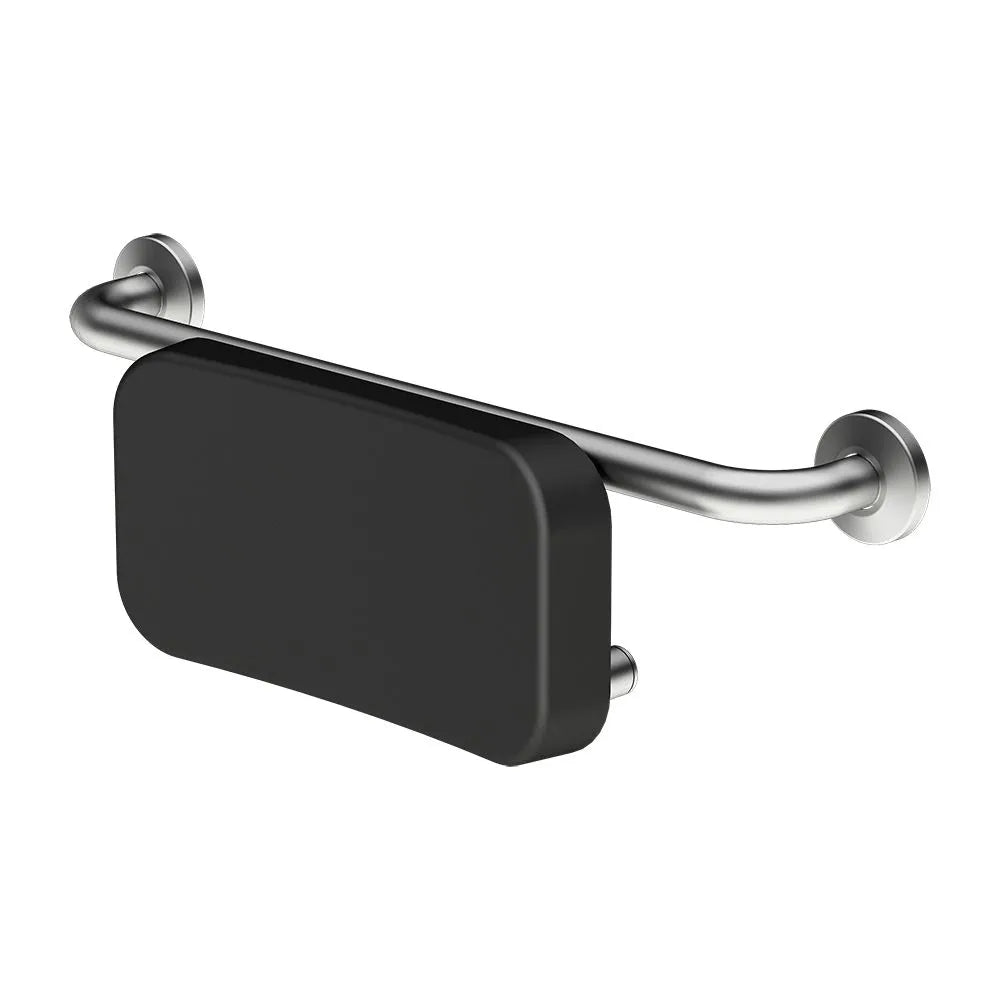

- ASA-SLZM 22X: Stainless steel AISI 304, matte brushed finish (satin)

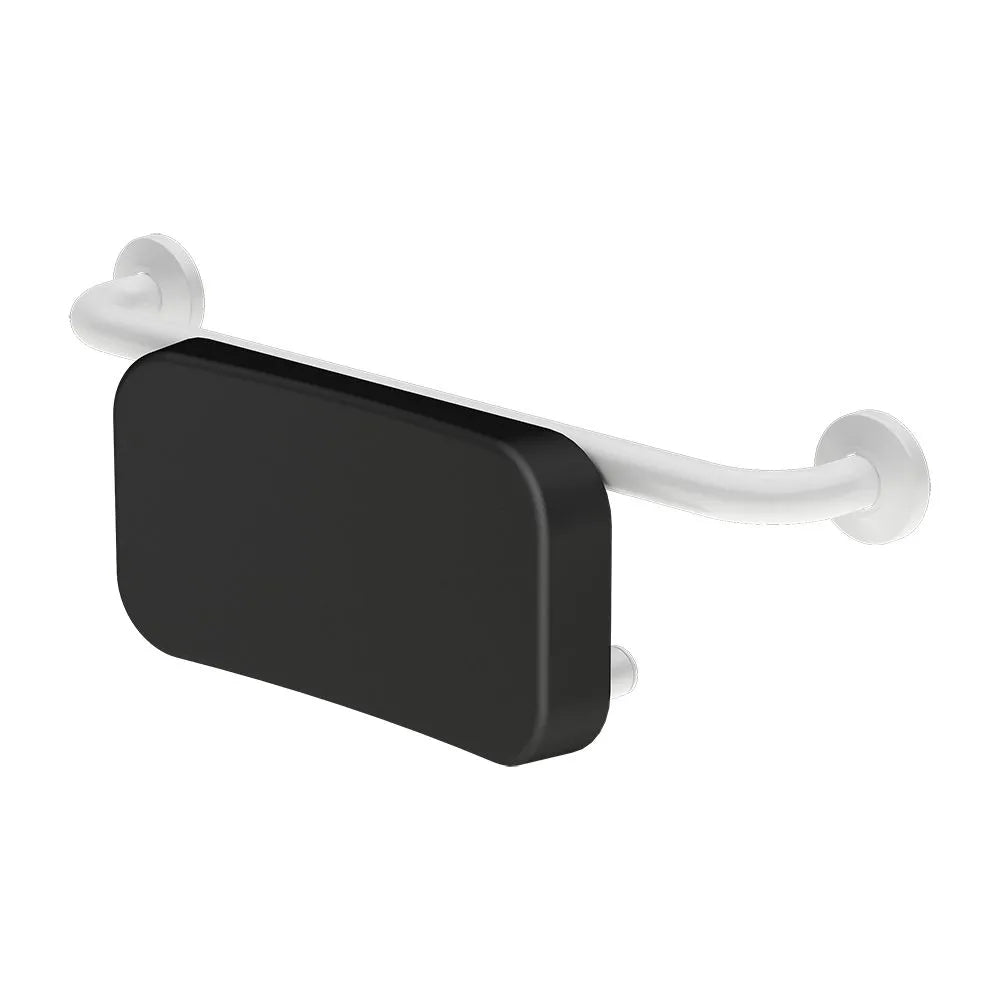

- ASA-SLZM 22W: Steel, white powder-coated finish (Komaxit)

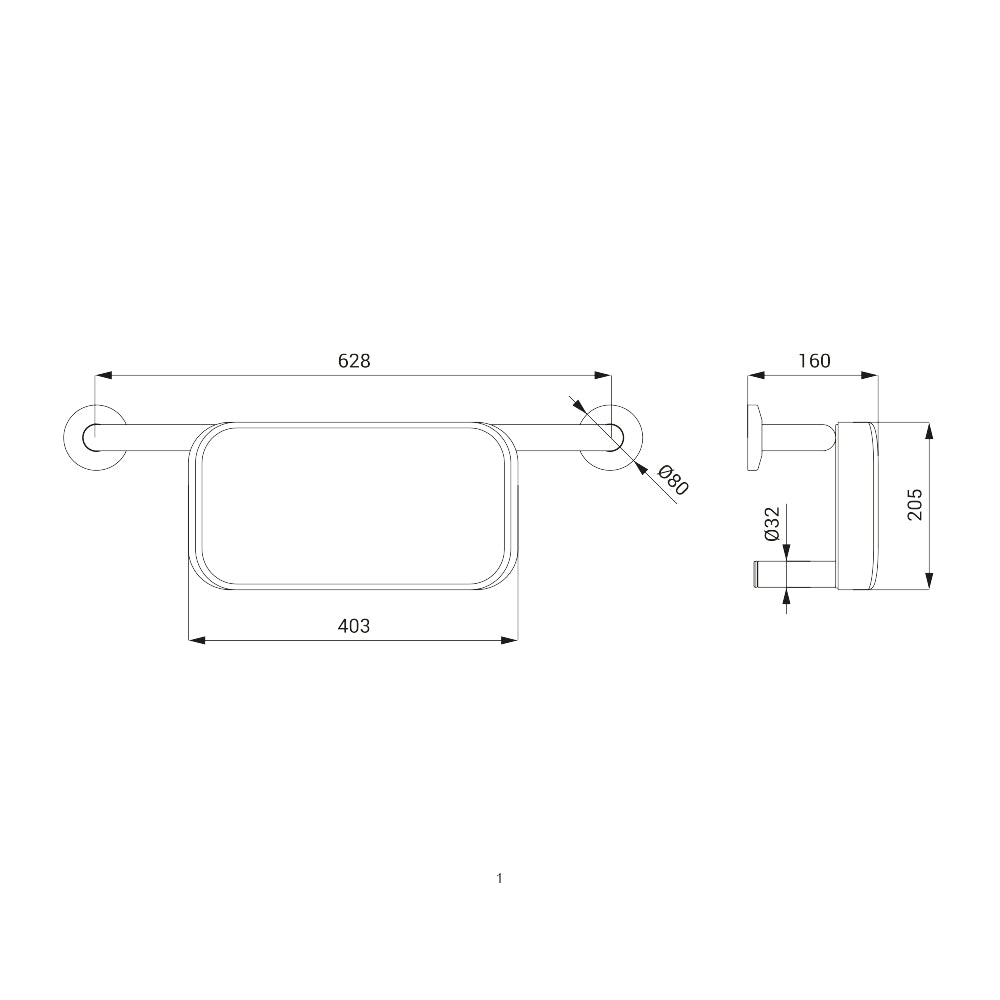

Technical Specifications:
- Total length (width): 700 mm
- Tube diameter: 32 mm
- Material (SLZM 22 / 22X): Stainless steel AISI 304 (V2A)
- Material (SLZM 22W): Powder-coated steel
- Backrest color: Black
- Backrest material: Polyurethane (PU)
- Mounting type: Wall-mounted using flange

The Sanela SLZM 22 series back supports are specifically designed for barrier-free sanitary facilities and
provide additional safety and comfort for individuals with limited mobility.
The series includes three different surface finishes for optimal coordination with the respective room design:
polished stainless steel (SLZM 22), matte brushed stainless steel (SLZM 22X), and white powder-coated
steel (SLZM 22W).
All models feature an ergonomically shaped backrest made of black polyurethane, which offers comfortable
support and is particularly easy to clean and hygienic.
The robust tubular construction with a diameter of 32 mm ensures high load-bearing capacity and durability
even with intensive use in public or medical facilities.
Thanks to the concealed fastening points on the mounting flanges, a clean appearance is achieved, which
also offers effective protection against unauthorized disassembly and vandalism.
With a standard width of 700 mm, these back supports are ideal for installation behind toilet facilities in
hospitals, nursing homes, and accessible toilets in public buildings.
The corrosion-resistant materials guarantee a permanently appealing appearance and meet the high demands
for hygiene and safety in modern sanitary facilities.
