• A-35022

PRESTO | A-35022

Self-closing basin tap for wall mounting up to 220 mm wall thickness

Self-closing basin tap for wall mounting up to 220 mm wall thickness

Awaiting stock, shipping soon
CHF 791.00
CHF 791.00
plus VAT | Shipping calculated at checkout.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

A-35022

Downloads

Datasheet

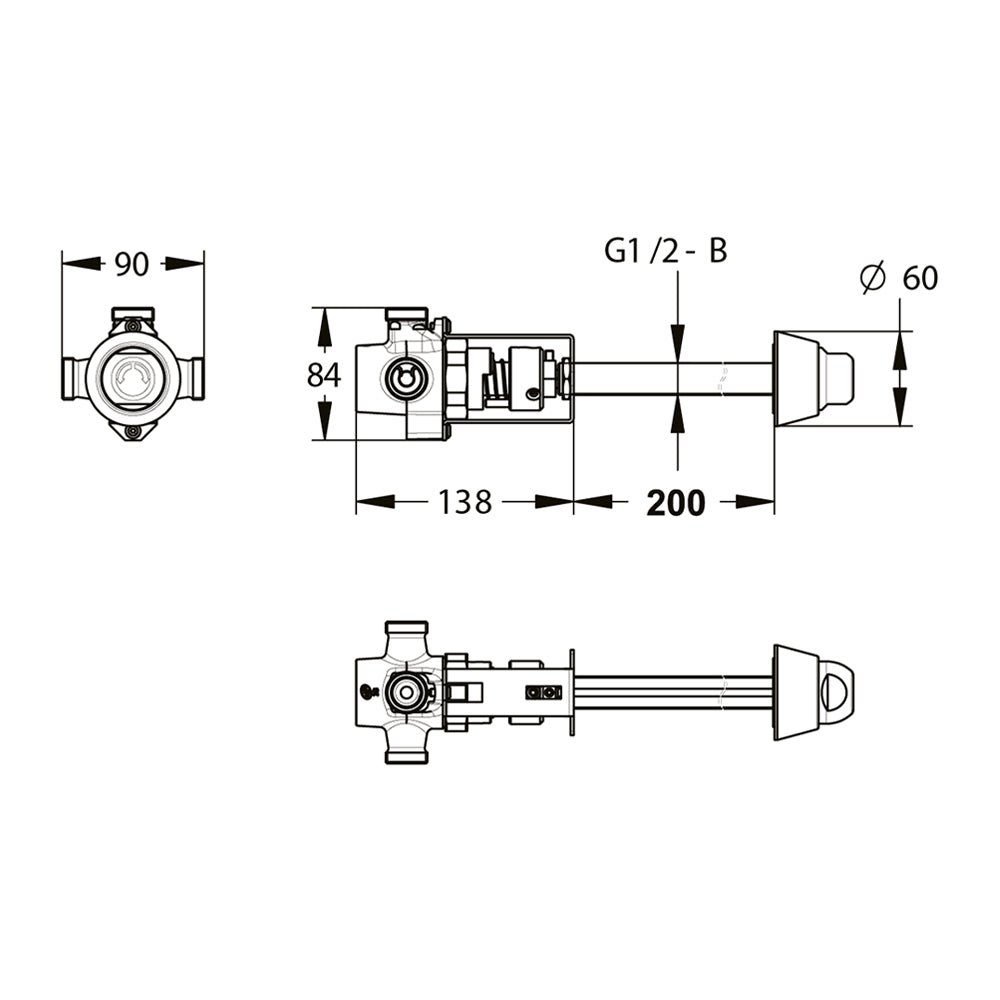

Technical Drawing

Description

Operating pressure: 1 to 5 bar
Water flow rate: 6 l/min at 3 bar with integrated flow limiter
Water hammer damper
Duration: 15 seconds
Body made of chrome-plated brass
Chrome-plated metal knob
G1/2 cross wall, cuttable sleeve from 10 to 220 mm and adjustable
Mounting plate made of stainless steel 304
Resistant to a temperature of 75 °C during 30-minute thermal shocks
Scalding protection: Limitation of the maximum temperature by means of a feature inaccessible to the user.
Vandalism-proof flow regulator system
Body made of chrome-plated brass according to NF EN1982/ NF EN 12164 / NF EN 12165
Shaped, chrome-plated body according to NF EN12540
200 hours resistance to neutral salt spray (NSS) according to ISO 9227

Hydraulic connection:
- MG 3/4'' (20x27) inlet for cold and hot water
- MG 1/2'' (15x21) inlet for outlet
- Integrated NF check valves

Included in the delivery:
- 2 filter seals
- 1 cross seal, cuttable from 10 to 200 mm
- 1 single-lever mixer tap for washbasins
- 1 anti-rotation device for the outlet (installation in the technical channel)
- 1 flow regulator (6 l/min)
