• ASA-SLP-49B

SANELA | ASA-SLP 49B

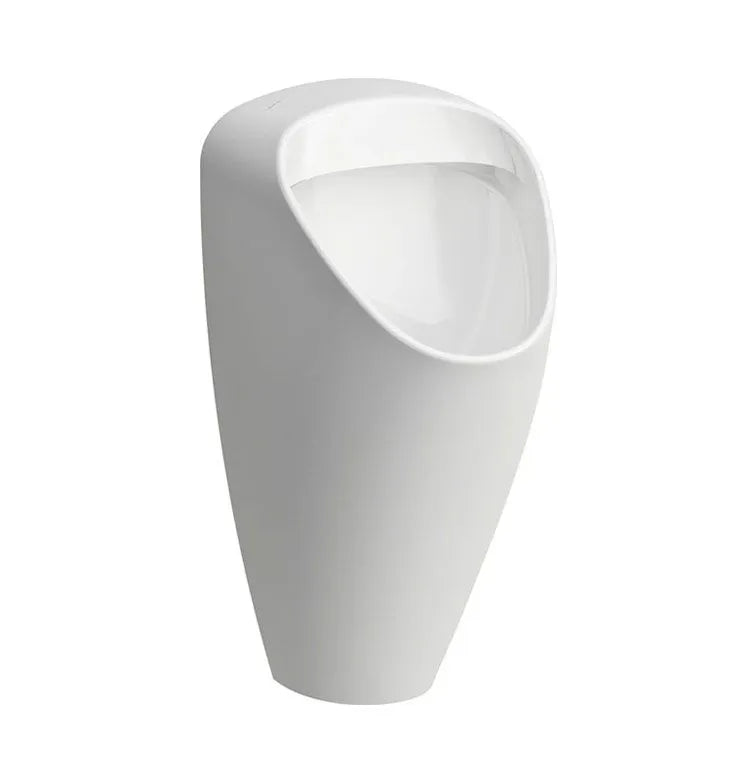

Rimless Caprino Plus urinal with integrated radar flush | 6V

Rimless Caprino Plus urinal with integrated radar flush | 6V

Awaiting stock, shipping soon
CHF 1,231.00
CHF 1,231.00
plus VAT | Shipping calculated at checkout.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ASA-SLP 49B

Description

Ceramic urinal with radar technology (Plug & Play)
1-liter flush volume including trap
Automatic hygienic flush after 6 hours
Touchless flush
Flush time: 0.5 – 15.5 seconds, individually adjustable
Easy installation with template
Flush unit mounted behind the urinal
Inlet and outlet at the rear
Settings via Bluetooth Control App or remote control SLD04 (optional)
Flow rate adjustable via ball valve
Flush unit: with flush unit
Flush volume: 1 liter per flush (incl. trap)
Control: Radar
Power supply: 4x 1.5 V - 2700 mAh batteries (included)
Variant: Urinal with radar flush
Water outlet: Water inlet with rubber seal, rear, Ø 50 mm
Water inlet: G 1/2" external thread, from the rear

Scope of delivery: Ceramic urinal with radar flush including Bluetooth module, solenoid valve,
connection hose, angle valve with filter and non-return valve, water inlet with rubber seal, trap,
mounting kit, 4 pcs. alkaline batteries 1.5 V, 2700 mAh with battery holder

Caprino Plus Rimless Urinal by Laufen (ASA-SLP 49B)– more elegant, rimless advancement of the Caprino series with integrated radar flush.

Advantages

  • Rimless design without dirt traps at the basin edge – more hygienic and easier to clean than classic urinals with a rim
  • More elegant, reduced design than the basic Caprinomodel – suitable for prestigious reception areas, hotels, and offices
  • Touchless radar flush with automatic hygiene flush after 6 hours of non-use
  • 1-liter flush volume including siphon – economical water consumption for high-traffic use
  • Flush duration continuously adjustable from 0.5–15.5 sec., controlled via Bluetooth Control App or optional SLD04 remote control
  • Battery operation with 4× 1.5V batteries included – version with mains connection (24V) available upon request
  • Plug & Play, complete flushing unit including siphon mounted behind the urinal

Limitations

  • For those looking for an independent design line instead of the Caprino design language: LEMA Urinal
  • No partitions included – choose separately from our urinal partition collection
Share product on

Downloads

Datasheet

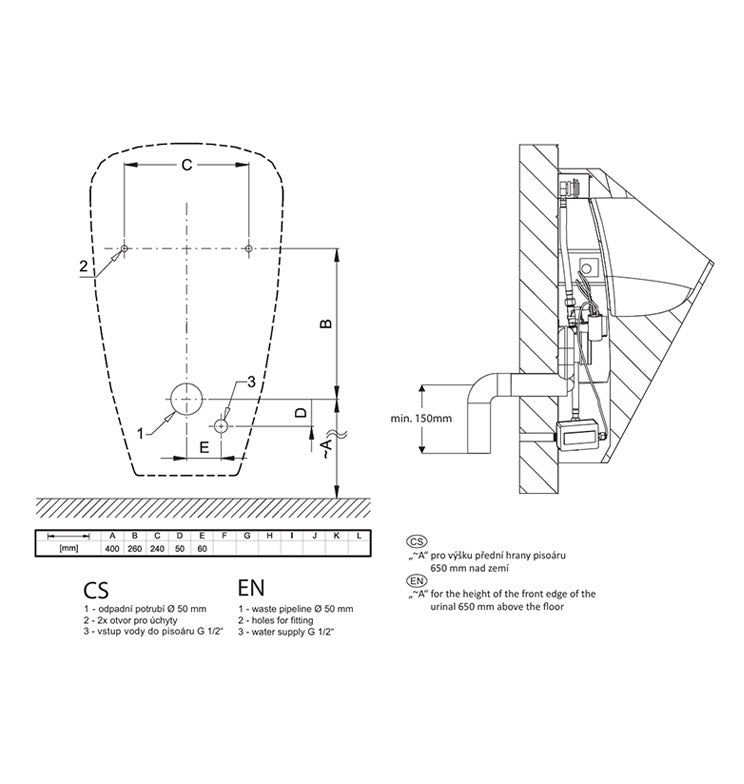

Technical Drawing
Assembly Instructions
