• ASA-SLZA 20PH

SANELA

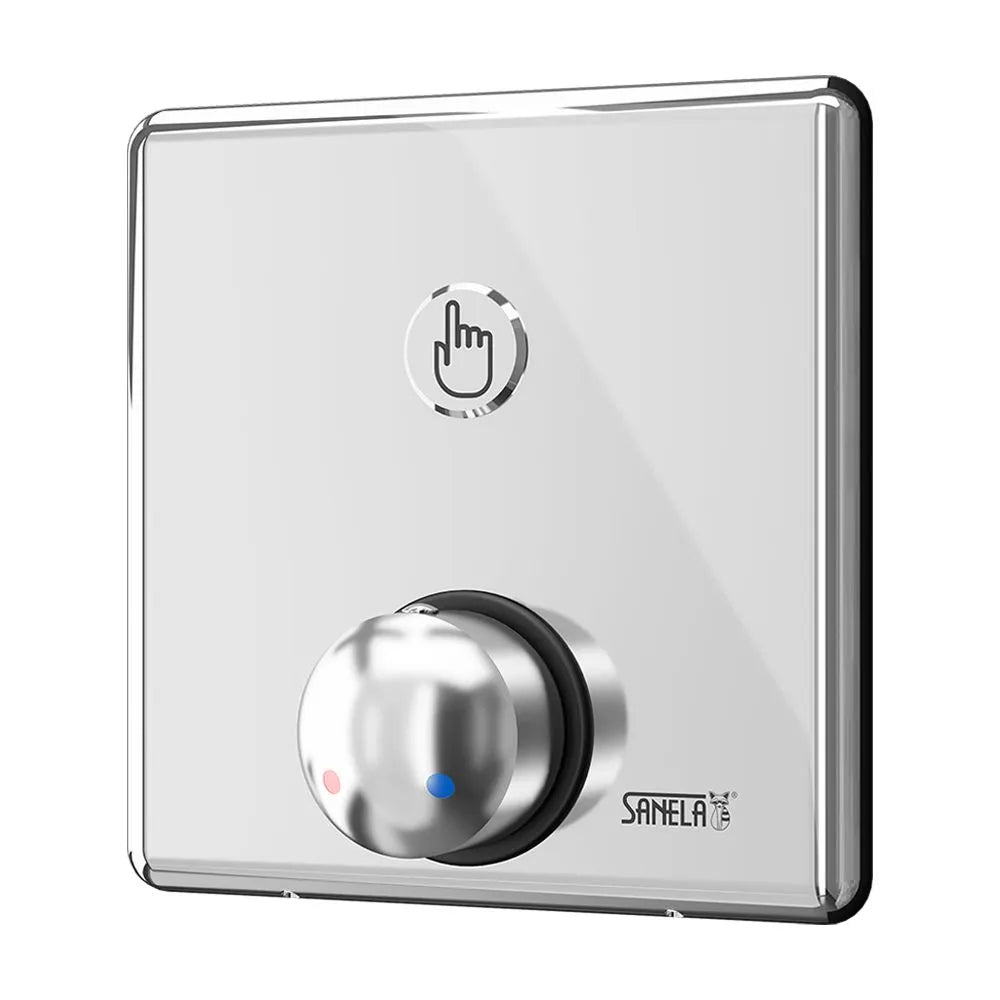

Concealed shower control with piezo button and mixer

Concealed shower control with piezo button and mixer

Awaiting stock, shipping soon
CHF 605.00
CHF 605.00
plus VAT | Shipping calculated at checkout.

Pay securely with

Twint PayPal Visa Maestro American Express Apple Pay Generic

ASA-SLZA 20PH

Downloads

Datasheet

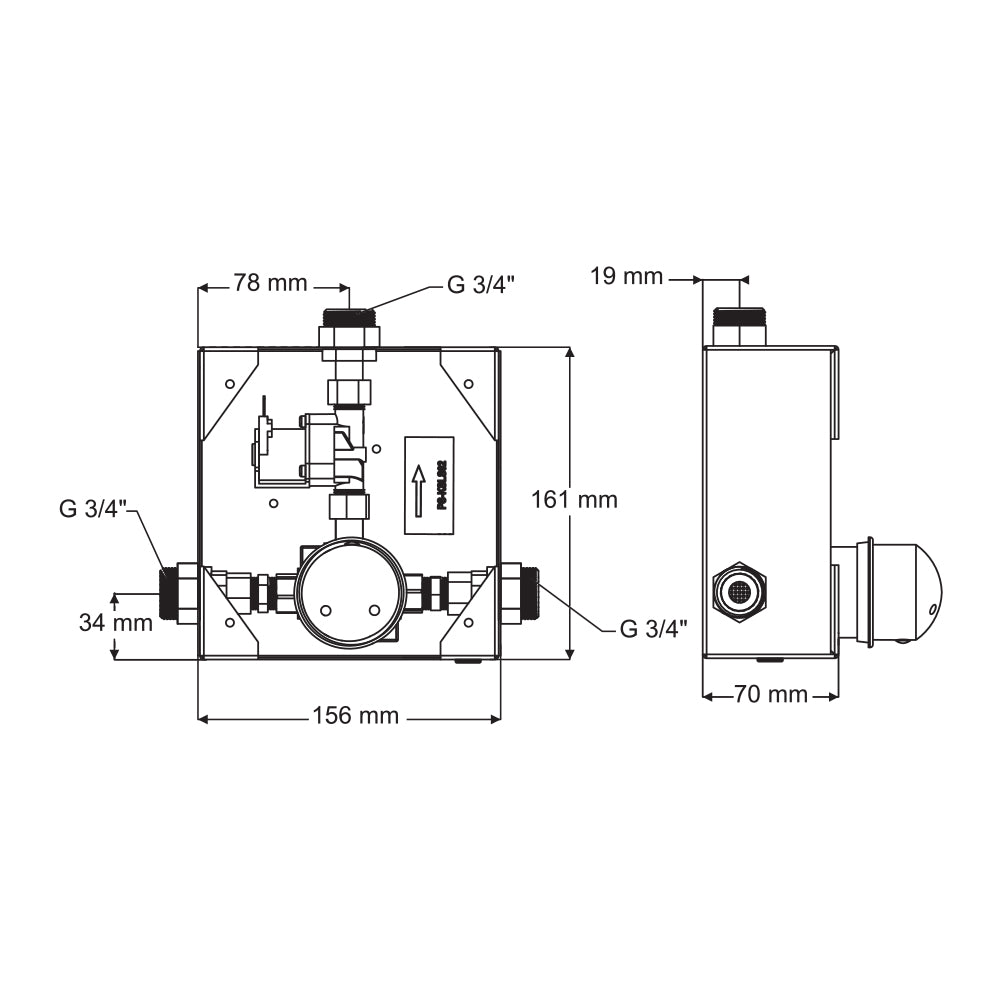

Technical drawing
Assembly instructions

Product features

Connection
  • 3/4"

Water supply
  • Cold and hot water

How water works
  • electronically self-closing

power supply
  • 24V with transformer

material
  • stainless steel

Color
  • Stainless steel, matte/satin finish

Description

- Vandal-proof concealed control unit for coin- and token-operated timers with index N.
- Designed for cold and hot water with temperature control via a manual mixer.
- Activation and water flow control via integrated piezo button.
- High-quality cover plate made of AISI-304 stainless steel, matte brushed surface.
- Durable construction for heavily used shower facilities.

Technical details:
Stainless steel cover plate dimensions: 170 x 170 x 10 mm
Concealed wall box dimensions: 155 x 160 x 70 mm
Recommended water pressure: 0.1 - 0.6 MPa
Flow rate: 12 l/min. (approx. data)
Water inlet: G 3/4" male thread
Water outlet: G 3/4" male thread

Scope of delivery: Stainless steel cover plate with piezo button, manual mixer, concealed installation housing, solenoid valve, connection hoses, mounting material.
