• ASA-SLS 02P

SANELA | ASA-SLS 02P

Concealed Shower Control with Thermostat, piezo-controlled, 24 V DC

Concealed Shower Control with Thermostat, piezo-controlled, 24 V DC

Awaiting stock, shipping soon
CHF 554.00
CHF 554.00
plus VAT | Shipping calculated at checkout.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ASA-SLS 02P

Downloads

Datasheet

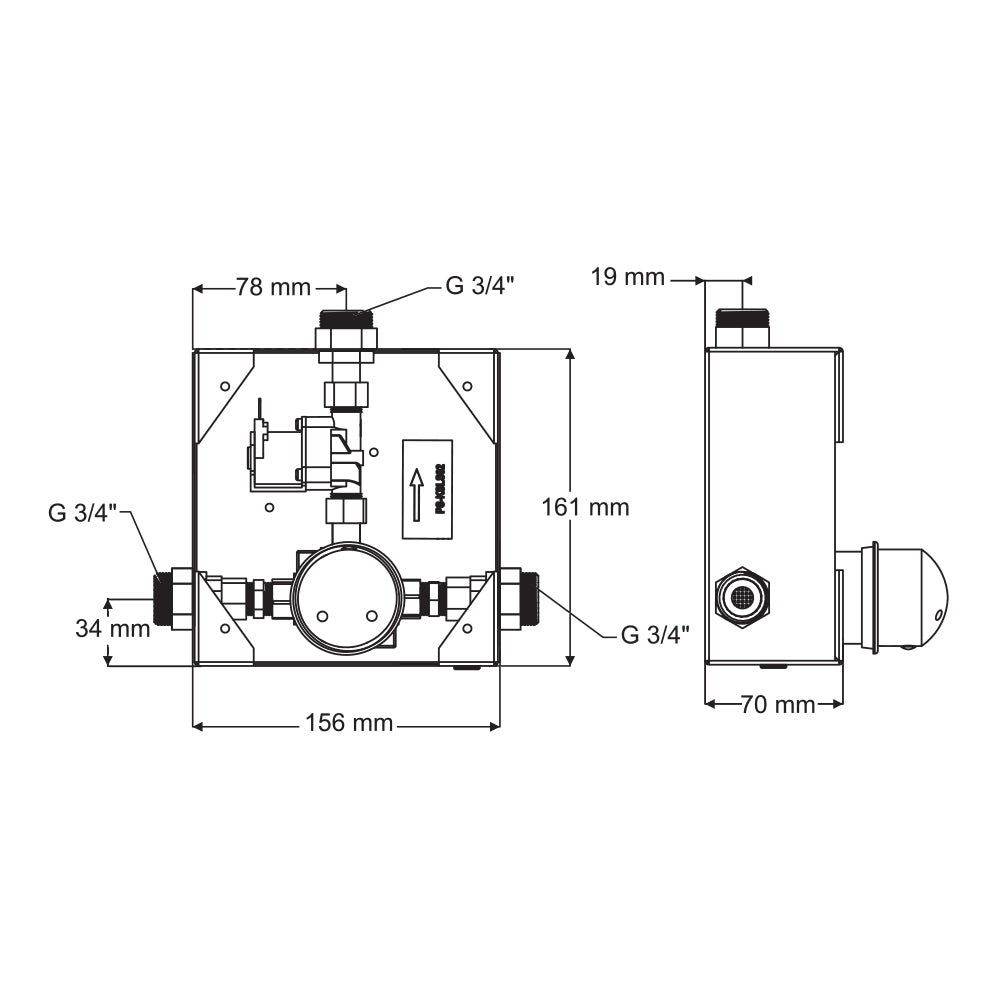

Technical Drawing
Assembly Instructions

Description

- hygienic flush
- vandalism-proof design
- concealed shower control with connection to cold and hot water, temperature regulation via mixer
- water flows after light pressure on the piezo button
- water flow ends automatically after a set time (adjustable from 10 s to 310 s), factory preset 120 s
- water flow ends with repeated light pressure on the piezo button
- usage parameters adjustable with remote control SLD 04

Technical details:
- Material: stainless steel
- Temperature regulation: with mixer
- Operating voltage: 24V DC
- Control: piezo
- Dimensions of stainless steel cover plate: 170 x 170 x 10 mm
- Dimensions of concealed wall box: 155 x 160 x 70 mm
- Power consumption: 7 W
- Recommended water pressure: 0.1 - 0.6 MPa
- Flow rate: 12 l/min. (inf. Data)
- Water inlet: external thread G 3/4"
- Water outlet: external thread G 3/4"

Scope of delivery: stainless steel cover plate with electronics, stainless steel concealed wall box, solenoid valve, ball valve and mixer
