• ASA-SLS 02PB

SANELA | ASA-SLS 02PB

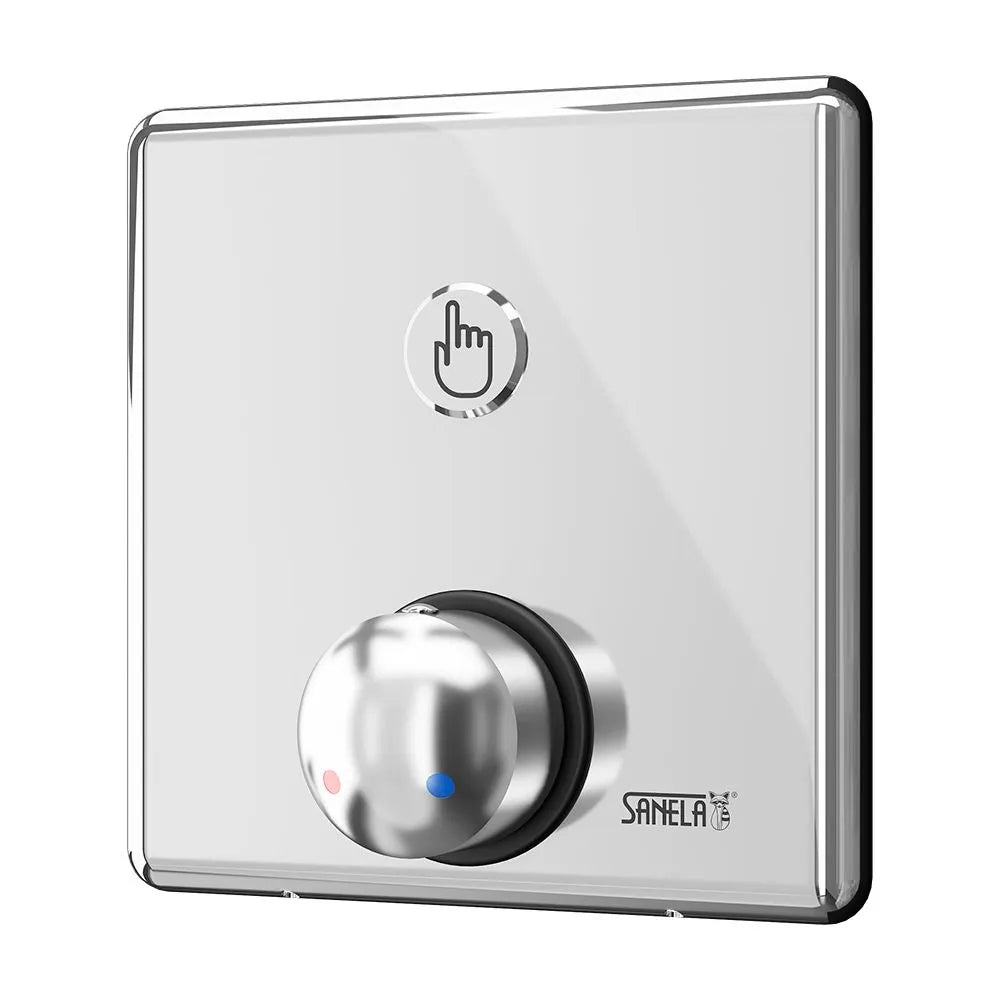

Concealed shower control with temperature regulator, piezo-controlled, 6 V

Concealed shower control with temperature regulator, piezo-controlled, 6 V

Awaiting stock, shipping soon
CHF 667.00
CHF 667.00
plus VAT | Shipping calculated at checkout.

Delivery in approx. 2–3 weeks.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ASA-SLS 02PB

Description

- Hygienic flush
- Vandal-proof design
- Concealed shower control with hot and cold water connection, temperature regulation via mixer
- Water flows after light pressure on the piezo button
- Water flow ends automatically after a set time (adjustable from 10 to 310 seconds), factory setting 120 seconds
- Water flow ends with repeated light pressure on the piezo button
- Battery status indicator
- Usage parameters adjustable with remote control SLD 04

Technical details:
- Material: Stainless steel
- Temperature regulation: with mixer
- Operating voltage: Battery
- Control: piezo
- Dimensions of stainless steel cover plate: 170 x 170 x 10 mm

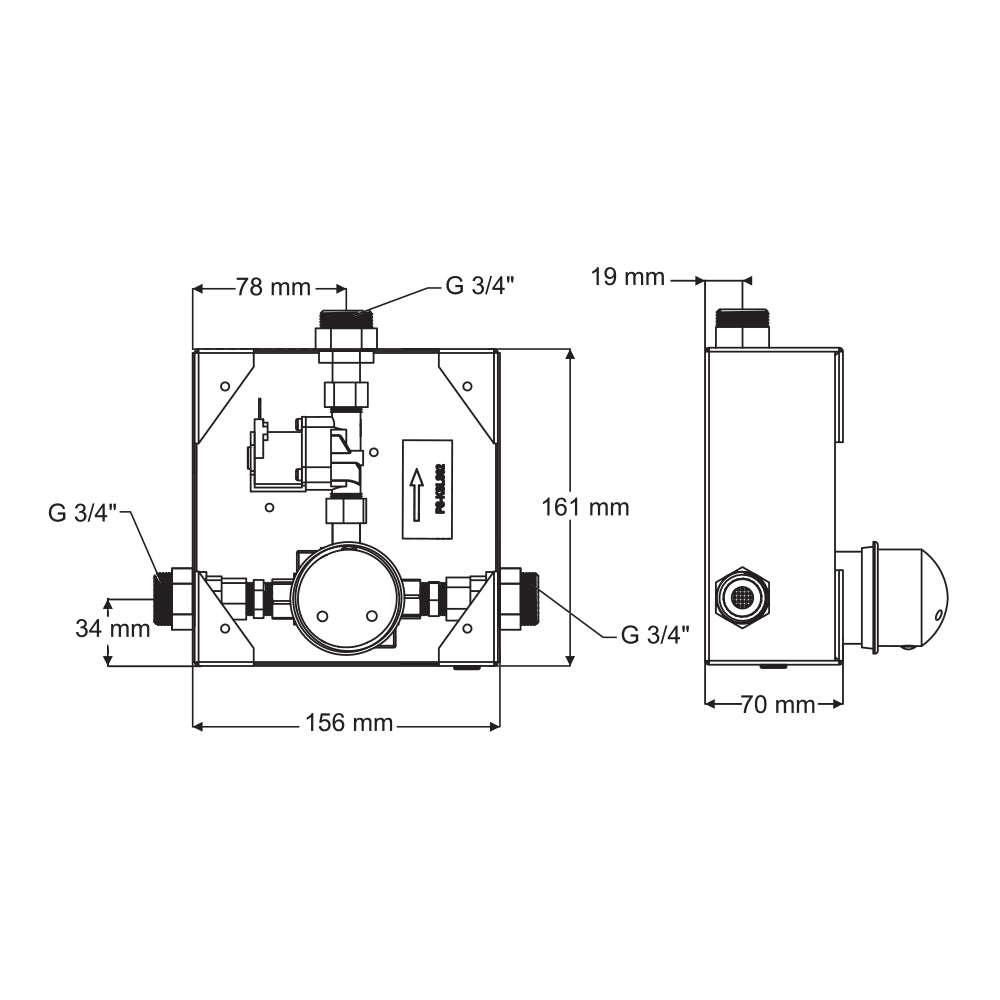

- Dimensions of concealed wall box: 155 x 160 x 70 mm
- Operating voltage: 6 V
- Battery life: alkaline battery (4 pcs.) AA type 1.5 V/2700 mAh (approx. 2 years (100 uses per day))
- Recommended water pressure: 0.1 - 0.6 MPa
- Flow rate: 12 l/min. (approx. data)
- Water inlet: External thread G 3/4"
- Water outlet: External thread G 3/4"

Scope of delivery: Stainless steel cover plate with electronics, stainless steel concealed wall box, solenoid valve, ball valve and mixer, 4 pcs. alkaline battery AA type 1.5 V/2700 mAh

Share product on

Downloads

Datasheet
Technical Drawing
Assembly Instructions
Concealed shower control with temperature regulator, piezo-controlled, 6 V
