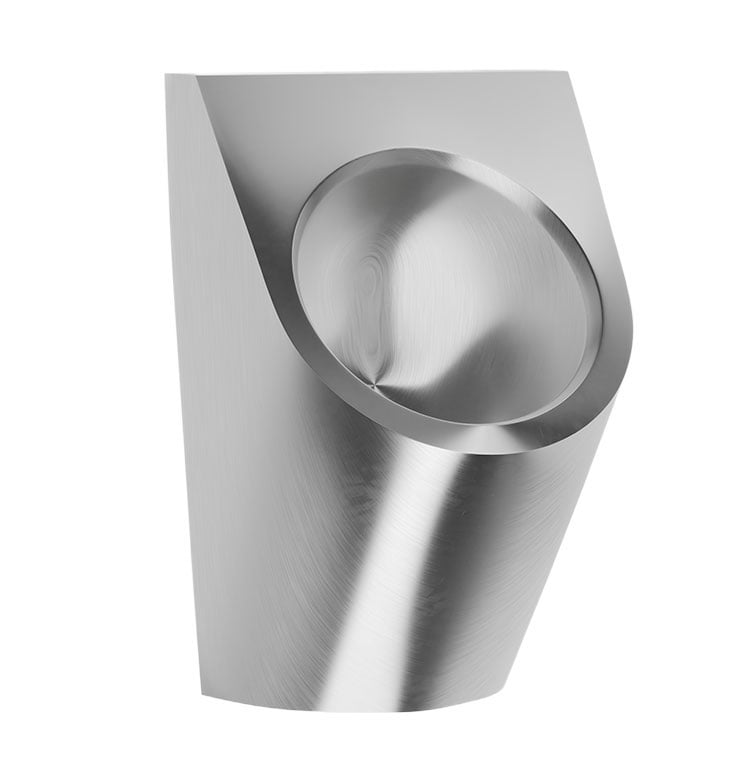

Wall-mounted, maintenance-free urinal for heavily frequented public WCs
AISI 304 stainless steel, satin finish (optional: mirror polished)
Material thickness: 1.5 mm
Vandal-proof, maintenance flap with Torx security screws
With outlet elbow, horizontal 1 1/2“ (DN 40).
Simple front mounting, robust
With silicone membrane as odour trap
Daily flushing with 2 litres of water necessary to protect the pipes and lines
Width: 360 mm
Height: 550 mm
Depth: 325 mm
Files and downloads:
| Data sheet: | |

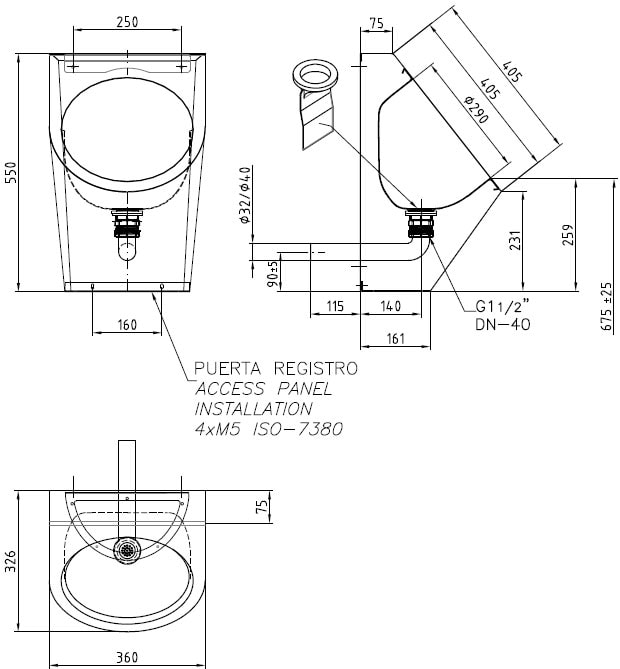

| Technical drawing: | |
| Installation: |
