• AIDRA-01221

Armatron AG

KIDS WALL-MOUNT. LEVER-OP. BASIN MIXER

KIDS WALL-MOUNT. LEVER-OP. BASIN MIXER

Awaiting stock, shipping soon
CHF 320.00
CHF 320.00
plus VAT | Shipping calculated at checkout.

Pay securely with

Twint PayPal Visa Maestro American Express Apple Pay Generic

AIDRA-01221

Downloads

Datasheet
Technical drawing

Product features

Connection
  • 1/2"

Wall/washbasin spout
  • Wall-mounted spout

Water supply
  • Cold and hot water

How water works
  • manually with ceramic cartridge

material
  • Brass

Description

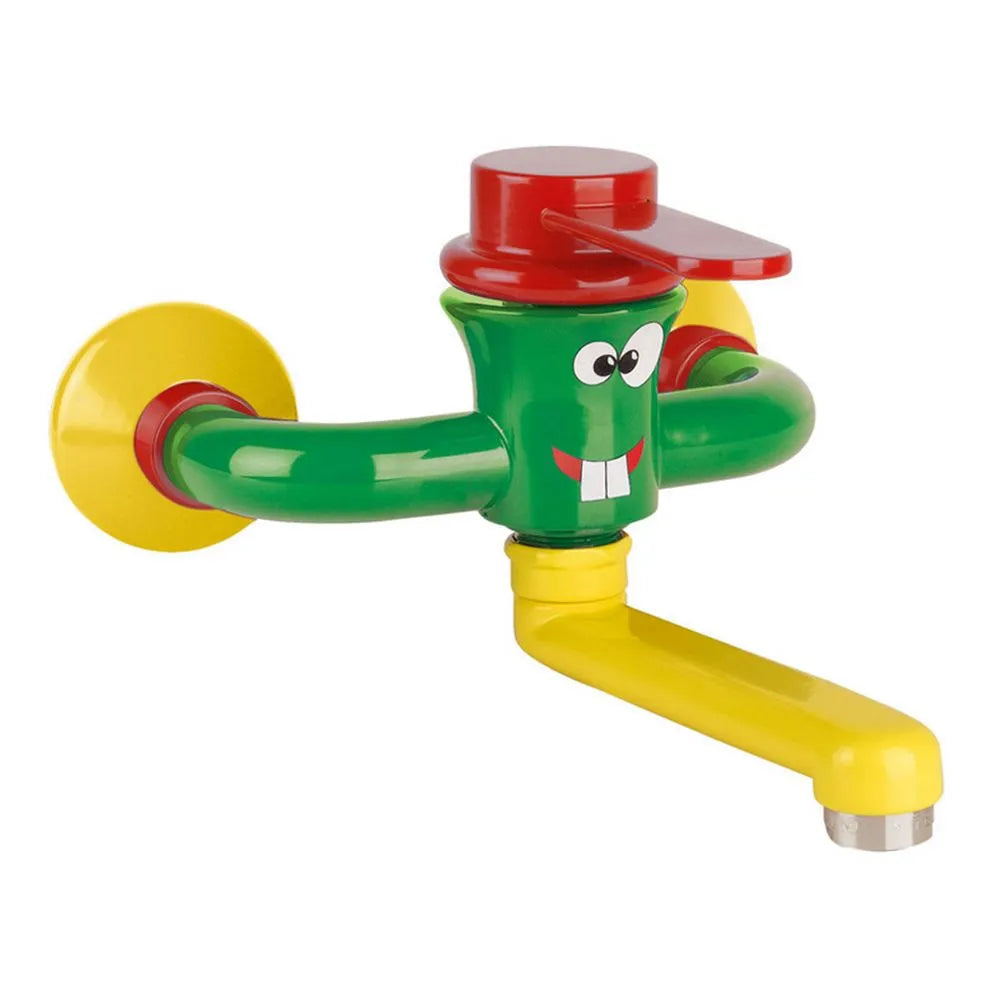

Wall-mounted single-lever mixer tap, specially designed for use in child-friendly environments
Colorful and safe design ideal for schools, kindergartens, and homes
Equipped with a high-quality ceramic disc cartridge for precise control
Integrated ECO-STOP function with two opening positions for effective water saving
Mechanical temperature limit via an adjustable ring to prevent scalding
Robust epoxy powder coating for high durability and easy cleaning
Ergonomic control lever for easy handling by children

Technical Specifications:
- Material / Coating: Brass with epoxy powder coating
- Color: Multicolor (Green, Yellow, Red)
- Cartridge: Single-lever mixer cartridge with ceramic discs
- Flow rate: 6 l/min (with integrated restrictor)
- Operating pressure: Min. 1 bar / Max. 5 bar
- Recommended pressure: 2 - 4 bar
- Water temperature: 5 - 65 °C
- Special features: ECO-STOP function, temperature limiter

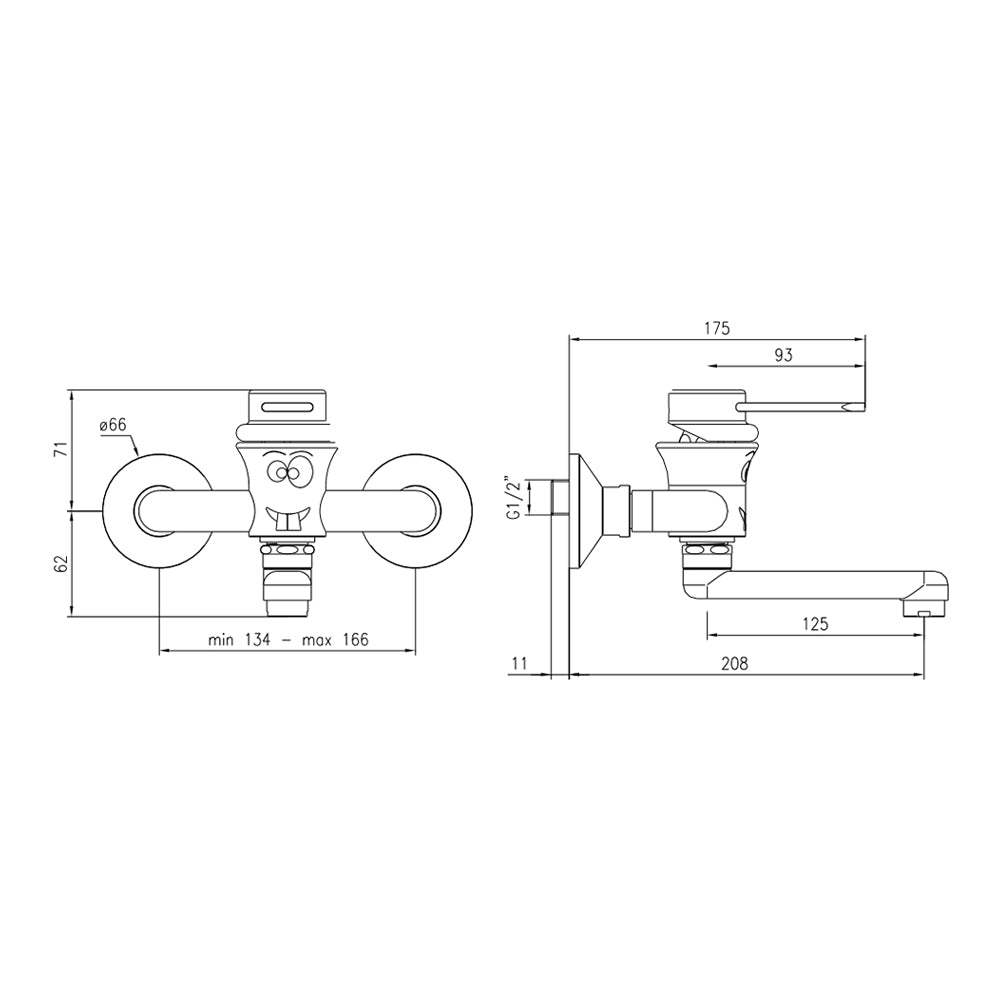

Dimensions:
- Overall projection (wall to end of spout): 208 mm
- Spout length (center of body to end of spout): 125 mm
- Overall body height: 133 mm
- Width (center distance of connections): 134 - 166 mm
- Escutcheon diameter: 66 mm
- Connection size: G 1/2“

The AIDRA-01221 KIDS Single-Lever Basin Mixeris a wall-mounted children's faucet made of brass with colorful epoxy powder coating (green, yellow, red) – single-lever mixer cartridge, ECO-STOP function, 6 l/min flow restrictor. Specially developed for kindergartens and schools.

Advantages

  • Multi-colored design (green, yellow, red) – attractive and child-friendly, promotes handwashing routine.
  • Single-lever mixer cartridge – easy operation for children, durable.
  • ECO-STOP function – water saving, cold water without resistance, hot water with slight pressure point.
  • Temperature limiter – prevents scalding.
  • Integrated flow restrictor 6 l/min – economical water consumption.
  • Operating pressure 1–5 bar, water temperature 5–65 °C.
  • Wall-mounted, exposed installation.
  • KIDS basin faucet as valve (cold water/pre-mixed): AIDRA-01210.
  • KIDS basin faucet as mixer (exposed installation): AIDRA-01212.

Limitations

  • Only wall-mounted, exposed installation.
