SANELA | ASA-SLPN 02EB

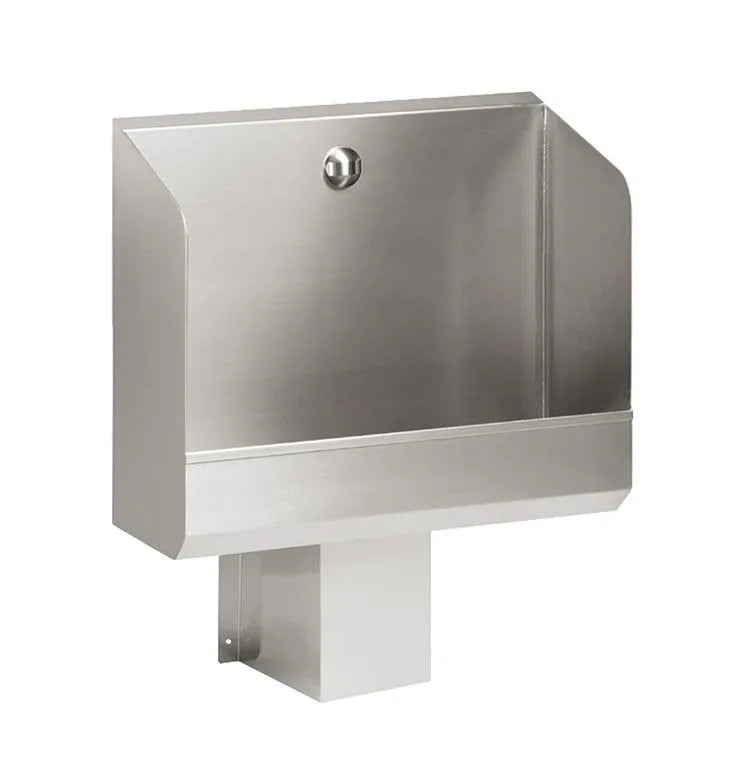

Wall-mounted urinal trough with integrated infrared control, 6V battery

Wall-mounted urinal trough with integrated infrared control, 6V battery

Awaiting stock, shipping soon
CHF 1,529.00
CHF 1,529.00
plus VAT | Shipping calculated at checkout.
Width

Delivery in approx. 2–3 weeks.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ASA-SLPN 02EB

Description

With 1-4 flushing heads
Vandal-proof construction
Contactless flush activation
Automatic hygienic flush after 24 hours of inactivity
Length: 600, 1200, 1800 or 2400 mm (custom sizes available on request)
Each flushing head detects a user within a maximum range of 70 cm and a dwell time of
at least 7.5 seconds
Flush time individually adjustable from 0.5 to 15.5 seconds
Usage parameters can be adjusted with the SLD03 remote control (optional)
Material: Stainless steel AISI 304
Material thickness: 1.5 mm (side panels 2.0 mm)
Surface: Satin
Operating voltage: 6 V
Power supply: 4x 1.5 V battery
Water outlet: Ø 40 mm
Flow rate: 12l/min per flushing head
Water inlet: External thread G 1/2"

Height: 800 mm
Depth: 260 mm

Scope of delivery: Urinal trough with integrated flushing head and electronics, solenoid valve, angle valve with filter, connection hose, mounting kit, siphon cover, siphon, 4 pcs. alkaline batteries AA type 1.5 V/2700 mAh with battery holder

Share product on

Downloads

Datasheet

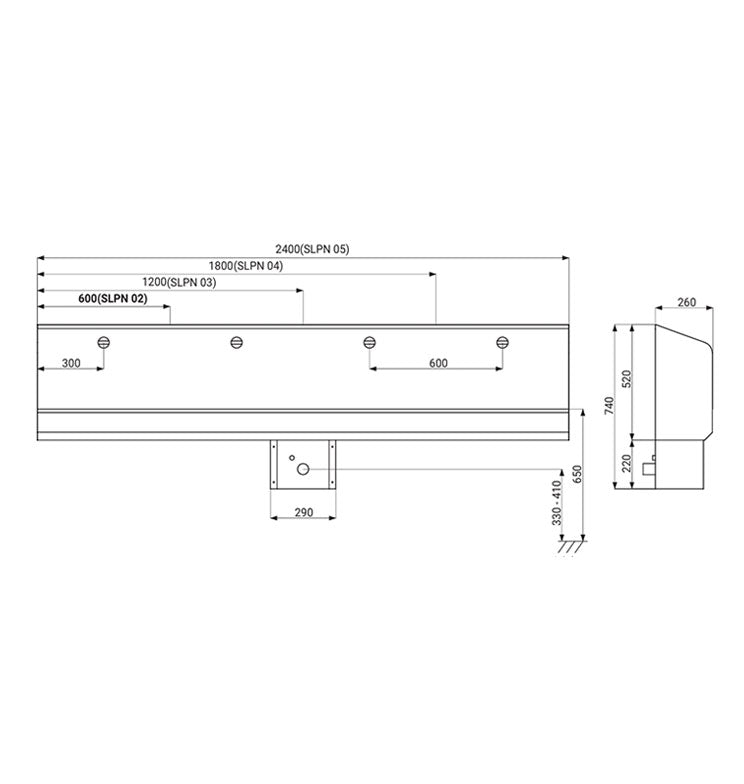

Technical Drawing
Assembly Instructions
