SANELA

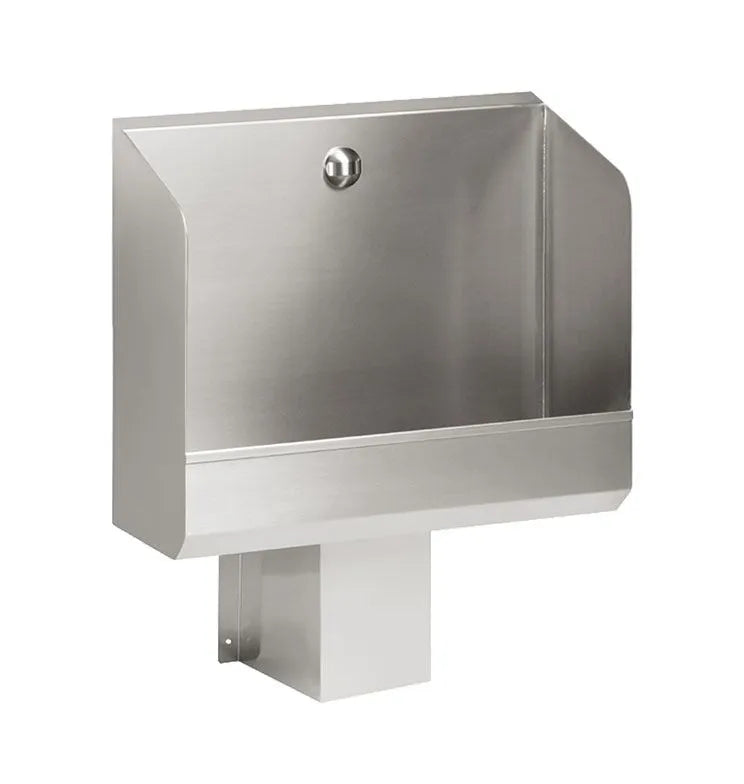

Wall-mounted urinal trough with integrated thermal control, 24V

Wall-mounted urinal trough with integrated thermal control, 24V

Awaiting stock, shipping soon
CHF 1,672.00
CHF 1,672.00
plus VAT | Shipping calculated at checkout.
Width

Pay securely with

Twint PayPal Visa Maestro American Express Apple Pay Generic

ASA-SLPN 02C

Downloads

Datasheet

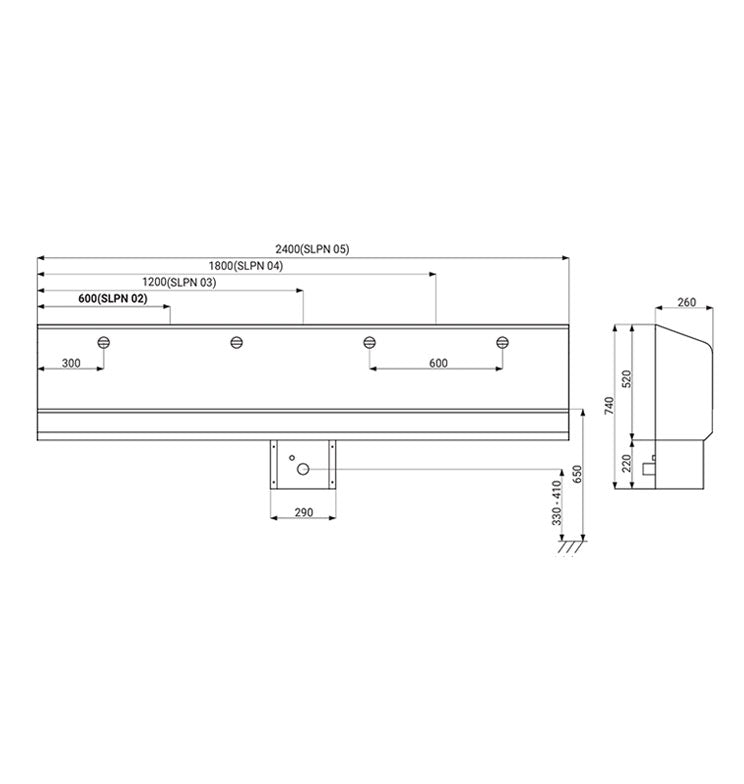

Technical drawing
Assembly instructions

Product features

Equipment
  • 1 spray head
  • 2 spray heads
  • 3 spray heads

Bluetooth
  • with Bluetooth / App

Width
  • 1200 mm
  • 1800 mm
  • 600 mm

power supply
  • 24V with transformer

Urinal flush
  • thermal control integrated

material
  • stainless steel

Color
  • Stainless steel, matte/satin finish

Description

With 1-4 flushing heads
Vandal-resistant construction
Touchless flush activation
Automatic hygienic flush after 6 hours of non-use
Length: 600, 1200 or 1800 mm (custom sizes available on request)
System only reacts to immediate use of the urinal (the system detects changes in fluid level
or flow in the urinal)
Flush time individually adjustable from 0.5 to 15.5 seconds
Usage parameters can be adjusted with the remote control SLD04 (optional)
Material: Stainless steel AISI 304
Material thickness: 1.5 mm (side walls 2.0 mm)
Surface: Satin finish
Operating voltage: 24 V
Power supply: Electric transformer (24V DC)
Water outlet: Ø 40 mm
Flow rate: 12l/min per flushing head
Water inlet: External thread G 1/2“

Height: 800 mm
Depth: 260 mm

Scope of delivery: Urinal trough with integrated flushing head, electronics, electromagnetic valve, angle valve with filter, mounting kit, siphon cover, siphon
