SANELA

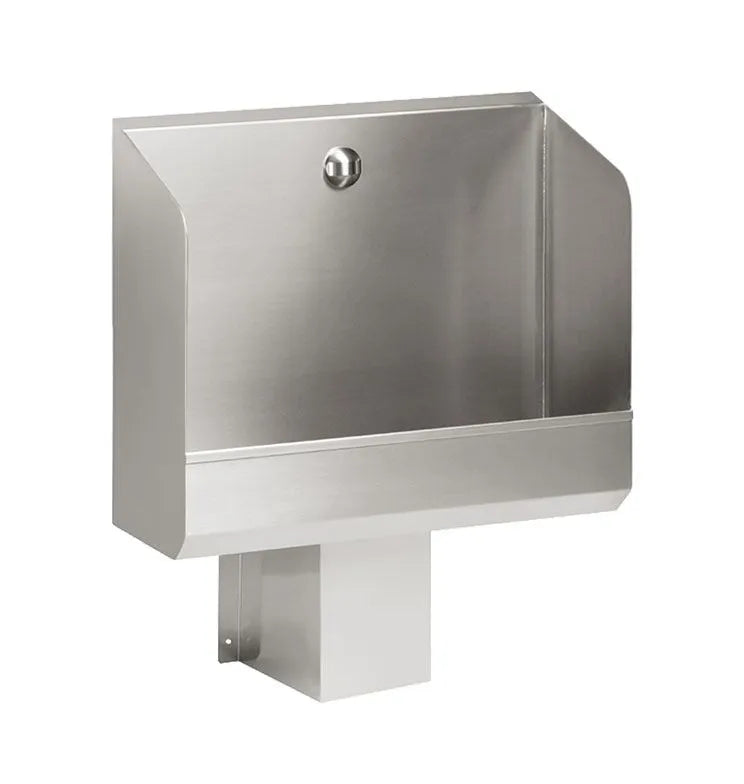

Wall-mounted urinal trough with integrated thermal control, 6V battery

Wall-mounted urinal trough with integrated thermal control, 6V battery

Awaiting stock, shipping soon
CHF 1,672.00
CHF 1,672.00
plus VAT | Shipping calculated at checkout.
Width

Pay securely with

Twint PayPal Visa Maestro American Express Apple Pay Generic

ASA-SLPN 02CB

Downloads

Datasheet

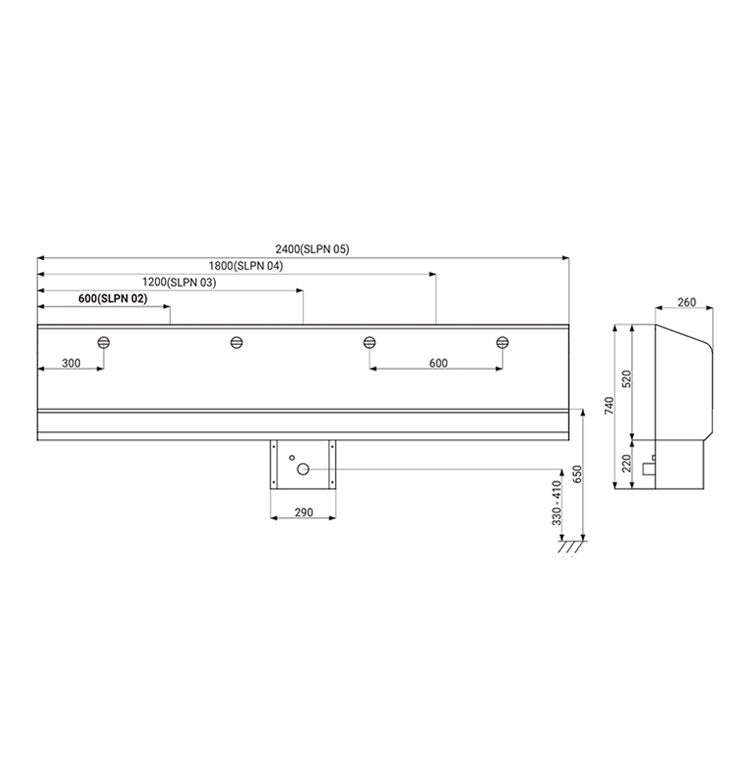

Technical drawing
Assembly instructions

Product features

Equipment
  • 1 spray head
  • 2 spray heads
  • 3 spray heads

Bluetooth
  • with Bluetooth / App
  • without Bluetooth / App

Width
  • 1200 mm
  • 1800 mm
  • 600 mm

power supply
  • 6V Battery Operated

Urinal flush
  • thermal control integrated

material
  • stainless steel

Color
  • Stainless steel, matte/satin finish

Description

With 1-3 flushing heads
Vandal-proof construction
Touchless flush activation
Automatic hygienic flush after 6 hours of non-use
Length: 600, 1200, or 1800 mm (special sizes available on request)
System reacts only to immediate use of the urinal (the system detects changes in the liquid level
or flow in the urinal)
Flush time individually adjustable from 0.5 to 15.5 seconds
Usage parameters can be adjusted with the SLD04 remote control (optional)
Material: Stainless steel AISI 304
Material thickness: 1.5 mm (side walls 2.0 mm)
Surface: Satin-finished
Operating voltage: 6 V
Power supply: 4x 1.5 V batteries
Water outlet: Ø 40 mm
Flow rate: 12l/min per flushing head
Water inlet: External thread G 1/2“

Height: 800 mm
Depth: 260 mm

Scope of delivery: Urinal trough with integrated flushing head, electronics, solenoid valve, angle valve with filter, mounting kit, siphon cover, siphon, 4 pcs AA alkaline batteries, 1.5 V, 2700 mAh
