SANELA

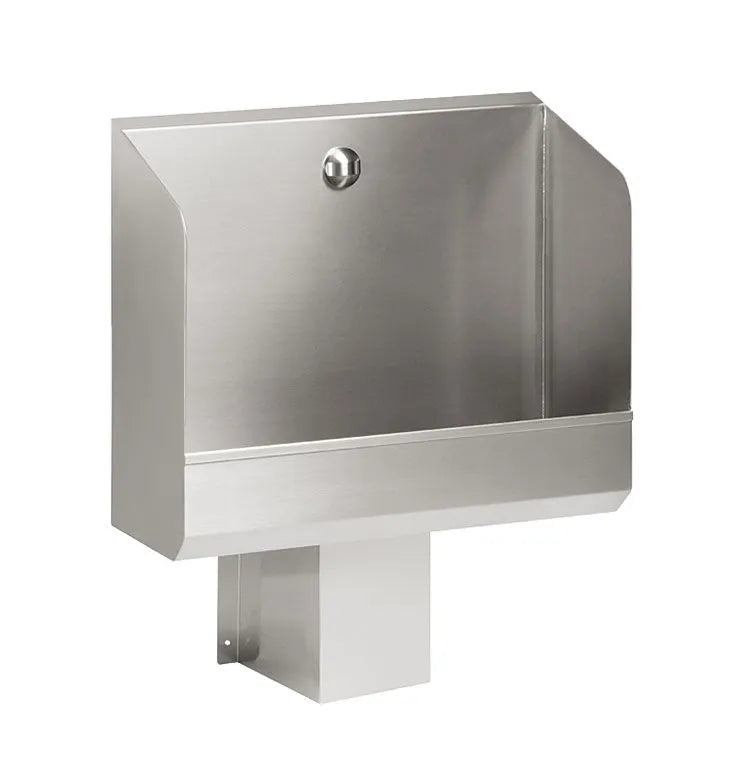

Wall-mounted urinal trough with back panel, without flushing mechanism

Wall-mounted urinal trough with back panel, without flushing mechanism

Awaiting stock, shipping soon
CHF 1,472.00
CHF 1,472.00
plus VAT | Shipping calculated at checkout.
Width

Pay securely with

Twint PayPal Visa Maestro American Express Apple Pay Generic

ASA-SLPN 03

Downloads

Datasheet

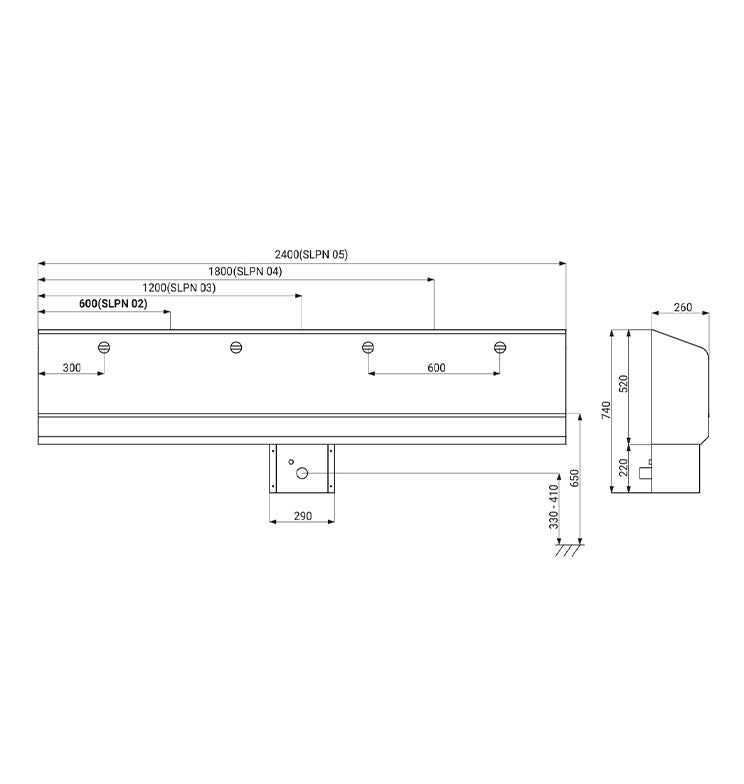

Technical drawing
Assembly instructions

Product features

Equipment
  • 1 wash head
  • 2 wash heads
  • 3 wash heads
  • 4 wash heads

Bluetooth
  • without Bluetooth / app

Width
  • 1200 mm
  • 1800 mm
  • 2400 mm
  • 600 mm

power supply
  • without

Urinal flush
  • not integrated

material
  • stainless steel

Color
  • Stainless steel, matte/satin finish

Description

Design: Robust, vandal-proof construction
Dimensions: Standard lengths 600 / 1200 / 1800 / 2400 mm (special lengths available on request)
Mounting type: Wall mounting
Material: Stainless steel AISI 304
Material thickness: 1.5 mm | Side panels: 2.0 mm
Surface: Matt brushed

Flow rate: 12l/min per flushing head
Water inlet: External thread G 1/2"
Height: 800 mm
Depth: 260 mm
