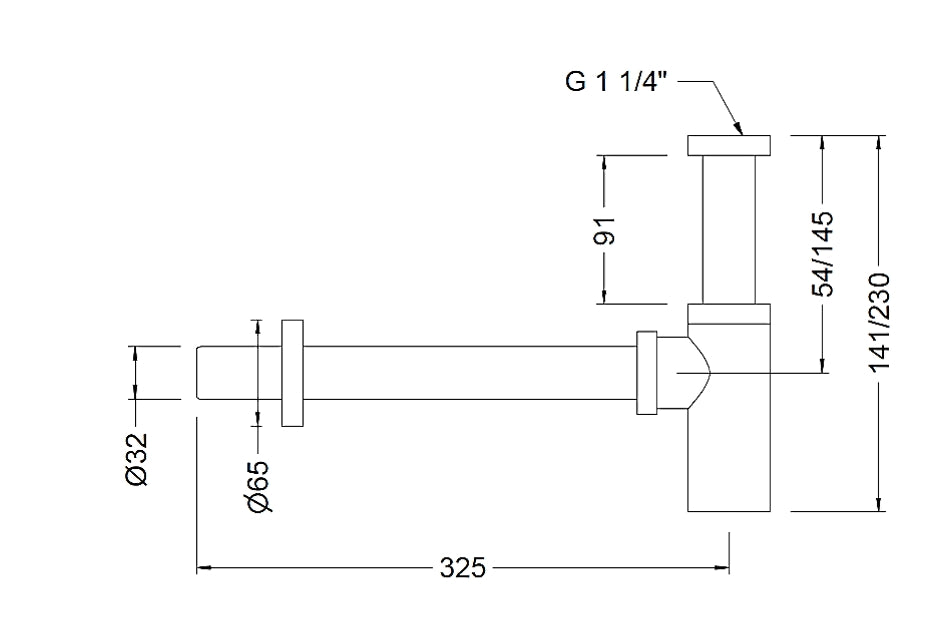

Finish: Brass, brushed matte gold (PVD)
Connection thread: G 1 1/4"
Outlet pipe diameter: 32 mm
Wall rose diameter: 65 mm
Total horizontal length: 325 mm
Total vertical height (adjustable): 141 mm to 230 mm
Immersion depth (adjustable): 54 mm to 145 mm
Distance from outlet center to top edge: 91 mm
Product Description
High-quality bottle trap for use with washbasins and bidets
Made from robust brass CC754S according to European quality standards for a long service life
Elegant design with a matte gold (PVD process) finish for modern bathroom designs
Telescopically adjustable vertical and horizontal connecting pipes allow for flexible adaptation to on-site conditions
Standardized connection thread G 1 1/4 inch for universal compatibility with common drain valves
Integrated lower cleaning plug for easy maintenance and quick removal of blockages
Reliable sealing thanks to high-quality NBR seals for permanently leak-free operation
