SANELA | ASA-SLW 02PA

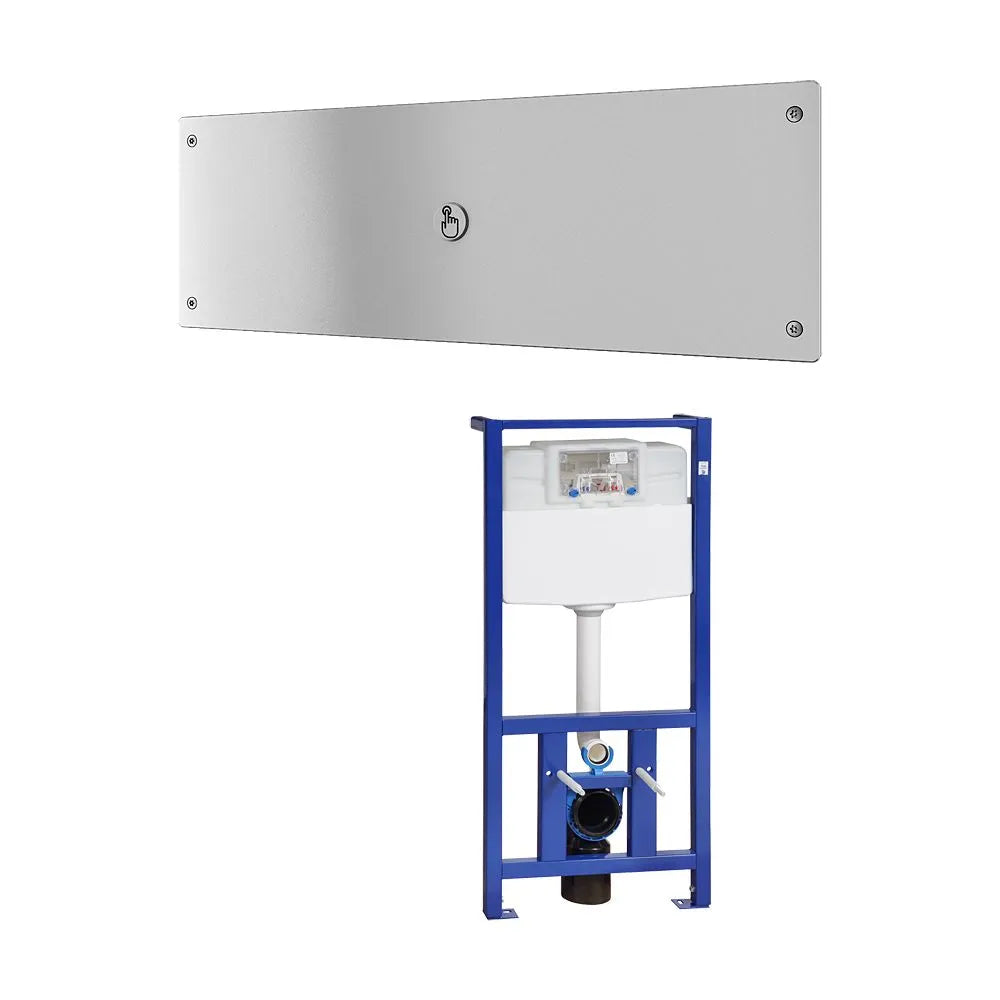

WC flush control, piezo-controlled, with cover and mounting frame

WC flush control, piezo-controlled, with cover and mounting frame

Awaiting stock, shipping soon
CHF 870.00
CHF 870.00
plus VAT | Shipping calculated at checkout.

Special B2B prices?

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

ASA-SLW 02PA

Downloads

Datasheet

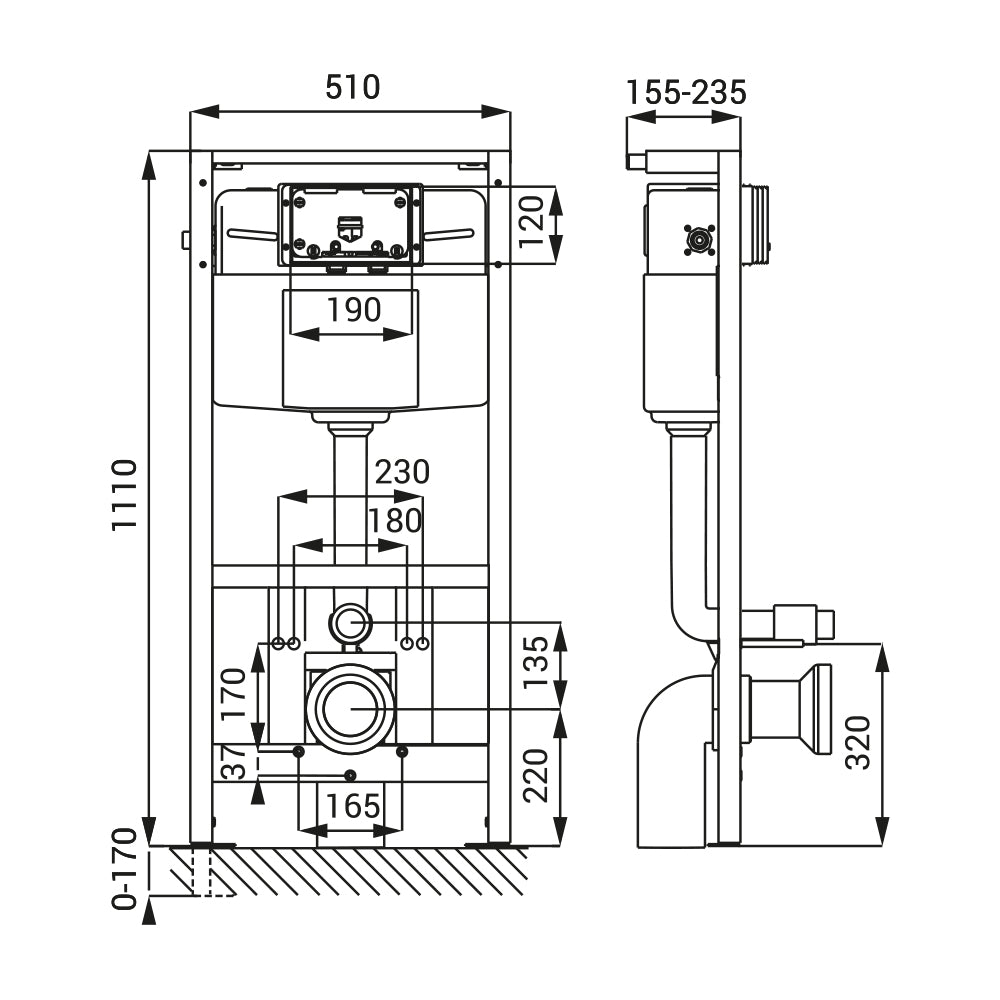

Technical Drawing
Assembly Instructions

Description

- Vandalism-proof design with special stainless steel cover plate (3 mm thick) and security screws
- Particularly suitable for prisons and high-security areas
- Piezo WC flushing unit with integrated mounting frame SLR 21
- Water inlet by light pressure on the piezo button
- Flushing time continuously adjustable from 0.5 to 15.5 seconds (factory set to 5 seconds)
- Automatic hygienic flush after eight toilet uses
- Automatic hygienic flush after 24 hours of non-use
- Usage parameters adjustable with optional remote control SLD 04
- Material: High-quality stainless steel for maximum durability and hygiene
- Operating voltage: 24 V DC

Technical details:
Flush type: Cistern in mounting frame
Material: Stainless steel
Operating voltage: 24 V DC
Control: Piezo-controlled
Dimensions of stainless steel cover plate: 500 x 170 x 3 mm
Recommended water pressure: 0.15 - 0.6 MPa
Water inlet: External thread G 1/2"
Water outlet: Water inlet with rubber seal

Scope of delivery: Stainless steel cover plate with piezo electronics, stainless steel solenoid valve housing, solenoid valve,
TORX security screws (4 pieces), mounting frame with built-in cistern SLR 21
