• ASA-SLS 02P

SANELA

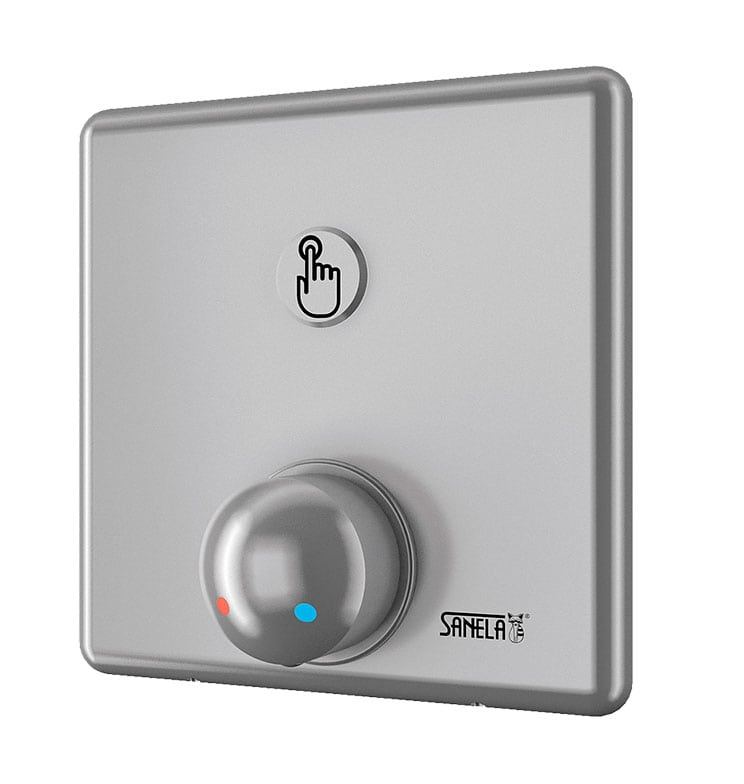

Concealed Shower Control with Thermostat, piezo-controlled, 24 V DC

Concealed Shower Control with Thermostat, piezo-controlled, 24 V DC

Awaiting stock, shipping soon
CHF 554.00
CHF 554.00
plus VAT | Shipping calculated at checkout.

Pay securely with

Twint PayPal Visa Maestro American Express Apple Pay Generic

ASA-SLS 02P

Downloads

Datasheet
Technical drawing
Assembly instructions

Product features

Connection
  • 3/4"

Water supply
  • Cold and hot water

How water works
  • electronically self-closing

power supply
  • 24V with transformer

material
  • stainless steel

Color
  • Stainless steel, matte/satin finish

Description

- hygienic flush
- vandalism-proof design
- concealed shower control with connection to cold and hot water, temperature regulation via mixer
- water flows after light pressure on the piezo button
- water flow ends automatically after a set time (adjustable from 10 s to 310 s), factory preset 120 s
- water flow ends with repeated light pressure on the piezo button
- usage parameters adjustable with remote control SLD 04

Technical details:
- Material: stainless steel
- Temperature regulation: with mixer
- Operating voltage: 24V DC
- Control: piezo
- Dimensions of stainless steel cover plate: 170 x 170 x 10 mm

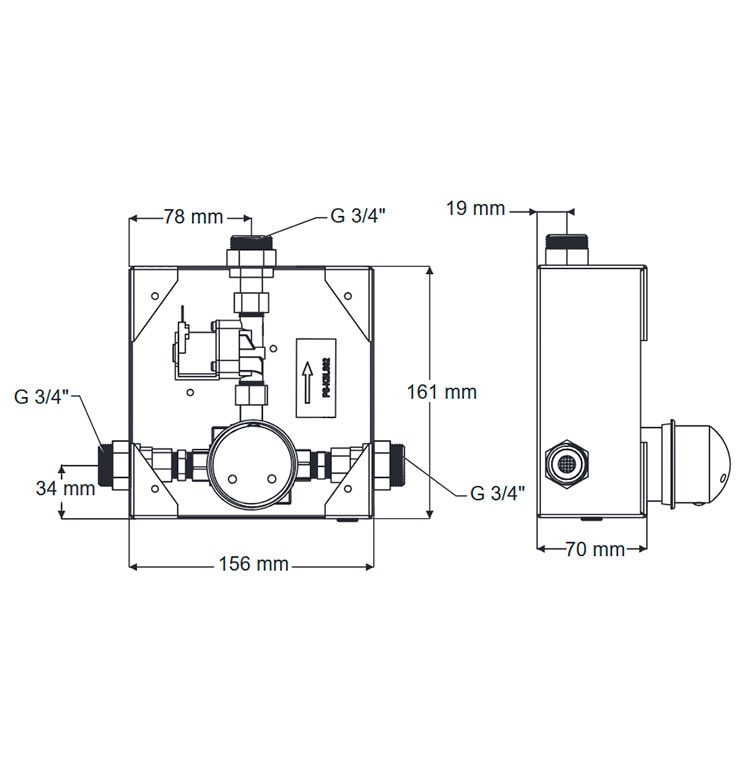

- Dimensions of concealed wall box: 155 x 160 x 70 mm
- Power consumption: 7 W
- Recommended water pressure: 0.1 - 0.6 MPa
- Flow rate: 12 l/min. (inf. Data)
- Water inlet: external thread G 3/4"
- Water outlet: external thread G 3/4"

Scope of delivery: stainless steel cover plate with electronics, stainless steel concealed wall box, solenoid valve, ball valve and mixer
