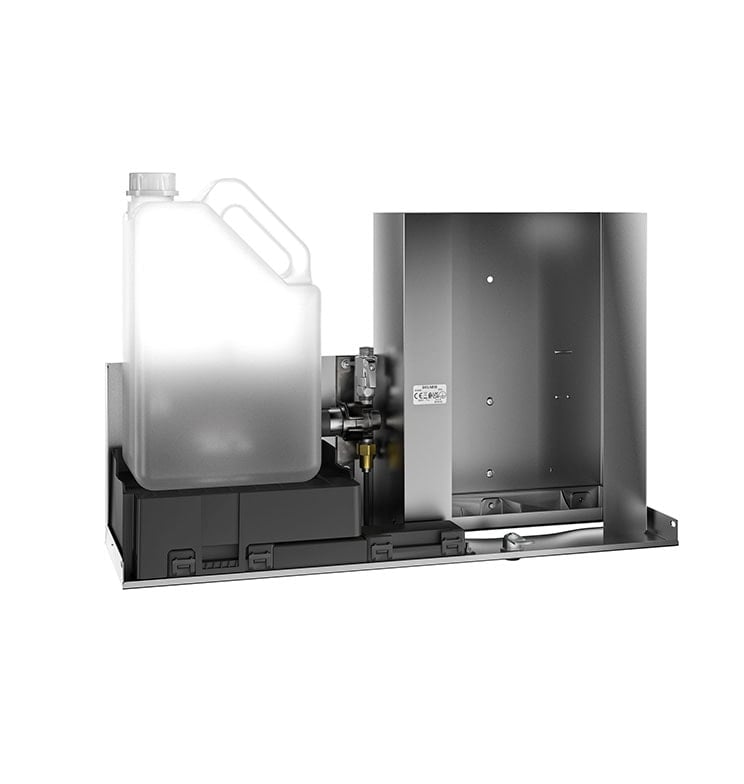

Module with 3 functions for concealed mounting

Module with 3 functions: electronic soap dispenser and valve, paper towel dispenser.
Touch-free operation for improved hygiene: soap dispenser and valve with automatic presence detection via infrared sensor.
Quick and easy installation:
- For concealed installation behind furniture. Fastening options at the side and rear. Frame made of stainless steel material 1.4301, material thickness 1.2 mm.
- One electronic connection for all functions: Mains operation 230 V~ / 50-60 Hz.
- Water connection G 3/8B.
- With stainless steel screws for solid wall or wood reinforcement.

Module with 3 functions:
Electronic soap dispenser:
- Low-waste dosing pump.
- Soap tank with large capacity: 5 litres.
- Suitable for vegetable-based liquid soap, maximum viscosity: 3,000 mPa.s or special foam soap.
Electronic watch table valve*:
- Dead space free solenoid valve.
- Flow rate 3 l/min.
- Low-scaling aerator.
- Hygiene flush (~60 seconds every 24 hours after the last use).
- Pre-barrier.
Paper towel dispenser:
- Single sheet removal system.
- Dimensions: 120 x 275 x 360 mm.
- Capacity: 500 sheets.

Stickers with pictograms included to indicate the location of the various functions on the mirror / piece of furniture: soap, water, hand drying.
Anti-vandalism version with lock and keyed alike DELABIE key.
Anti-lock safety: automatic switch-off in the event of uninterrupted use.

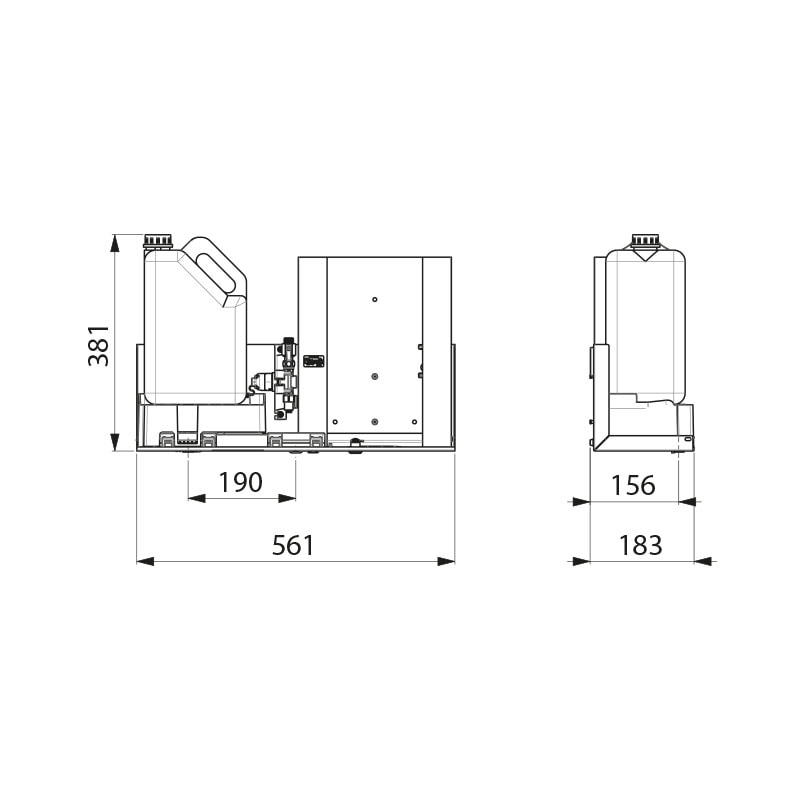

Dimensions: 561 x 183 x 381 mm.
Weight: 5 kg.
