Eye shower OCULUS II

OCULUS (emergency) eye shower. The eye shower is mounted on the wall and can be triggered by pressure. The bowl is also made of high-quality stainless steel. The surface is powder-coated in the colour green. The entire eye shower is frost-resistant.

  • Catch tray Ø 250 mm made of stainless steel material 1.4016 surface powder coated green.
  • Two spray heads with protective covers made of impact-resistant ABS green, which release automatically when water flows. Flow rate 20 l/min at 3 bar.
  • Two aerators with double stainless steel strainer.
  • Standard-compliant first-aid sign "Eye shower" included in delivery.
  • Tubes made of galvanised steel, surface powder-coated grey, manual actuator plate made of galvanised steel, surface powder-coated green.
  • Wall mounting by brass rosette (screws not included).
  • Water connection G 1/2B.
  • Quick opening/closing by nickel-plated brass valves with 1/4 turn.

To open the water flow, press the hand control plate. The eye shower does not close after releasing the hand control plate. To stop the water delivery, pull the hand control plate in the opposite direction.
Files and downloads:

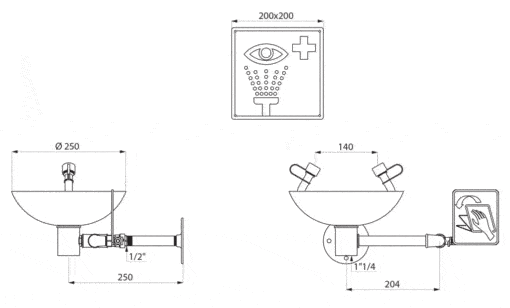

Technical drawing:

CHF 667.00 excl. VAT.

SKU: ADL-9102 Category:
