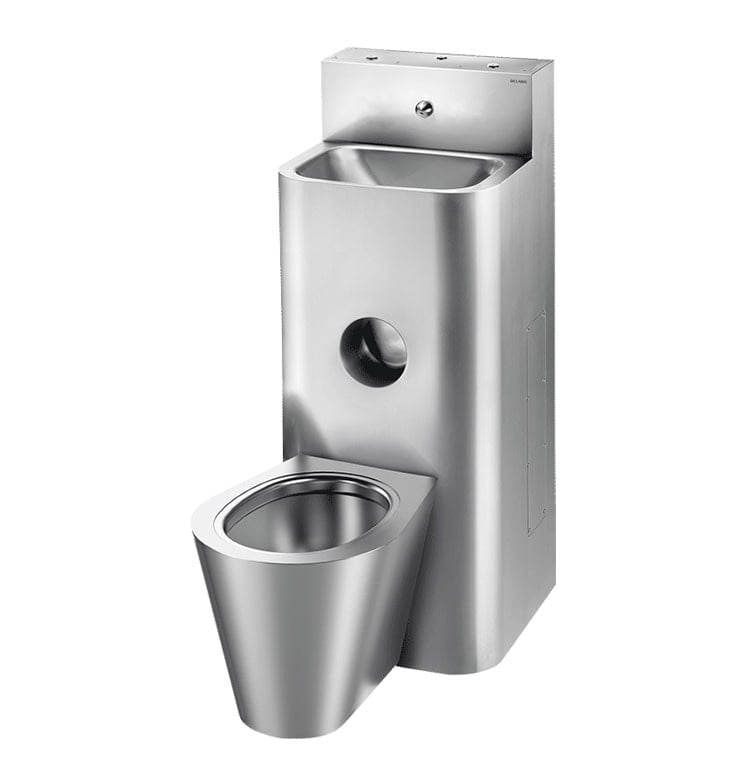

KOMPACT TW/TWW prison combination, with washbasin and floor-standing WC in the centre, stainless steel, pre-wall installation

Prison combination COMPACT TW/TWW

Prison combination with washbasin and floor-standing WC in the centre, with integrated WC paper roll compartment.
For pre-wall mounting via 3 inspection openings, 2 on the side and 1 on top, with TORX security screws.
Bacteriostatic stainless steel material 1.4301.
Satin finish.
Material thickness: 2 mm.
Corners and edges rounded for high user safety.
Smooth surface for easy cleaning.
Suitable for prisons, police headquarters etc.
WC completely welded to the enclosure body, not screwed: facilitates cleaning and protects against concealment of objects.
Washbasin with self-closing valve: vandal-resistant push button made of stainless steel with anti-blocking safety, running time 7 seconds, G 1/2B.
With 2 operating buttons TW/TWW.
WC with flush valve, flush time 7 seconds, G 3/4B.
Water connection: Washbasin G 1/2B, WC G 3/4B.
Outlet inside horizontal Ø 100 mm.
Washbasin siphon included in the scope of delivery.
Simple installation: only one drain for WC and washbasin, water-side and waste-water-side connections already pre-assembled.
Weight: 36 kg.
