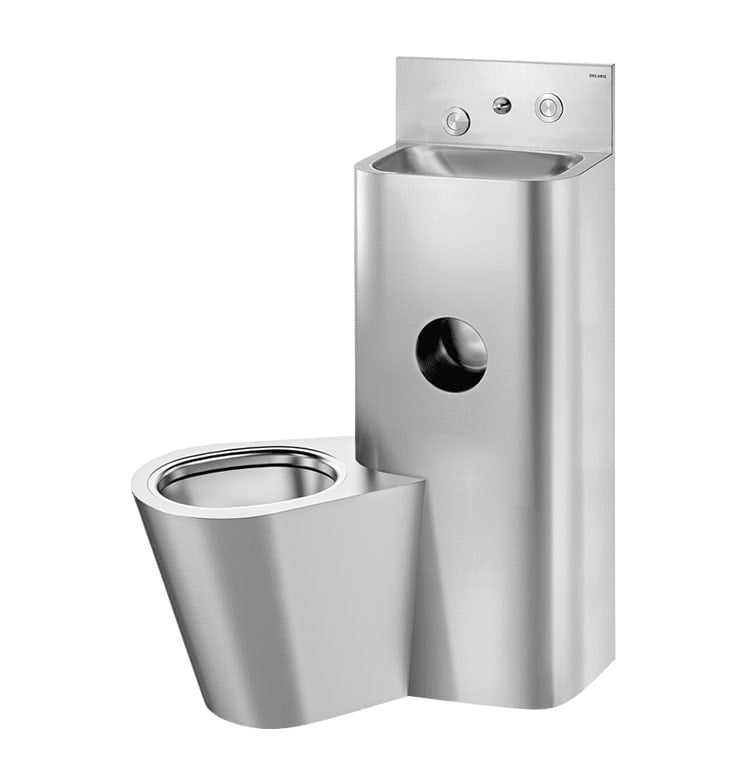

Prison combination KOMPACT TC, with washbasin and floor-standing WC left, stainless steel, rear wall installation

Prison combination COMPACT

Prison combination with washbasin and floor-standing WC on the left, with integrated WC paper roll compartment.
For rear wall mounting (requires accessible supply room).
Bacteriostatic stainless steel material 1.4301.
Satin finish.
Material thickness: 2 mm.
Corners and edges rounded for high user safety.
Smooth surface for easy cleaning.
Suitable for prisons, police headquarters etc.
WC completely welded to the enclosure body, not screwed: facilitates cleaning and protects against concealment of objects.
Washbasin with self-closing valve: vandal-resistant push button made of stainless steel with anti-blocking safety, running time 7 seconds, G 1/2B.
WC with flush valve, flush time 7 seconds, G 3/4B.
Water connection: Washbasin G 1/2B, WC G 3/4B.
Outlet inside horizontal Ø 100 mm.
Cut-to-size threaded rod 200 mm (other lengths on request).
Weight: 30 kg.
