WC flush with piezo anti-vandalism Armatron

WC flush control, piezo push-button, with vandalism-resistant cover, incl. mounting frame, ASA-SLW 02PA

WC flush control, piezo push-button, with vandalism-resistant cover, incl. mounting frame, ASA-SLW 02PA

2100 mm

WC control with PIEZO push-button

Vandalism-resistant design
Suitable for prisons
Special vandalism-resistant stainless steel cover plate, thickness 3 mm, security screws
Piezo WC flushing unit with mounting frame SLR 21
the water flows after light pressure on the piezo button
Flush time adjustable from 0.5 sec. to 15.5 sec., factory setting 5 sec.
Automatic hygiene flush after eight times of toilet use and automatic hygiene flush after 24 hours of non-use
Usage parameters adjustable with remote control (optional)

Scope of delivery

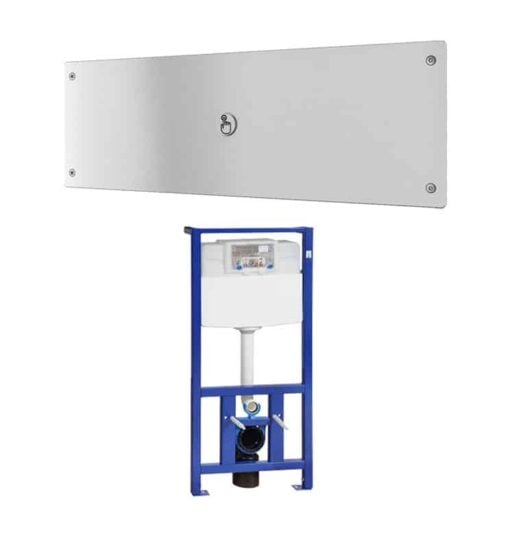

ASA-SLW 02PA - Stainless steel cover plate with piezo electronics, stainless steel electromagnet container, electromagnet, TORX safety screws (4 pcs.), mounting frame with built-in cistern SLR 21

technical information

Dimension stainless steel cover plate: 500 x 170 x 3 mm
Operating voltage: 24 V DC
Recommended water pressure: 0.15 - 0.6 MPa
Water inlet: male thread G 1/2"
Water outlet: water inlet with rubber seal
