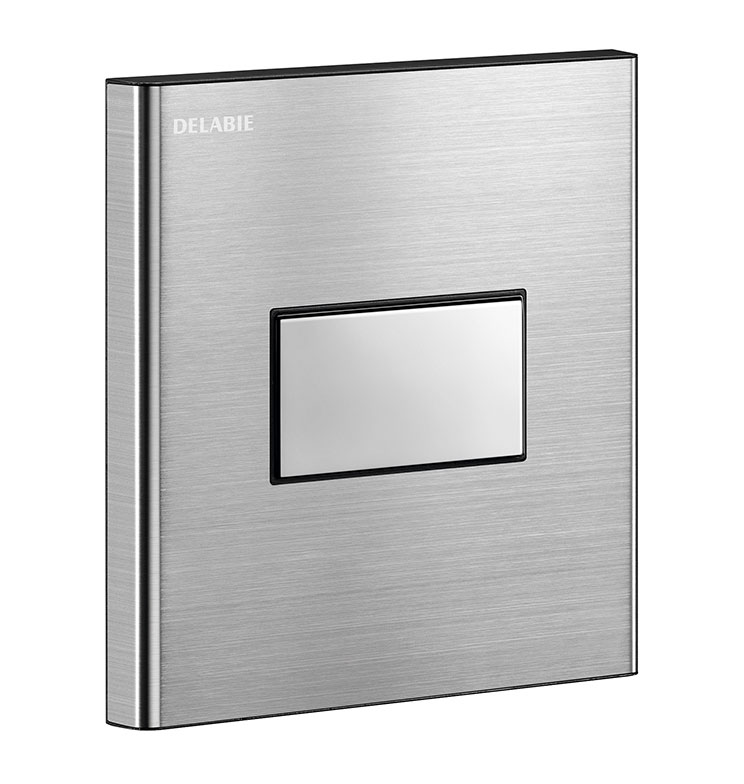

Flush plate and self-closing flush valve
TEMPOFLUX G 1/2, set 2/2 (prefabricated set):
Cover plate satinised stainless steel 145 x 145 mm.
Chrome-plated metal control element.
Particularly easy operation.
Flush time preset to ~7 seconds.
Flush volume preset to 0.15 l/sec. at 3 bar, adjustable up to 0.3 l/sec.
Suitable for salt, rain and grey water.
Complies with the requirements of the DIN EN 12541 standard (noise level class II).
Mounting in watertight box with flange
with integrated seal, protective filter and pre-shut-off.
Suitable for people with limited mobility.
30-year guarantee.
With installation system article number 543006 for urinals Ø 35,
Order 543006D for urinals with 1/2″ hose or with concealed box 778BOX.
Files and downloads:
Data sheet: | |

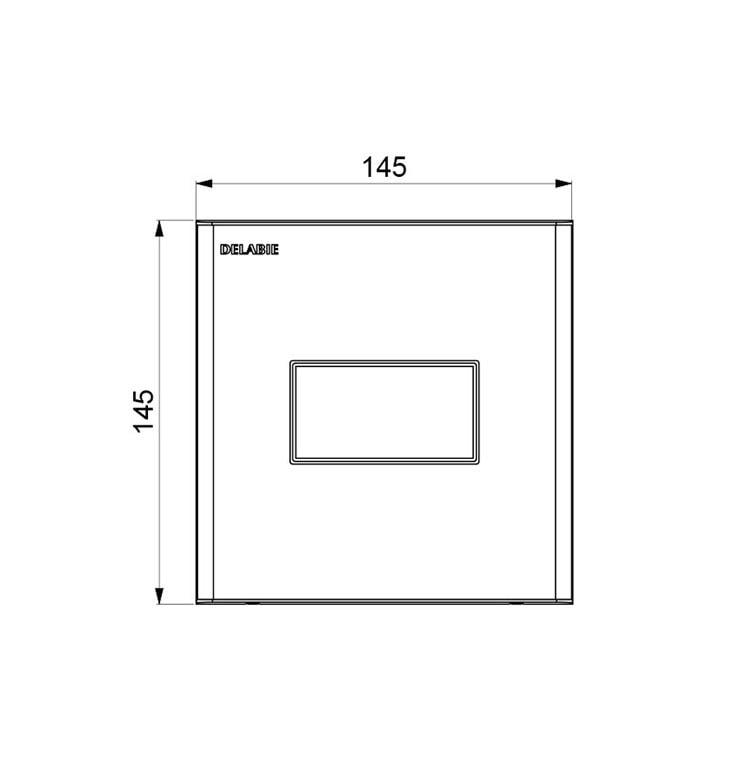

Technical drawing: |
