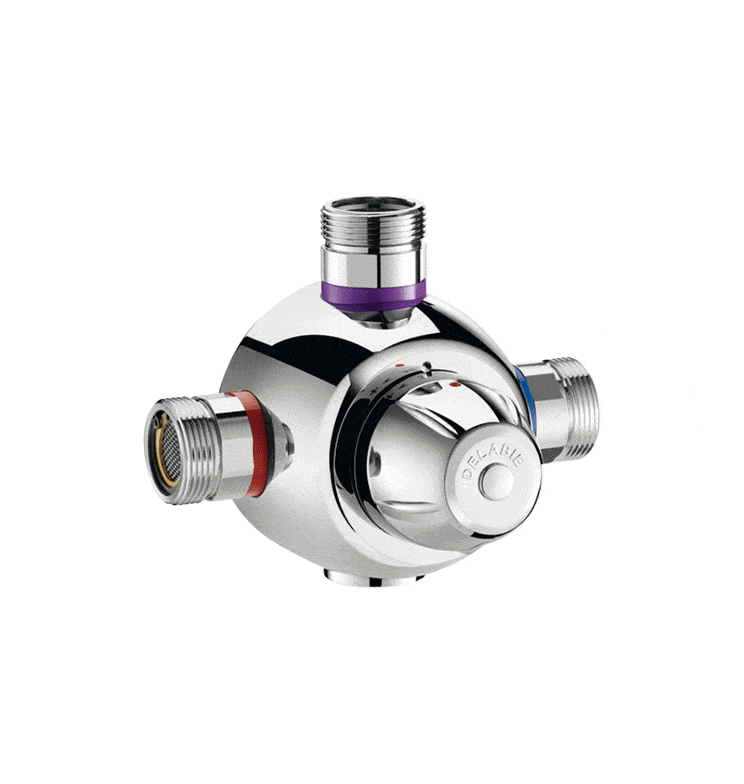

PREMIX COMFORT, group thermostat for mixed water from 32 to 42°, 731002**

Group thermostat for providing mixed water from 32° to 42°C:

• Scald protection.
• Compensation of temperature fluctuations.
• Backflow preventer and protective filter accessible from the outside without dismantling the mechanism.
• Thermal disinfection possible without special tools (release button on control element).
• Replaceable cartridge with thermostatic element.
• Body made of highly resistant DZR chrome-plated brass.
• Maximum hot water temperature: 85°C.
• Difference between warm and mixed water: at least 15°C.
• Differential supply pressures: max. 1 bar (recommended 0.5 bar).
• Min./max. operating pressure: 1 to 10 bar (recommended 1 to 5 bar).
• Supply of hot water on the left (red marking) and cold water on the right (blue marking).
• Outlet mixed water upwards (violet marking).
• For outlet downwards: Dismantle/replace mixed water outlet and blind plug.
• Maximum temperature limit adjustable by the installer.
• Limit the risk of scalding by reducing the temperature at the tapping points.
• 55 l/min - G 3/4B.
