Shower element SECURITHERM, self-closing with thermostat, connection from above, ADL-792303CF

SECURITHERM shower element - self-closing

Self-closing shower element with thermostat:
Housing made of satin stainless steel for surface mounting, large version.
Connection concealed with flexible hoses G 1/2B.
Thermostatic mixer tap SECURITHERM.
Temperature adjustable: cold water up to 38 °C;1st temperature stop at 38 °C, 2nd stop at 41 °C.
Scald protection: automatic closing in case of failure of the cold or hot water supply.
Suitable for thermal disinfection.
Particularly easy operation.
Running time ~30 sec.
Flow rate 10 l/min at 3 bar.
Shower head ROUND chrome-plated, protected against vandalism and low in limescale with automatic flow regulator.
Integrated soap dish.
With pre-shut-offs G 1/2B.
Concealed fixings.
With protective filters and backflow preventers.
Shower element suitable for people with limited mobility.


Files and downloads:

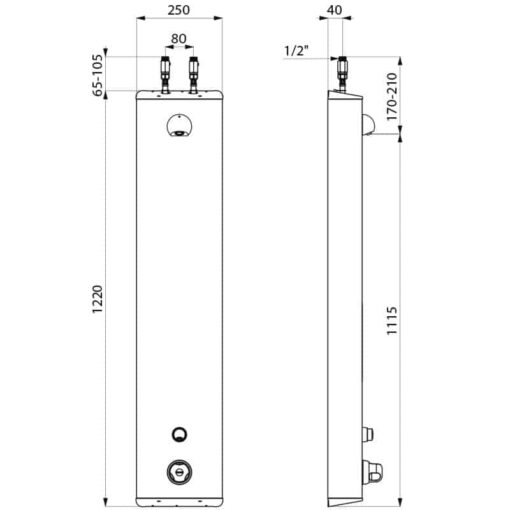

Technical drawing:

On request

Submit a request
SKU: ADL-792303CF Categories: , ,
