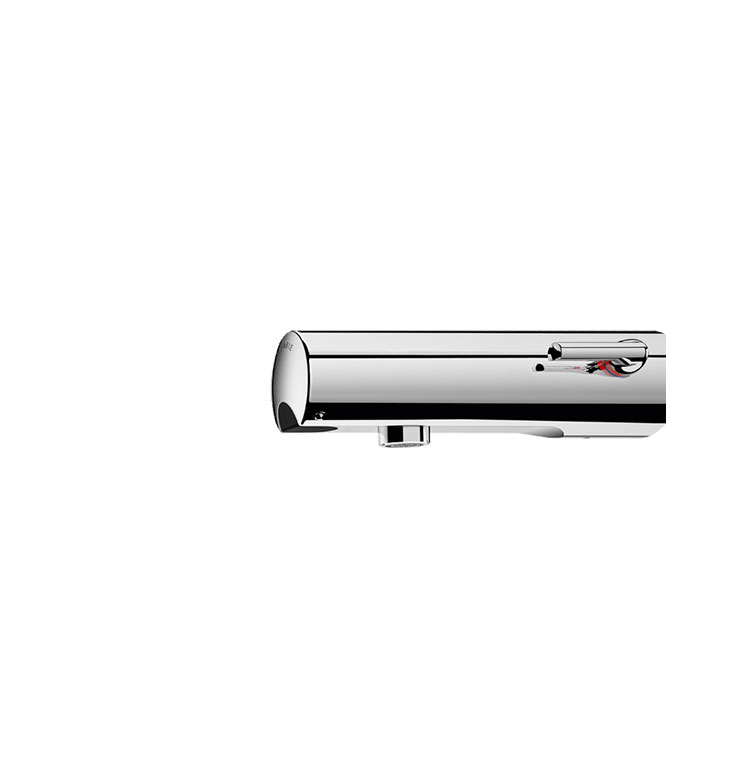

Electronic mixer tap TEMPOMATIC MIX 4, integrated batteries, rear panel

Electronic mixer tap

Electronic washbasin mixer for wall mounting:
Operation by integrated 6V lithium batteries type CR 17345.
Dead space-free solenoid valve and electronic module integrated in the fitting body.
Flow rate preset to 3 l/min at 3 bar, adjustable from 1.5 to 6 l/min.
Low-scaling aerator.
Hygiene rinse (~60 seconds every 24 h after last use).
Active infrared sensor with presence detection, optimised position at head end.

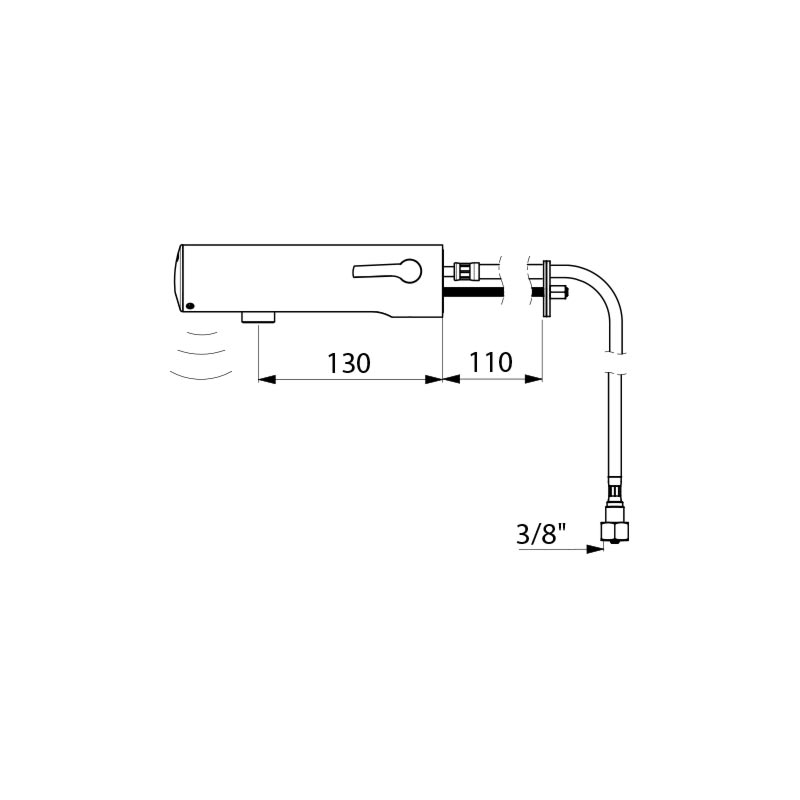

Chrome-plated metal body L. 130 mm.
Cover cap protected by 2 concealed fixings.
Pre-shut-offs G 3/8.
For rear wall mounting.
Anti-blocking security against run-through.
Side-mounted mixing lever with adjustable hot water limit.
Suitable for people with limited mobility.
