Electronic valve BINOPTIC, mains operation, anti-blocking safety device, high-gloss polished stainless steel, concealed mounting, l. 190 mm, ADL-370SBOX-370110

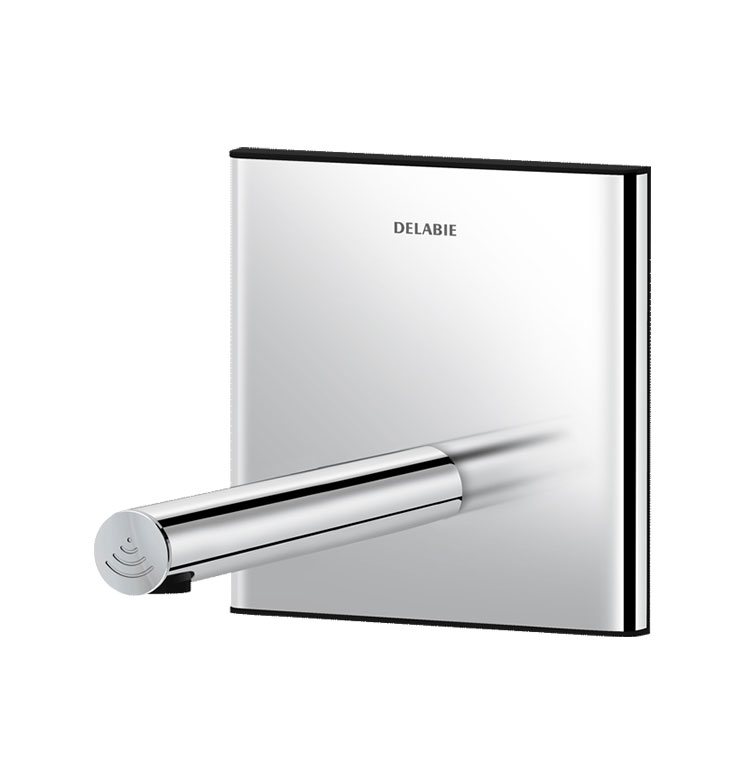

Electronic valve BINOPTIC

Electronic washbasin valve for concealed installation:
Mains operation 230/6 V (cable and transformer included).
Cover plate stainless steel high gloss polished 145 x 145 mm with integrated electronics.
Waterproof flush-mounted box:
- Flange with integrated seal.
- Flushing water connection outside the box and maintenance from the front.
- Flexible installation (stud wall, solid wall, panel).
- Suitable for wall thicknesses from 10 to 120 mm (the installation depth of the flush-mounted box is at least 83 mm).
- Adaptable to standard or "pipe-in-pipe" piping.
- Pre-shut-off with flow rate adjustment, protective filter and solenoid valve integrated and accessible from the front.
- Valve BINOPTIC G 1/2.
- Supplied in 2 parts: Components protected during flushing of the pipelines.
Flow rate preset to 3 l/min at 3 bar, adjustable from 1.5 to 6 l/min.
Low-scaling aerator.
Hygiene flush every 24 h (adjustable to 12 h or deactivated) after last use.
Active infrared sensor with presence detection, optimised position at head end.
Anti-blocking security against run-through.
Spout smooth inside and with low water volume (limits bacterial deposits).
Suitable for people with limited mobility.



Files and downloads:

DATA SHEET:

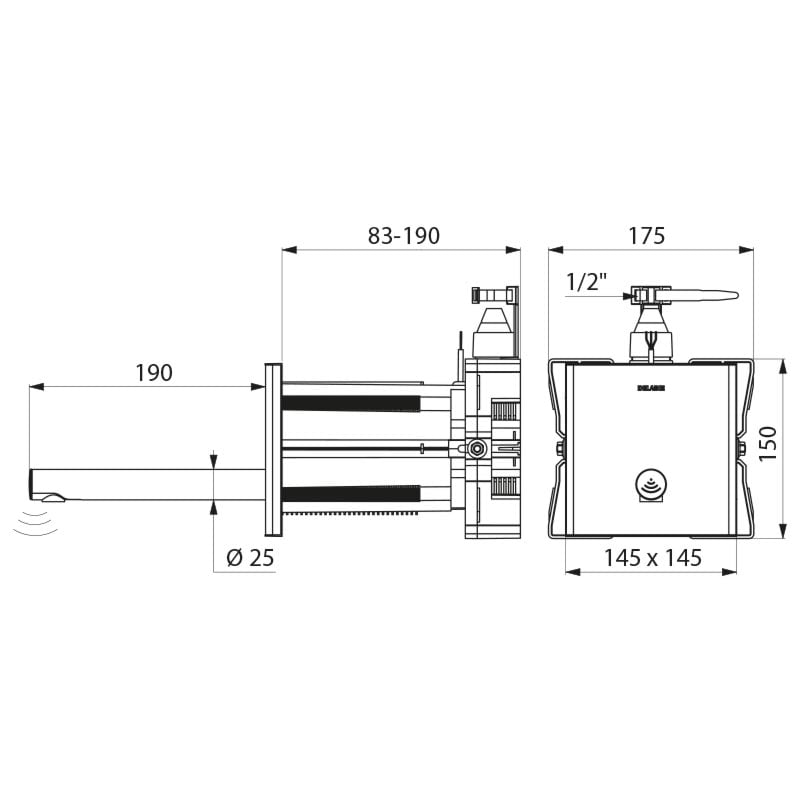

Technical drawing:

On request

Submit a request
SKU: ADL-370SBOX-370110 Categories: ,
