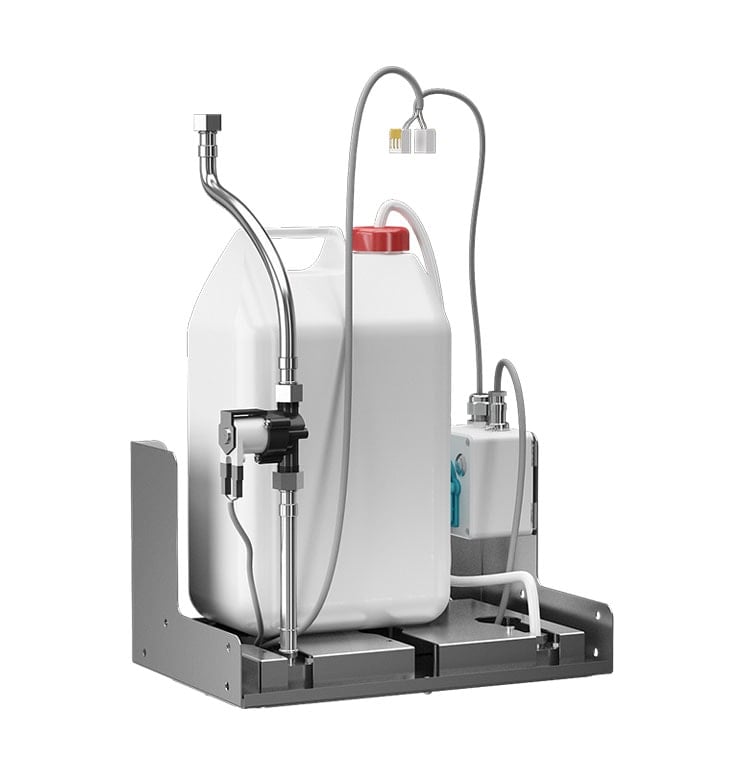

Valve for cold water and soap dispenser behind mirror Installation

Washbasin tap and soap dispenser behind mirror
Contactless release
Hygiene rinsing
Mixing nozzle, flow rate 6 l/min
Flush mounting behind the mirror
easy refilling of the soap
5 litre container for liquid soap
Soap dispensing time adjustable to 1.3 - 13 seconds (factory setting 2.6 seconds)
for soap with a viscosity of 10 mPa*s - 5000 mPa*s
Washbasin tap for cold or premixed water
Run-on time adjustable to 0.25 - 7.75 sec.
Forced shut-off of the water flow after approx. 5 minutes
START/STOP programme can be activated
Utilisation parameters adjustable with remote control SLD03 (optional)
Control: Sensor
Power supply: external power supply unit (not included)
Variant: Touchless tap with integrated soap dispenser
Volume: 5 litres
Water inlet: male thread G 1/2"

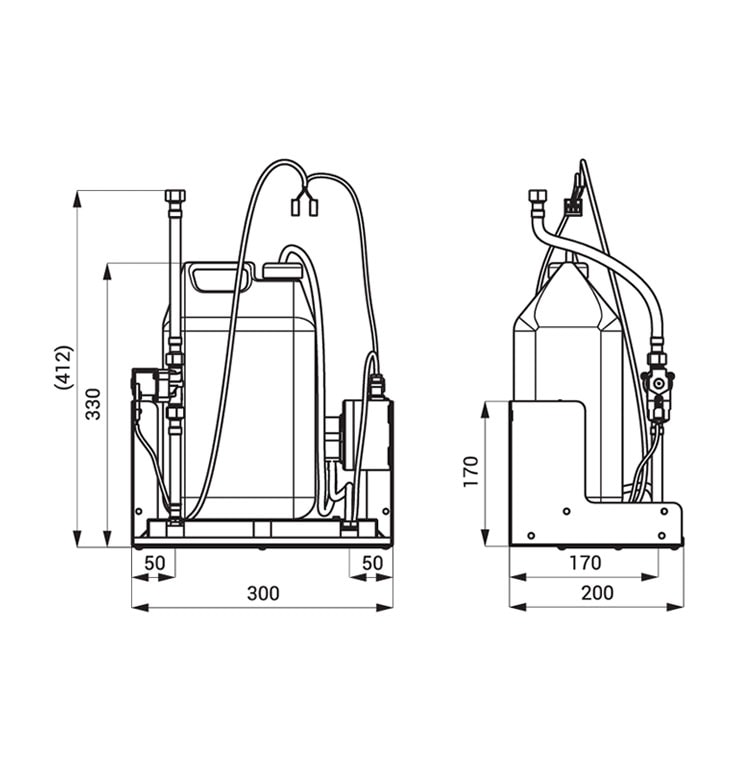

Width: 300 mm
Height: 355 mm
Depth: 200 mm
