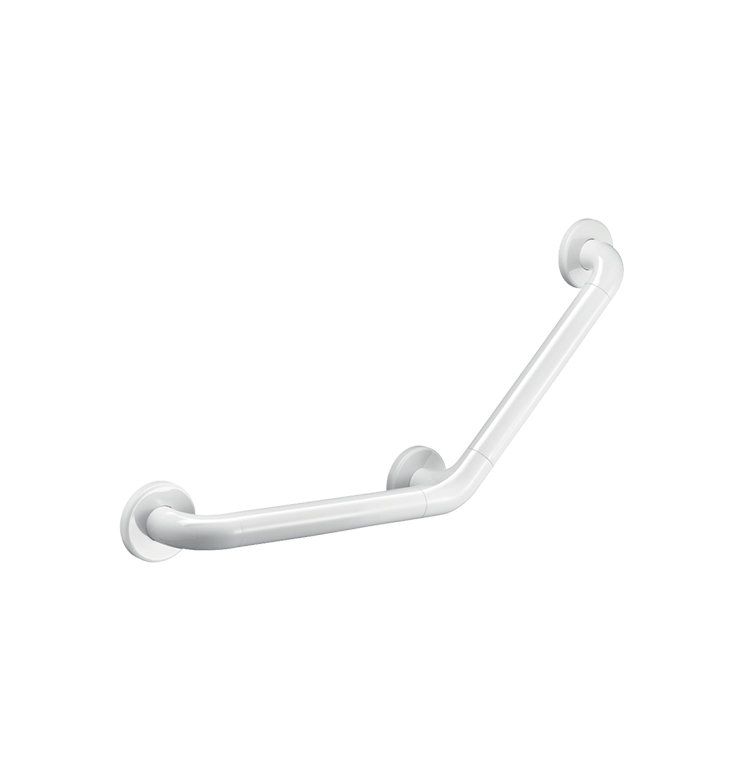

Angle handle 135°, Ø 32, 220 x 220 mm, high-resistance nylon glossy white, ADL-5083N.5

Angled handle 135° Ø 32, for users with limited mobility. Highly resistant nylon glossy white.

• Provides support (horizontal part) or help in raising (angled part 135°)for WC, shower or bath.
• Can be mounted on the left or right side.
• Dimensions: 220 x 220 mm.
• Suitable for intensive use in the public/commercial sector or in hospitals.
• High resistance polyamide (nylon) with anti-corrosion treated steel reinforcement 2 mm.
• Homogeneous non-porous surface for easier cleaning and better hygiene.
• Good resistance to chemicals and detergents. Anti-UV treatment.
• Pleasant and warm contact.
• 38 mm distance between handle and wall: minimal space requirement prevents pinching of the forearm and thus reduces the risk of bone fractures in case of falls.
• 3 attachment points prevent wrist slippage and facilitate installation.
• Concealed fixing by six-hole wall flange and rosette, Ø 73.
• Stainless steel screws for solid wall included.
• Tested to more than 200 kg. Recommended maximum weight of the user: 135 kg.
• CE marking

Advantages at a glance:

	handicapped accessible installation
	Tested to more than 200 kg
	38 mm distance to the wall: minimum space requirement
	Nylon HR: smooth, easy-to-clean surface
	Resistant to cleaning agents
