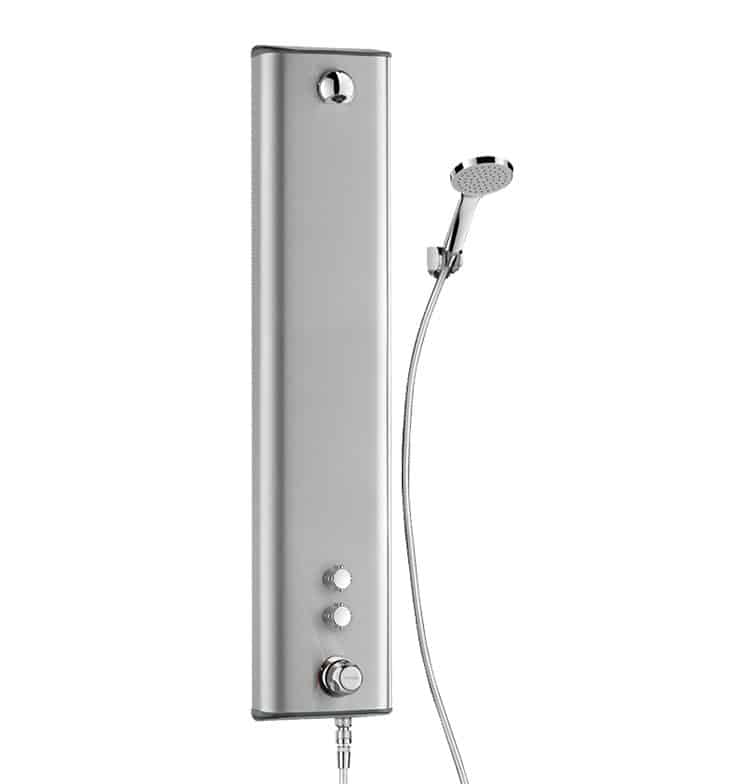

SECURITHERM shower element, mechanical with thermostat, concealed connection, ADL-792354CF

Shower element SECURITHERM - mechanical

Shower element with two top sections and thermostat:
Satin stainless steel housing for surface mounting, large version.
Connection concealed with flexible hoses G 1/2B.
Thermostatic mixer tap for SECURITHERM shower.
Temperature adjustable: Cold water up to 38 °C; 1st temperature stop at 38 °C, 2nd stop at 41 °C.
Scalding protection: automatic closing if the cold or hot water supply fails.
Fixed shower head ROUND chrome-plated, vandal-resistant and low-scaling with automatic flow rate regulator 10 l/min at 3 bar.
Hand shower with shower hose detachable using quick-release coupling with water stop, with wall bracket.
2 non-self-closing fittings for operating the fixed ROUND shower head and the hand shower.
Suitable for thermal disinfection
With pre-barriers.
Concealed fixings.
With protective filters and backflow preventers.

Files and downloads:
