KOMPACT prison combination, with washbasins and suspended WC, right

Prison unit, WC hanging, right

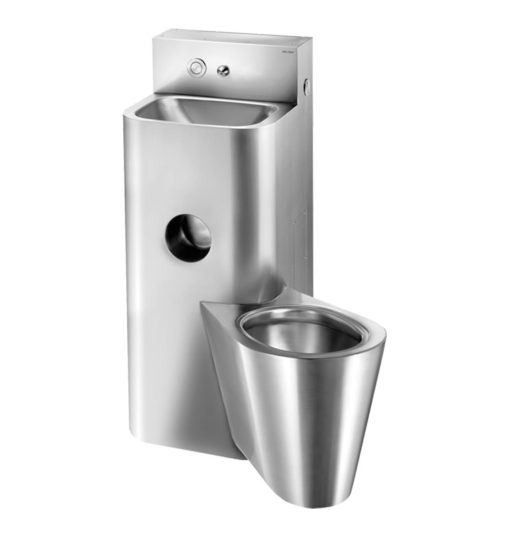

Prison combination with washbasin and suspended WC on the right, with integrated WC paper roll compartment.
For pre-wall mounting via 3 inspection openings, 2 at the side and 1 at the top, with TORX security screws.
Bacteriostatic stainless steel material 1.4301.
Satin finish.
Material thickness: 2 mm.
Corners and edges rounded for high user safety.
Smooth surface for easy cleaning.
Suitable for use in prisons, custody cells, etc.
WC completely welded to the enclosure body, not screwed: facilitates cleaning and protects against concealment of objects.
Washbasin with self-closing valve: vandal-resistant push button made of stainless steel with anti-blocking safety, running time 7 seconds, G 1/2B.
WC with flush valve, flush time 7 seconds, G 3/4B.
Water connection: Washbasin G 1/2B, WC G 3/4B.
Outlet inside horizontal Ø 100 mm.
Washbasin siphon included in the scope of delivery.
Simple installation: only one drain for WC and washbasin, water-side and waste-water-side connections already pre-assembled.
Weight: 36 kg.

Advantages at a glance:

Suitable for use in the security sector

Files and downloads::
